Product Details:
|
| Enclosure Type: | Rack-mountable - 1U | Ports: | 48 X 10/100/1000 + 4 X 1G SFP |
|---|---|---|---|
| Network Management Interface: | 10/100 Mbps Ethernet (RJ-45) | Available PoE Power: | 740W |
| Forwarding Bandwidth(Gbps): | 108Gbps | Maximum Stacking Number: | 8 |
| Warranty: | 1years | Lead Time: | Within 2 - 3 Days After Received Payment |
| Flash Memory: | 64 MB | RAM: | 256 MB |
| MAC Address Table Size: | 16K (default) | Console Ports: | USB (Type-B), Ethernet (RJ-45) |
| High Light: | WS-C2960X-48FPS-L,Cisco Catalyst 2960X Switch,48 Ports 2960 Cisco Switch |
||
Brand New Gigabit PoE 2960 Cisco Switch WS-C2960X-48FPS-L 48 Ports
Cisco Catalyst 2960X series 48 ports LAN Base stackable switch delivers Power over Ethernet Plus(PoE+) that supports up to 740W of PoE budget for 24 ports with 30W per port or 48 ports with 15.4W per port.

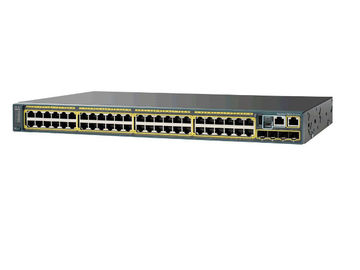

Figure 1 shows the appearance of Cisco WS-C2960X-48FPS-L switch.
Table 1 shows the Quick Specs.
|
||||||||||||||||||||||||||||||||
Figure 2 shows the front panel of Cisco WS-C2960X-48FPS-L switch.
Note:
| ① | Ethernet management port | ② | Mode button |
| ③ | FSwitch LEDs | ④ | USB mini-Type B (console) port |
| ⑤ | USB Type A ports | ⑥ | SFP module ports |
| ⑦ | 48 x 10/100/1000 ports |
* The console port is used with a console cable. The console cable is not delivered with the switch and needs to be separately purchased if needed.
*The ground screw is used with a ground cable.
* You can draw the ESN label out to view the ESN and MAC address of the switch.
Table 3 shows some accessories of WS-C2960X-48FPS-L.
|
