Product Details:
|
| Brand: | HUAWEI | PN: | S5700-28C-HI-24S |
|---|---|---|---|
| Ports: | 24 ×100/1,000 Base-X Ports | MAC Address Table: | 32 MAC |
| Shipment: | DHL,UPS,Fedex,TNT | Condiiton: | New With 1year Warranty |
| High Light: | gigabit network switch,huawei ethernet switches |
||

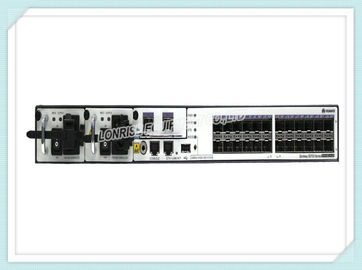

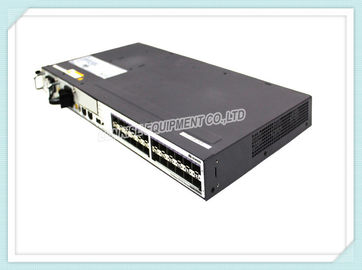

Huawei Network Switch S5700-28C-HI-24S 24 Gig SFP,with 1 interface slot,without power
The S5700-28C-HI-24S is advanced Ethernet switch based on new generation of high-performance hardware and Huawei Versatile Routing Platform (VRP). With 24 Base-T ports, it provides a large switching capacity, high-density GE interfaces for users, besides, it can be equipped with multiple types of card modules and power modules to meet the different demands of users. All these features make the S5700-28C-HI-24S the best choice as an access switch on large and medium-sized campus networks or data centers and aggregation switch on small campus networks. The S5700-28C-HI-24S integrates many advanced technologies in terms of reliability, security, and energy conservation in order to help enterprise customers build a next-generation IT network.
S5700-28C-HI-24S Specification |
|
| MAC address table |
IEEE 802.1d compliance MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses MAC address entries: |
| VLAN |
4K VLANs Guest VLAN and voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN Mapping SuperVLAN(supported by the S5700-SI/S5700-EI/S5700-HI series) |
| Ring protection |
RRPP ring topology and RRPP multi-instance Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover SEP ERPS(G.8032)(supported by the S5700-LI/S5700-SI/S5700-EI/S5700-HI series) STP, RSTP, and MSTP BPDU protection, root protection, and loop protection BPDU Tunnel |
| Reliability |
Ethernet OAM (IEEE 802.3ah and 802.1ag) ITU-Y.1731 DLDP LACP E-Trunk(supported by the S5700-SI/S5700-EI/S5700-HI series) BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM (supported by the S5700-EI/S5700-HI series) |
| MPLS features |
MPLS L3VPN MPLS L2VPN(VPWS/VPLS) MPLS-TE MPLS QoS Notes: supported by S5710-EI, S5700-HI and S5710-HI |
| IP routing |
Static routing RIPv1, RIPv2 and RIPng,ECMP(supported by the S5700-SI/S5700-EI/S5700-HI series) OSPF, OSPFv3, IS-IS, IS-ISv6, BGP and BGP4+ (supported by the S5700-EI/S5700-HI series) |
| IPv6 features |
Neighbor Discovery (ND) Path MTU (PMTU) IPv6 ping, IPv6 tracert, and IPv6 Telnet ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type MLD v1/v2 snooping 6to4 tunnel, ISATAP tunnel, and manually configured tunnel(supported by the S5700-SI/S5700-EI/S5700-HI series) |
| Multicast |
IGMP v1/v2/v3 snooping and IGMP fast leave Multicast forwarding in a VLAN and multicast replication between VLANs Multicast load balancing among member ports of a trunk Controllable multicast Port-based multicast traffic statistics IGMP v1/v2/v3, PIM-SM, PIM-DM, PIM-SSM, MSDP (supported by the S5700-EI/S5700-HI series) |
| QoS/ACL |
Rate limiting on packets sent and received by an interface Packet redirection Port-based traffic policing and two-rate three-color CAR Eight queues on each port WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms WRED (supported by the S5710-EI and S5700-HI) Re-marking of the 802.1p priority and DSCP priority Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID Rate limiting in each queue and traffic shaping on ports |
| Security |
User privilege management and password protection DoS attack defense, ARP attack defense, and ICMP attack defense Binding of the IP address, MAC address, interface, and VLAN Port isolation, port security, and sticky MAC MFF Blackhole MAC address entries Limit on the number of learned MAC addresses 802.1x authentication and limit on the number of users on an interface AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC SSH v2.0 Hypertext Transfer Protocol Secure (HTTPS) CPU defense Blacklist and whitelist |
| Access Security | DHCP Relay, DHCP Server, DHCP Snooping, DHCP Security |
| Management and maintenance |
Virtual cable test Port mirroring and RSPAN (remote port mirroring) Remote configuration and maintenance using Telnet SNMP v1/v2c/v3 RMON Web NMS HGMP System logs and alarms of different levels 802.3az EEE (supported by the S5700(S)-LI, S5710-EI, S5700-HI and S5710-HI) Dying gasp (supported by the S5700-HI, S5710-HI and S5700(S)-LI(except battery LAN switches) NetStream (supported by the S5710-EI, S5700-HI and S5710-HI) sFlow(supported by the S5700(S)-LI/S5700-EI/S5700-HI series) |
| Interoperability |
Supports VBST (Compatible with PVST/PVST+/RPVST) Supports LNP (Similar to DTP) Supports VCMP (Similar to VTP) |
| Operating environment |
Operating temperature: 0℃–50℃ Relative humidity: 10%–90% (non-condensing) |
| Input voltage |
AC: Rated voltage range: 100 V to 240 V AC, 50/60 Hz Maximum voltage range: 90 V to 264 V AC, 47/63 Hz DC: Rated voltage range: –48 V to –60 V, DC Maximum voltage range: –36 V to –72 V DC Note: PoE-support switches do not use DC power supplies. |
