Product Details:
|
| Model: | S5731S-S48T4X-A | Power Supply: | 600A AC, 1000W DC, 150W AC |
|---|---|---|---|
| Power Source Type: | 48 X PoE+ 10/100/1000BASE-T Ports， 4X10GE SFP+ Ports | Warranty: | 1year With New Condition |
| Condition: | 100% Original Brand | Shippment: | TNT,DHL,UPS, By AIR |
| High Light: | gigabit network switch,huawei ethernet switches |
||

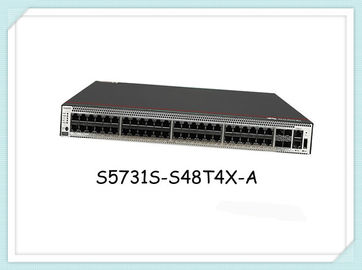

Huawei Network Switches S5731S-S48T4X-A
S5731S-S48T4X-A Overview
Huawei S5731S-S switch, 48 x 10/100/1000Base-T Ethernet ports, 4 x 10 Gig SFP+
Technical specifications
|
Item |
Description |
|---|---|
| Memory (RAM) | 4 GB |
| Flash | 1 GB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) | 55.31 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | Common mode: ±6 kV |
| Power supply surge protection |
|
| Dimensions (H x W x D) |
|
| Weight (with packaging) | 9.5 kg (20.94 lb) |
| Stack ports | 10GE SFP+ ports on the front panel |
| RTC | Supported |
| RPS | Not supported |
| PoE | Not supported |
| Rated voltage range |
|
| Maximum voltage range |
|
| Maximum power consumption (100% throughput, full speed of fans) | 124 W |
| Typical power consumption (30% of traffic load, tested according to ATIS standard) | 101 W |
| Operating temperature |
-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
NOTE:
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0°C (32°F). |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) | < 57.5 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification |
|
| Part number | 02353AJC |
Related Products
S5731S-S24T4X-A S5731S-S24P4X-A S5731S-S48P4X-A
