Product Details:
|

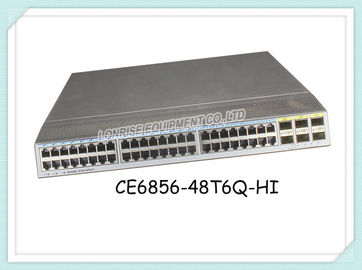

| Part Number: | CE6856-48T6Q-HI | Brand: | HUAWEI |
|---|---|---|---|
| Part Number: | 02351LVC | SFP+ Ports: | 48 X 10G RJ45 |
| QSFP+ Ports: | 6 X 40G | Condition: | New With 1Year Warranty |
| High Light: | huawei ethernet switches,huawei industrial switches |
||
Huawei CloudEngine 6800 (CE6800) series switches are next-generation 10G Ethernet switches designed for data centers and high-end campus networks. The switches provide high-performance, high-density 10GE ports, and low latency.
The CE6800 hardware has an advanced architectural design with 40GE uplink ports and the industry's highest density of 10GE access ports.
Using the Huawei VRP8 software platform, CE6800 switches provide extensive data center service features and high stacking capability. In addition, the airflow direction (front-to-back or back-to-front) can be changed. CE6800 switches can work with CE12800 switches to build an elastic, virtualized, high-quality fabric that meets the requirements of cloud-computing data centers.
CE6800 switches provide high-density 10GE access to help enterprises and carriers build a scalable data center network platform in the cloud computing era. They can also be used as aggregation or core switches for enterprise campus networks.
|
Item |
Description |
|
|---|---|---|
| Physical specifications |
|
|
| Environment parameters | Temperature |
|
| Relative humidity | 5% RH to 95% RH, noncondensing | |
| Altitude | < 5000 m (16404 ft.) | |
| Noise (sound pressure, 27°C) |
|
|
| Power specifications | Power source type | AC/DC/high-voltage DC |
| AC power input |
|
|
| DC power input |
|
|
| High-voltage DC power input |
|
|
| Rated input current |
|
|
| Chassis power consumption | Maximum power consumption | 346 W |
| Typical power consumption | 219 W (100% throughput, 3 m Ethernet cables on 48 ports and QSFP+ cables on 6 ports, double power modules) | |
| Chassis heat dissipation | Maximum heat dissipation | 1181 BTU/hr |
| Typical heat dissipation | 747 BTU/hr (100% throughput, 3 m Ethernet cables on 48 ports and QSFP+ cables on 6 ports, double power modules) | |
| Surge protection |
Ethernet electrical ports: 2 kV in common mode Power module:
|
|
| Heat dissipation | Heat dissipation mode | Air cooling |
| Airflow | Front-to-back or back-to-front, depending on the fan modules and power modules | |
| Reliability and availability | Power module backup | 1+1 backup |
| Fan module backup |
1+1 backup not supported |
|
| Hot swap | Supported by all power modules and fan modules | |
| Mean time between failures (MTBF) | 54.48 years | |
| Mean time to repair (MTTR) | 1.81 hours | |
| Availability | 0.99999620929 | |
| Technical specifications | Processor | 1.2 GHz, quad-core |
| DRAM Memory | 4 GB | |
| NOR Flash | 16 MB | |
| NAND Flash | 1 GB | |
| Stack | Service port supporting the stack function | 10GE electrical ports and 40GE optical ports |
| Certification |
|
|
Ordering information
|
Part Number |
Part Model |
Part Description |
|---|---|---|
| 02351LVC | CE6856-48T6Q-HI | CE6856-48T6Q-HI Switch (48-Port 10GE RJ45, 6-Port 40GE QSFP+, Without Power Module and FAN Box) |
| 02351YPR | CE6856-HI-F-B00 | CE6856-48T6Q-HI Switch (48-Port 10GE RJ45, 6-Port 40GE QSFP+, 2*AC Power Module, 2*FAN Box, Port-side Exhaust) |
| 02351YPQ | CE6856-HI-B-B00 | CE6856-48T6Q-HI Switch (48-Port 10GE RJ45, 6-Port 40GE QSFP+, 2*AC Power Module, 2*FAN Box, Port-side Intake) |
