Product Details:
|
| Product Part Number: | 02310WRR | Model: | CSFP-GE-FE-BXD2 |
|---|---|---|---|
| Product Category: | Optical Transceiver | Discount Category: | Optical Transceiver |
| Connector Type: | LC | Center Wavelength (nm): | Rx: 1310/Tx: 1490 |
| Warranty: | 1year With New Condition | ||
| High Light: | fiber optic sfp module,sfp optical module |
||

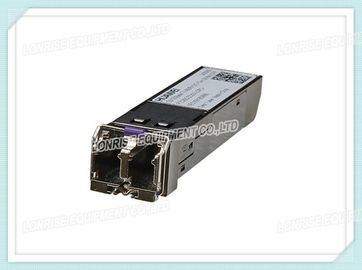

100/1000BASE-BX CSFP Optical Transceiver,CSFP,GE/FE,Single-mode Module(Tx1490/Rx1310nm,20km,LC)
2. Technical specifications
|
Item |
Description |
|---|---|
| Transceiver form factor | CSFP |
| Transmission speed | FE/GE auto-sensing |
| Center wavelength (nm) | Rx: 1310/Tx: 1490 |
| Standards compliance | Non-standard |
| Connector type | LC |
| Applicable cable and maximum transmission distance | Single-mode fiber: 20 km |
| Transmit power (dBm) | -9.0 to -3.0 |
| Maximum receiver sensitivity (dBm) | -23 |
| Overload power (dBm) | -3.0 |
| Extinction ratio (dB) | 6.6 |
| Operating temperature | 0°C to 70°C (32°F to 158°F) |
| Part number | 02310WRR |
