Product Details:
|
| Brand: | Cisco | Model: | AR0M12VWBA00 |
|---|---|---|---|
| LAN Ports: | 8 | WAN Ports: | 2 |
| Dimensions (W X D X H): | 390.0 Mm X 232.5 Mm X 44.5 Mm | Weight: | 2.9 Kg (6.39 Lb) |
| High Light: | huawei ethernet switches,huawei industrial switches |
||

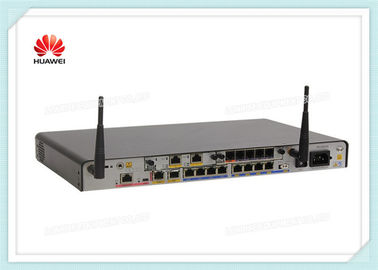

Huawei AR0M12VWBA00 is the small office or small and medium enterprises branch one router, providing both wired and wireless Internet access, access, PBX, integration of communication and security functions, widely deployed in small campus network export, small and medium enterprises headquarters or branch of the scene.
|
AR0M12VWBA00 Specification |
|
|
WAN speed with services*** |
200 Mbit/s |
|
Firewall Performance (large packet) |
900 Mbit/s |
|
Device Switching Capacity |
8 Gbit/s |
|
Slot Switching Bandwidth |
SIC & WSIC slots 2 Gbit/s |
|
Number of Recommended Users |
100 |
|
Fixed WAN Ports |
2 x GE |
|
Fixed LAN Ports |
8 x FE (can be configured as WAN interfaces) |
|
SIC Slots |
2 |
|
WSIC Slots (default/max) |
0/1 |
|
DSP Slots |
32 channels supported by default |
|
Wi-Fi |
802.11b/g/n |
|
USB 2.0 Ports |
2 |
|
Mini-USB Ports |
1 |
|
Serial Auxiliary/Console Port |
1 |
|
Memory |
512 MB |
|
Flash |
256 MB |
|
Max. Power |
60W |
|
PoE Power |
External 100W |
|
AC Power |
100V to 240V |
|
Frequency |
50 Hz/60 Hz |
|
DC Power |
- |
|
Dimensions (H x W x D) |
44.5 mm x 390 mm x 220 mm |
|
Weight |
2.9 kg (without interface cards) |
|
Ambient Temperature |
0°C to 45°C |
|
Relative Humidity |
5% to 95% (non-condensing) |
