Product Details:
|
| Brand: | HUAWEI | PN: | EH1BS9712E00 |
|---|---|---|---|
| Switching Capacity: | 8.64 Tbit/s; 18.56 Tbit/s | Packet Forwarding Rates: | 3,840 Mpps/6,480 Mpps |
| MPU Slots: | 2 | LPU Slots: | 12 |
| High Light: | huawei ethernet switches,huawei industrial switches |
||

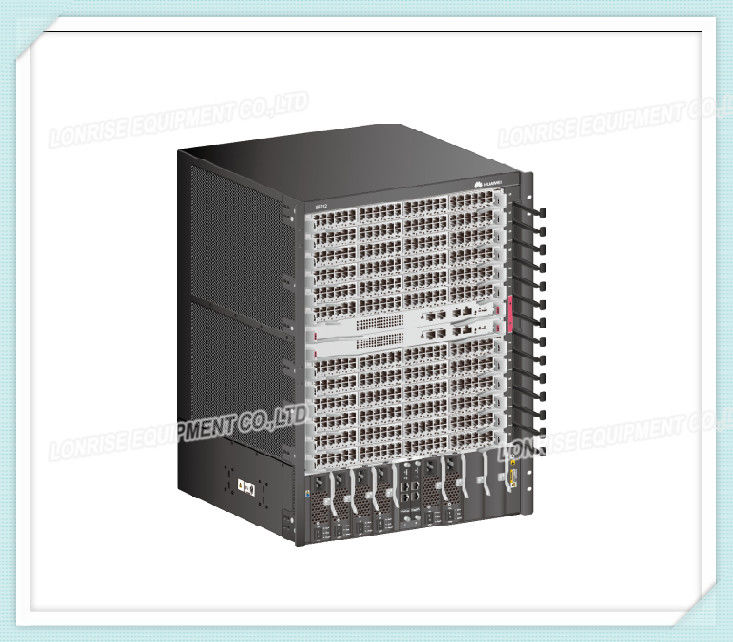

EH1BS9712E00 Huawei S9700 Series Switch S9712 Assembly Chassis 12 Slots
EH1BS9712E00 is the Huawei S9712 Switch assembly chassis, including 12 slots. The S9700 series terabit routing switches are high-end switches designed for next-generation campus networks and data centers to implement service aggregation.
EH1BS9712E00 Specifications |
|
| Switching Capacity | 8.64 Tbit/s; 18.56 Tbit/s |
| Packet Forwarding Rates | 3,840 Mpps/6,480 Mpps |
| Service Slots | 12 |
| Wireless Network Management | Native AC |
| AP access control, AP region management, and AP profile management | |
| Radio profile management, uniform static configuration, and centralized dynamic management | |
| Basic WLAN services, QoS, security, and user management | |
| User Management | Unified user management |
| 802.1x, MAC address, and Portal authentication | |
| Traffic- and time-based accounting | |
| User authorization based on user groups, domains, and time ranges | |
| iPCA Quality Awareness | Marking real service packets to obtain real-time count of dropped packets and packet loss ratio |
| Counting number of dropped packets and packet loss ratio on devices and L2/L3 networks | |
| SVF Virtualization | Virtualizing Access Switches (ASs) and APs into one logical device to simplify management and maintenance |
| Two layers of ASs allowed in an SVF system | |
| Third-party devices allowed between SVF parent and clients | |
| VLAN | Access, trunk, and hybrid interfaces supported |
| Default VLAN | |
| VLAN switching | |
| QinQ and selective QinQ | |
| MAC address-based VLAN assignment | |
| MAC Address | Automatic learning and aging of MAC addresses |
| Static, dynamic, and blackhole MAC address entries | |
| Packet filtering based on source MAC addresses | |
| MAC address limiting based on ports and VLANs | |
| STP/ERPS | STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) |
| BPDU protection, root protection, and loop protection | |
| BPDU tunnel | |
| ERPS (G.8032) | |
| IP Routing | IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS |
| IPv6 dynamic routing protocols, such as, RIPng, OSPFv3, ISISv6, and BGP4+ | |
| Multicast | IGMP v1/v2/v3, IGMP v1/v2/v3 snooping |
| PIM-SM, PIM-DM, PIM-SSM | |
| MSDP, MBGP | |
| Fast leave | |
| Multicast traffic control | |
| Multicast querier | |
| Multicast protocol packet suppression | |
| Multicast CAC | |
| Multicast ACL | |
| MPLS | MPLS functions |
| MPLS OAM | |
| MPLS TE | |
| Supports MPLS VPN/VLL/VPLS | |
| Reliability | LACP and E-Trunk |
| VRRP and BFD for VRRP | |
| BFD for BGP/IS-IS/OSPF/static route | |
| NSR, NSF, and GR for BGP/IS-IS/OSPF/LDP | |
| TE FRR and IP FRR | |
| Ethernet OAM (IEEE 802.3ah and 802.1ag) (hardware-based) | |
| HSR | |
| ITU-Y.1731 | |
| DLDP | |
| QoS | Traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4 protocols, and 802.1p priority |
| Actions of ACL, CAR, re-mark, and schedule | |
| Queue scheduling algorithms, such as SP, WRR, DRR, SP + WRR, and SP + DRR | |
| Congestion avoidance mechanisms, such as WRED and tail drop | |
| H-QoS | |
| Traffic shaping | |
| Network Synchronization | Ethernet synchronization |
| 1588v2 | |
| Configuration and Maintenance | Console, Telnet, and SSH login |
| Network management protocols, such as SNMP v1/v2/v3 | |
| File uploading and downloading using FTP and TFTP | |
| BootROM upgrade and remote upgrade | |
| Hot patches | |
| User operation logs | |
| Security and Management | 802.1x authentication and portal authentication |
| MACsec | |
| NAC | |
| RADIUS and HWTACACS authentication for login users | |
| Command line authority control based on user levels, preventing unauthorized users from using commands | |
| Defense against DoS attacks, TCP SYN Flood attacks, UDP Flood attacks, broadcast storms, and heavy traffic attacks | |
| 1K CPU queues | |
| Ping and traceroute functions based on ICMP packets | |
| Supports remote network monitoring | |
| Value-added Services | Firewall |
| NAT | |
| NetStream | |
| IPSec | |
| Load balancing | |
| Wireless AC | |
| IPS | |
| Interoperability | Interoperable with VBST (compatible with PVST/PVST+/RPVST) |
| Interoperable with LNP (similar to DTP) | |
| Interoperable with VCMP (similar to VTP) | |
| Energy Saving | Supports IEEE 802.3az: Energy Efficient Ethernet (EEE) |
| Dimensions (H x W x D) | 663.95 mm x 442 mm x 489 mm, 15U |
| Chassis Weight (empty) | 37 kg |
| Operating Voltage | DC: –40V to –72V AC: 90V to 290V |
| Equipment Power Supply Capability | 6,600W |
