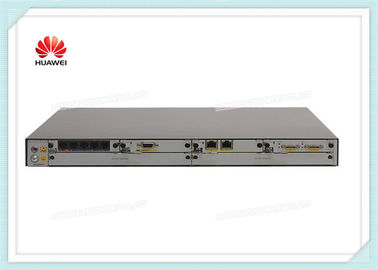

Huawei AR6100 Series Enterprise Routers AR6120 1*GE WAN 1*GE Combo WAN 1*10GE SFP+ 8*GE LAN 2*USB 2*SIC

Huawei AR6100 Series Enterprise Routers AR6120 1*GE WAN 1*GE Combo WAN 1*10GE SFP+ 8*GE LAN 2*USB 2*SIC
Huawei AR6100 Series Enterprise Routers AR6120 1*GE WAN 1*GE Combo WAN 1*10GE SFP+ 8*GE LAN 2*USB 2*SIC

Large Image :  Huawei AR6100 Series Enterprise Routers AR6120 1*GE WAN 1*GE Combo WAN 1*10GE SFP+ 8*GE LAN 2*USB 2*SIC

Product Details:
Place of Origin: China
Brand Name: Cisco
Certification: CE
Model Number: AR6120
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: New in box
Delivery Time: 1~2 days
Payment Terms: Western Union, Paypal,T/T
Supply Ability: 1000 Pcs /Month

Huawei AR6100 Series Enterprise Routers AR6120 1*GE WAN 1*GE Combo WAN 1*10GE SFP+ 8*GE LAN 2*USB 2*SIC

Description
Brand: Cisco Parts Number: AR6120
Memory: 2 GB Flash Memory: 1 GB/ 512MB
High Light:

cisco ethernet router

,

cisco network router

Huawei AR6100 Series Enterprise Routers AR6120,1*GE WAN,1*GE combo WAN,1*10GE SFP+,8*GE LAN,2*USB,2*SIC



AR6120 Overview

Huawei's next-generation NetEngine AR6000 series enterprise routers use high-performance multi-core processors and a nonblocking switching structure, helping to deliver higher forwarding performance than the industry average. The NetEngine AR6000 also integrates functions such as SD-WAN, routing, switching, VPN, security, and MPLS, ensuring diversified and cloud-based services are fully supported.



Huawei AR6100 Series Enterprise Routers AR6120 1*GE WAN 1*GE Combo WAN 1*10GE SFP+ 8*GE LAN 2*USB 2*SIC 0

AR6120 Specification



AR6120 Specification

System Parameters

Processor

4-Core

Forwarding Performance (LAN - > WAN + WAN - > LAN,NAT + ACL + QoS,IMIX)

2 Gbps

IPsec performance (IMIX)

2 Gbps

Fixed WAN ports

1 x GE combo + 1 x GE RJ45 + 1 x 10GE SFP+ (compatible with GE SFP)

Fixed LAN ports

8 x GE RJ45 (can be configured as WAN)

SIC slots

2

WSIC slots

0 (default)/1(maximum)

XSIC slots



USB port



1 x USB 3.0 (compatible with USB 2.0) + 1 x USB 2.0

Auxiliary or console port

1 x RJ45 console port

Memory

2 GB

Flash memory

1 GB/ 512MB*

Hot swapping

Supported

*Note: For AR6120, the chipset of flash is 1GB, and 512MB is used for the users.

Dimensions and Weight

Router dimensions,With no mounting bracket installed (H x W x D)

44.5mm × 390mm × 232.5mm



Router dimensions,With mounting bracket installed (H x W x D)

44.5mm × 482.6mm × 232.5mm

Packaging dimensions (H x W x D)

125 mm x 373 mm x 510 mm

Rack

IEC

Occupied rack space

1U

Power Specifications, Power Consumption, and Heat Dissipation

Rated input voltage range (AC)

100 V to 240 V

Rated input frequency (AC)

50 Hz/60 Hz

Maximum input voltage range (AC)

90 V to 264 V

Maximum input current (AC)

2 A

Maximum output power (AC)

60 W

Power supply redundancy



Typical power consumption

18W

Maximum power consumption

20W

Fan module

Built-in unpluggable fan modules

Airflow

Left to right

Noise level

49.6 dB

Environment Parameters

Operating temperature

0ºC to 45ºC

Operating humidity

5% to 95% (non-condensing)

Operating altitude

< 5000 m (16404.2 ft.)

Storage temperature

40ºC to +70ºC

Storage altitude

< 5000 m (16404.2 ft.)

Software Features and Protocols

Basic function



DHCP server/client/relay, PPPoE server/client, NAT, and sub-interface management

LAN

IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, VLAN aggregation, MAC management, STP

WLAN (AC)



AP management (AC discovery, AP access, and AP management), CAPWAP, WLAN user

management, WLAN radio management (802.11a/b/g/n/ac), WLAN QoS (WMM), WLAN security (WEP, WPA, WPA2, key management)

IPv4 unicast routing

Routing policies, static routes, RIP, OSPF, IS-IS, BGP

IPv6 unicast routing



Static routes, routing policies, RIPng, OSPFv3, IS-ISv6, BGP4+

Basic IPv6 function



IPv6 ND, IPv6 PMTU, IPv6 FIB, IPv6 ACL, ICMPv6, DNSv6, DHCPv6

IPv6 tunneling

Manual tunnel, automatic tunnel, GRE tunnel, IPv6 over IPv4 tunnel, 6 to 4 tunnel, ISATAP

Multicast



IGMP v1/v2/v3, PIM-SM, PIM-DM, MSDP, MBGP, IPv6 PIM, MLD

MPLS

LDP, MPLS L3 VPN, VLL, PWE3, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP FRR, TE FRR

VPN

IPsec VPN, GRE VPN, DSVPN, A2A VPN, L2TP VPN, L2TPv3 VPN

QoS



DiffServ mode, MPLS QoS, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance, congestion management, MQC (traffic classifier, traffic behavior, and traffic policy),

hierarchical QoS, Smart Application Control (SAC)

Security



ACL (v4/v6), domain-based stateful firewall, 802.1X authentication, MAC address authentication,portal authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, PKI,broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR, blacklist, attack source tracing, online behavior management, IPS, URL filtering

Management and maintenance



Upgrade management, device management, web-based network management, GTL, SNMP

(v1/v2c/v3), RMON, NTP, CWMP, Auto-Config, URL-based/USB-based/DHCP deployment,

NETCONF/YANG, CLI, NetStream, IP FPM, TCP FPM, TWAMP, IP accounting, NQA

Safety and Regulatory Standards

EMC standards compliance



CISPR32 Class A

EN 55032 Class A

CISPR24

EN 55024

ETSI EN 300 386

AS/NZS CISPR32 Class A

FCC Part 15 Subpart B Class A

ICES 003 Class A

IEC 61000-3-2

EN 61000-3-2

IEC 61000-3-3

EN 61000-3-3

GB 9254

VCCI-CISPR32 Class A

Environmental standards compliance



RoHS

REACH

WEEE

Safety standards compliance





IEC 60950-1

EN 60950-1

UL 60950-1

CSA C22.2 No 60950-1

GB 4943.1
