Product Details:
|
| Brand: | Cisco | Parts Number: | NECM00HSDN00 |
|---|---|---|---|
| Forwarding Capacity: | 88 Gbit/s | Power Module Type: | AC Power Module |
| High Light: | huawei ethernet switches,huawei industrial switches |
||

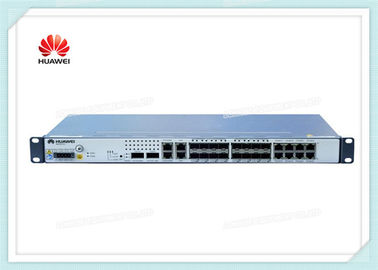

Huawei NetEngine series Mid-range Service router NECM00HSDN00 NE05E-SE delivers 44Gbps System capacity,2 * 10Gigabit Ethernet XFP ports,16 * GE/FE optical prots,8 * Gigabit Ethernet ports. NetEngine05E series router is cloud service architecture design oriented, large cache to ensure the best service experience and to help transportation, finance, power, government, education, enterprise to build agile networks, which can be flexibly applied to IP/MPLS network edge access scenarios and meet the diverse needs of users for future business development.
The NE05E router supports innovative IP hard pipe technology, providing high-quality IP leased line solutions through hardware strict isolation to ensure that bandwidth of hard pipe is not to be seize, to achieve rigid pipe similar to SDH, while using detection technology to achieve flow level service quality perceived through the network and traffic provides graphical display, real-time monitoring of business operating conditions, IP line service can be controllable, manageable and visible.
|
NECM00HSDN00 Specification |
|
|
Forwarding Capacity (IPv4/IPv6) |
88 Gbit/s |
|
Forwarding Capability (IMIX) |
37.2 Mpps |
|
Interfaces |
SE: 2 x 10 GE + 16 GE/FE(O) + 8 x GE/FE(E) |
|
Clock |
1588 V2, ACR, E1 line clock, and sync clock |
|
Power COM |
SE: 49.8W |
|
Voltage |
-38.4V to -72V DC 100V to 240V AC |
|
Slots |
0 |
|
Dimensions (H x W x D) |
44.45 mm x 442 mm x 220 mm (1U) |
|
Weight |
3 kg |
|
Operating Temperature |
-40°C to 65°C |
|
Humidity |
5% RH to 95% RH, non-condensing |
Compare to Similar Items
Table 2 shows the comparison between NECM00HSDN00 and NECM00HOST06.
|
Model |
NECM00HSDN00 |
|
|
Forwarding Capacity |
88 Gbit/s |
24 Gbit/s |
|
Forwarding Capability (IMIX) |
37.2 Mpps |
17.85 Mpps |
|
Interfaces |
SE: 2 x 10 GE + 16 GE/FE(O) + 8 x GE/FE(E) SF: 2 x 10 GE + 8 GE/FE(O) + 8 x GE/FE(E) + 2 x 8 E1 |
10 GE/GE/FE, Smart E1/T1, Channelize STM-1, GPON, XDSL, RS232, RS485, FXO, FSO, E&M, and X.21/V.35/X.24, etc. |
|
Slots |
none |
1 MPU 2 FICs |
|
Weight |
3 kg |
4.8 kg |
|
Dimensions (W x D x H) |
44.45 mm x 442 mm x 220 mm (1U) |
44.45 mm x 442 mm x 220 mm (1U) |
