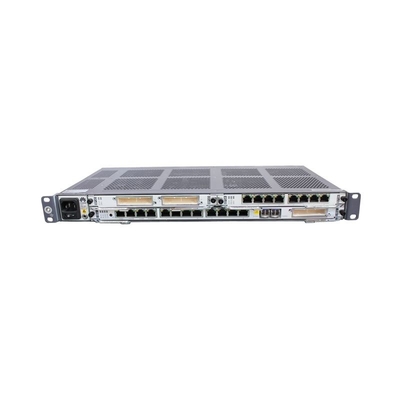

Huawei OptiX OSN 500 Opitcal Transmission Equipment 3 Slots FE/GE Ethernet Interface

Huawei OptiX OSN 500 Opitcal Transmission Equipment 3 Slots FE/GE Ethernet Interface
Huawei OptiX OSN 500 Opitcal Transmission Equipment 3 Slots FE/GE Ethernet Interface

Large Image :  Huawei OptiX OSN 500 Opitcal Transmission Equipment 3 Slots FE/GE Ethernet Interface

Product Details:
Place of Origin: China
Brand Name: HUAWEI
Certification: CE
Model Number: Huawei OptiX OSN 500
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: Negotiatable
Packaging Details: NEW IN BOX
Delivery Time: 1-2 DAYS
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 100 PCS/MONTH

Huawei OptiX OSN 500 Opitcal Transmission Equipment 3 Slots FE/GE Ethernet Interface

Description
Brand: HUAWEI PN: Huawei OptiX OSN 500
Ethernet Interface: FE/GE SDH Interface: STM-1/4
PDH Interface: E1/E3; T1/T3 CES Interface: ATM/IMA E1, Ch STM-1
High Light:

gigabit network switch

,

huawei industrial switches



Huawei OptiX OSN 500 Opitcal Transmission Equipment 3 slots FE/GE Ethernet Interface




Huawei OptiX OSN 500 Overview



The Huawei OptiX OSN 500 is a new-generation opitcal transmission equipment used at the access layer for leased line and mobile BTS access.







Huawei OptiX OSN 500 Specification



Huawei OptiX OSN 500 Specification

Dimensions 44mm (H) x 442mm (W) x 220mm (D)
Switch capacity Packet: 7.2 Gbit/s and TDM: 21.25 Gbit/s (higher order), 5 Gbit/s (lower order)
Service slots 3 slots
Supported interfaces Ethernet interface FE/GE
SDH interface STM-1/4
PDH interface E1/E3; T1/T3
CES interface ATM/IMA E1, ch STM-1
Networking Mode

Supporting pure packet or SDH networking

Supporting single-fiber bidirectional transmission

Power Supply P48V DC/ -60V DC, 220V AC/110V AC
Operation Environment

Temperature



Long term: -5ºC ~ 45ºC

Short term: -5ºC ~ 55ºC

Relative Humidity

Long term: 5% ~ 85%

Short term: 5% ~ 95%

Ethernet Feature



E-Line, E-LAN and QinQ

MPLS-TP based VPWS and VPLS

MS-PW

ETH PWE3

IGMP Snooping v2

Blacklist, Broadcast packet suppression, ACL

QoS



Hierarchical QoS scheduling and traffic shaping

DiffServ mode based on traffic classification

Simple traffic classification, complex traffic classification, per hop behavior (PHB), and ACL

Committed access rate (CAR)

PQ scheduling priority, weighted round robin (WRR) and PQ+WRR queuing

Tail drop and weighted random early detection (WRED)

Shaping based on port scheduling priority

OAM MPLS-TP OAM

LSP/PW OAM:

CC, LB, LT

AIS, RDI

LM, DM

LCK, TST

CSF

Ethernet OAM ETH-CC, ETH-Loopback, ETH-Link Trace, Remote Loopback, Remote Fault Detection, RMON(RFC 2819)
Protection Equipment-level Protection power 1+1 backup
MPLS-TP based networklevel Protection

LSP/PW Linear protection, Ring protection

Anti multifailure protection based on MS-PW

LAG, MC-LAG, Dual-homing protection, LPT

ERPS, MSTP

SDH based network-level Protection

2 fiber MS-SP Ring

1+1/1:n (n<=5) Linear MSP,SNCP

LAG, LPT, LCAS

Synchronization



Both Ethernet and SDH networks supporting clock synchronization

Supporting G.813, Synchronous Ethernet and IEEE 1588v2 synchronization

Adaptive clock recovery (ACR)

One external clock inputs/outputs (2 MHz or 2 Mbit/s)

Two external time signals(1pps+TOD)
