Product Details:
|
| Brand: | Cisco | Parts Number: | ISR4351-SEC/K9 |
|---|---|---|---|
| Dimensions (H X W X D): | 88.9 Mm X 438.15 Mm X 469.9 Mm | Aggregate Throughput: | 200 Mbps To 400 Mbps |
| High Light: | cisco ethernet router,cisco modular router |
||

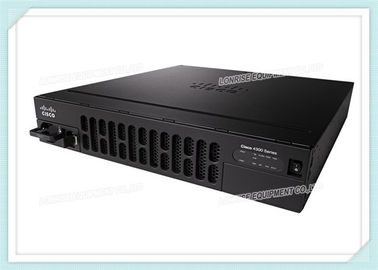

Cisco ISR4351-SEC/K9 is the Cisco ISR4351/k9 router with Security Bundle. Its other specifications are the same as ISR4351/k9.
Table 1 shows the Quick Specs.
| Product Code | Cisco ISR4351-SEC/K9 |
| Bundle | Security Bundle |
| Aggregate Throughput | 200 Mbps to 400 Mbps |
| Total onboard WAN or LAN 10/100/1000 ports | 3 |
| RJ-45-based ports | 3 |
| SFP-based ports | 3 |
| Enhanced service-module (SM-X) slot | 2 |
| NIM (Network Interface Modules) slots | 3 |
| Onboard ISC slot | 1 |
| Memory | 4 GB (default) / 16 GB (maximum) |
| Flash Memory | 4 GB (default) / 16 GB (maximum) |
| Power-supply options | Internal: AC, DC (roadmap), and PoE |
| Rack height | 2 RU |
| Dimensions (H x W x D) | 88.9 mm x 438.15 mm x 469.9 mm |
|
Cisco ISR4351-SEC/K9 Specification |
|
|
Type |
Cisco ISR4351/K9 with Security Bundle |
|
Aggregate Throughput |
200 Mbps to 400 Mbps |
|
Total onboard WAN or LAN 10/100/1000 ports |
3 |
|
RJ-45-based ports |
3 |
|
SFP-based ports |
3 |
|
Enhanced service-module slots |
2 |
|
Doublewide service-module slots |
1 (assumes no singlewide SM-X modules installed) |
|
NIM slots |
3 |
|
OIR (all I/O modules) |
Yes |
|
Onboard ISC slot |
1 |
|
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) |
4 GB |
|
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) |
16 GB |
|
Default memory DDR3 ECC DRAM (data plane) |
NA |
|
Maximum memory DDR3 ECC DRAM (data plane) |
NA |
|
Default memory DDR3 ECC DRAM (control/services plane) |
NA |
|
Maximum memory DDR3 ECC DRAM (control/services plane) |
NA |
|
Default flash memory |
4 GB |
|
Maximum flash memory |
16 GB |
|
External USB 2.0 slots (type A) |
2 |
|
USB console port -type B mini (up to 115.2 kbps) |
1 |
|
Serial console port - RJ45 (up to 115.2 kbps) |
1 |
|
Serial auxiliary port - RJ45 (up to 115.2 kbps) |
1 |
|
Power-supply options |
Internal: AC, DC, and PoE |
|
Redundant power supply |
N/A |
|
AC input voltage |
100 to 240 VAC autoranging |
|
AC input frequency |
47 to 63 Hz |
|
AC input current range, AC power supply (maximum) |
7.1 to 3.0A |
|
AC input surge current |
60 A peak and less than 12 Arms per half cycle |
|
Typical power (no modules) (watts) |
48 |
|
Maximum power with AC power supply (watts) |
430 |
|
Maximum power with PoE power supply (platform only) (watts) |
990 |
|
Maximum endpoint PoE power available from PoE power supply (watts) |
500 |
