Product Details:
|
| Brand: | CISCO | Model: | ASR-9010-DC |
|---|---|---|---|
| Slot Orientation: | Vertical | Cisco ASR 9000 Series RSP: | Dual Redundant RSPs With Integrated Fabric In 2 Slots |
| Cisco ASR 9000 Series Line Cards: | 8 Line-card Slots | Airflow: | Front-to-back |
| High Light: | cisco ethernet router,cisco network router |
||

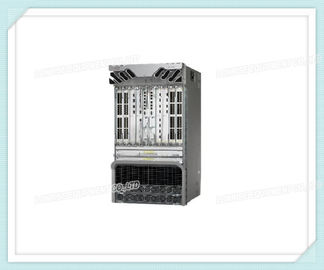

Cisco ASR 9010 Chassis ASR-9010-DC ASR-9010 DC Chassis 8 linecard slots
The Cisco® ASR 9000 Series Aggregation Services Routers (ASR 9000 Series) represent an exciting new paradigm in edge and core routing, with exceptional scalability, carrier-class reliability, environmentally conscious design, incredible flexibility, and an attractive price-to-performance benchmark. The Cisco ASR 9000 Series ASR-9010-DC also offers service and application-level intelligence focused on optimized video delivery and mobile aggregation. Finally, the Cisco ASR 9000 Series is designed to simplify and enhance the operational and deployment aspects of service-delivery networks.
ASR-9010-DC specifications |
|
| Description | Cisco ASR 9010 chassis, ASR-9010-DC, ASR-9010 DC chassis |
| Cisco ASR 9010 Specs | |
| Physical specifications |
Height: 36.75 in. (933.45 mm) (21 RU) Width: 17.38 in. (441.45 mm) Depth: ● With doors: 29.03 in. (737.4 mm) ● Without doors: 28.24 in. (717.3 mm) Weight: ● 155.6 lb (70.73 kg) (chassis with PEM) 231.6 lb (105.27 kg) (fully loaded, excluding linecards and power modules) – RSP, two v2 fan trays, PEMs |
| Slot orientation | Vertical |
| Cisco ASR 9000 Series RSP | Dual redundant RSPs with integrated fabric in 2 slots |
| Cisco ASR 9000 Series line cards | 8 line-card slots |
| “Commons” components |
2 RSPs 2 fan trays 2 PEMs (either DC or AC) 1 fan filter |
| Reliability and availability |
Fabric redundancy Fan redundancy Feed redundancy Power-supply redundancy RSP redundancy Software redundancy |
| Rack mounting |
19-in. default 21- and 23-in. adapters available Note: Minimum 17.75-in. opening between posts is needed for proper operation |
| Cabinet mounting |
Yes Note: Doors not recommended in enclosed cabinets |
| Wall mounting | No |
| Airflow | Front-to-back |
| Performance | |
| Fabric |
One per RSP: ● Active/active nonblocking operation mode in dual-RSP redundant configuration ● Fully redundant in dual-RSP redundant configuration ● Built-in service-intelligence and traffic-prioritization capability |
| Thermal |
Two fan trays: ● 12 high-efficiency fans per tray ● Variable-speed fans for optimal thermal performance ● No single point of failure |
| Modularity |
Pay-as-you-grow power for future scalability, available in AC and DC. Multiple power module types: ● 6 kW and 3 kW AC power modules ● 4.4 kW and 2.1 kW DC power modules Note: Mixing of AC and DC modules is not supported |
| Redundancy |
● AC: N+N redundancy ● DC: N+1 redundancy ● Power module redundancy ● A/B Feed redundancy ● PEM redundancy |
| Power zones |
No power zone restrictions Fully load-sharing power infrastructure |
| Power input |
Worldwide ranging AC (200-240V; 50-60 Hz; 16A maximum) Worldwide ranging DC (-40 to -72V; 50A nominal, 60A maximum) |
| Power-module airflow | Front-to-back |
| Environmental Specifications | |
| Operating temperature (nominal) | 41 to 104ºF (5 to 40ºC) |
| Operating temperature (short-term) |
ASR 9006: 23 to 131ºF (-5 to 55ºC) ASR 9010: 23 to 122ºF (-5 to 50ºC) |
| Operating humidity (nominal) (relative humidity) | 5 to 90% |
| Storage temperature | -40 to 158ºF (-40 to 70ºC) |
| Storage (relative humidity) | 5 to 93% |
| Operating altitude | -60 to 4000m (up to 2000m conforms to IEC/EN/UL/CSA 60950 requirements) |
| Regulatory Compliance | |
| Network Equipment Building Standards (NEBS) |
Cisco ASR 9010 Routers are designed to meet: ● SR-3580: NEBS Criteria Levels (Level 3) ● GR-1089-CORE: NEBS EMC and Safety ● GR-63-CORE: NEBS Physical Protection ● VZ.TPR.9205: Verizon TEEER |
| ETSI standards |
Cisco ASR 9010 Routers are designed to meet: ● EN300 386: Telecommunications Network Equipment (EMC) ● ETSI 300 019 Storage Class 1.1 ● ETSI 300 019 Transportation Class 2.3 ● ETSI 300 019 Stationary Use Class 3.1 |
| EMC standards emission |
Cisco ASR 9010 Routers are designed to meet: ● FCC Class 47CFR15 A ● ICES 003 Class A ● AS/NZS CISRP22 Class A ● CISPR 22 (EN55022) Class A ● VCCI Class A ● BSMI Class A ● IEC/EN 61000-3-12: Power Line Harmonics ● IEC/EN 61000-3-11: Voltage Fluctuations and Flicker ● EN55022: Information Technology Equipment (Emissions) ● EN 50121-4: Railway EMC |
| EMC standards immunity |
Cisco ASR 9010 Routers are designed to meet: ● IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air) ● IEC/EN-61000-4-3: Radiated Immunity (10V/m) ● IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal) ● IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM) ● IEC/EN-61000-4-5: Signal Surge Ports (1kV) ● IEC/EN-61000-4-5: Surge DC Port (1kV CM, 1kV DM) ● IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms) ● IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m) ● IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations ● EN55024: Information Technology Equipment (Immunity) ● EN50082-1/EN-61000-6-1: Generic Immunity Standard ● EN 50121-4: Railway EMC |
| Safety |
Cisco ASR 9010 Routers are designed to meet: ● UL/CSA/IEC/EN 60950-1 ● IEC/EN 60825 Laser Safety ● ACA TS001 ● AS/NZS 60950 ● FDA Code of Federal Regulations Laser Safety |
