Product Details:
|
| Brand: | Cisco | Parts Number: | C9200L-48P-4X-E |
|---|---|---|---|
| Uplink Configuration: | 4x 10G Fixed Uplinks | Stacking Bandwidth: | 80 Gbps |
| High Light: | poe ethernet switch,fiber optic network switch |
||

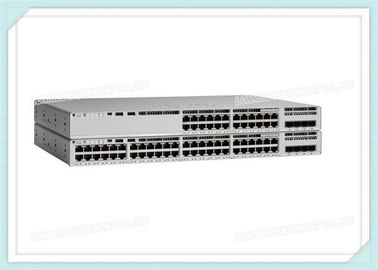

C9200L-48P-4X-E is the Catalyst 9200L 48 ports full PoE+ 4x10G uplink Switch, with Network Advantage software. Cisco® Catalyst® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT simplified.
Product Details
Catalyst 9200 series provides these highlights:
● Up to 48 ports of full Power over Ethernet Plus (PoE+) capability
● Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks
● Flexible downlink options with data or PoE+
● Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps
● UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure
● Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems
● Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access
● Advanced network monitoring using Full Flexible NetFlow
● Cisco Software-Defined Access (SD-Access):
◦ Simplified operations and deployment with policy-based automation from edge to cloud managed with Cisco Identity Services Engine (ISE)
◦ Network assurance and improved resolution time through Cisco DNA Center™
● Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network
● Cisco IOS XE: A Common Licensing based operating system for the enterprise Cisco Catalyst 9000 product family with support for model-driven programmability and streaming telemetry
● ASIC with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries
|
C9200L-48P-4X-E Specification |
|
|
Downlinks total 10/100/1000 or PoE+ copper ports |
48 ports full PoE+ |
|
Uplink configuration |

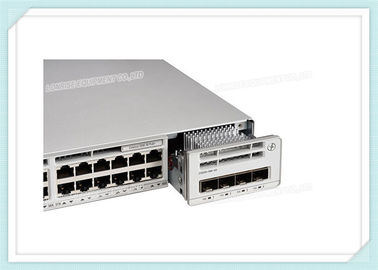

4x 10G fixed uplinks |
|
Default primary AC power supply |
PWR-C5-1KWAC |
|
Fans |
Fixed redundant |
|
Software |
Network Essentials |
|
Chassis Dimensions |
1.73 x 17.5 x 11.3 in 4.4 x 44.5 x 28.8 cm |
|
Virtual Networks |
1 |
|
Stacking bandwidth |
80 Gbps |
|
Total number of MAC addresses |
16,000 |
|
Total number of IPv4 routes (ARP plus learned routes) |
11,000 (8,000 direct routes and 3,000 indirect routes) |
|
IPv4 routing entries |
3,000 |
|
IPv6 routing entries |
1,500 |
|
Multicast routing scale |
1,000 |
|
QoS scale entries |
1,000 |
|
ACL scale entries |
1,500 |
|
Packet buffer per SKU |
6 MB buffers for 24- or 48-port Gigabit Ethernet models |
|
Flexible NetFlow (FNF) entries |
16,000 flows on 24- and 48-port Gigabit Ethernet models |
|
DRAM |
2 GB |
|
Flash |
4 GB |
|
VLAN IDs |
1024 |
|
Total Switched Virtual Interfaces (SVIs) |
512 |
|
Jumbo frames |
9198 bytes |
|
Wireless bandwidth per switch |
N/A |
|
Switching capacity |
176 Gbps |
|
Forwarding rate |
261.9 Mpps |
|
Mean time between failures (hours) |
346,270 |
| StackWise-80 and StackWise-160 Kit and cables | |
| Product number | Product description |
| C9200-STACK-KIT= | C9200 Stack Kit Spare |
| C9200L-STACK-KIT= | C9200L Stack Kit Spare |
| STACK-T4-50CM | 50CM Type 3 Stacking Cable |
| STACK-T4-1M | 1M Type 3 Stacking Cable |
| STACK-T4-3M | 3M Type 3 Stacking Cable |
| Soft Licenses | |
| Product number | Product description |
| C9200L-DNA-P-48 | C9200L DNA Premier Term, 48-Port: Includes Term Licenses for DNA Advantage, 25 ISE Base & 25 ISE Plus Endpoints, 25 Stealthwatch Flows (including Virtual Flow Collector & Management Console). Requires separate purchase of ISE appliance/ISE VM and DNA Center appliance |
| C9200L-DNA-P-48-3Y | C9200L DNA Premier, 48-port, 3Y Term – DNA, 25 ISE PLS and ISE BASE, 25 SWATCH |
| C9200L-DNA-P-48 -5Y | C9200L DNA Premier, 48-port, 5Y Term – DNA, 25 ISE PLS and ISE BASE, 25 SWATCH |
| C9200L-DNA-P-48 -7Y | C9200L DNA Premier, 48-port, 7Y Term – DNA, 25 ISE PLS and ISE BASE, 25 SWATCH |
| Power supplies | |
| Product Number | Product Description |
| PWR-C5-1KWAC/2= | 125WAC power supply spare |
Table 3 shows the comparison.
| Product number | Product description |
| C9200L-48T-4X-A | Catalyst 9200L 48-port Data 4x10G uplink Switch, Network Advantage |
| C9200L-48T-4X-E | Catalyst 9200L 48-port Data 4x10G uplink Switch, Network Essentials |
| C9200L-48P-4X-A | Catalyst 9200L 48-port PoE+ 4x10G uplink Switch, Network Advantage |
| C9200L-48P-4X-E | Catalyst 9200L 48-port PoE+ 4x10G uplink Switch, Network Essentials |
