Product Details:
|
| Brand: | HUAWEI | Model: | ME0P08BASD70 |
|---|---|---|---|
| Slots: | 11 Slots, Including 8 LPUs, 2 SRUs, And 1 SFU | Switching Capacity: | 12.58 Tbit/s |
| Max Power: | 4,100W (240G) | Condition: | New With 1Year Warranty |
| High Light: | cisco ethernet router,cisco modular router |
||

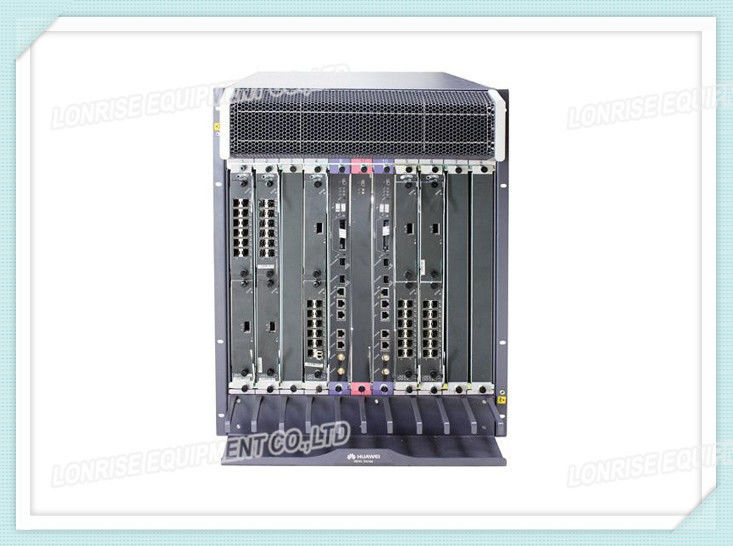

Huawei ME60-X8 Multi-Service Control Gateways ME0P08BASD70 ME60-X8 Basic Configuration
Huawei ME60 Series Multi-Service Control Gateways ME0P08BASD70 supports up to 240G subscriber access line card, and the industry’s largest capacity 160G CGN service board. It has up to 256K concurrent subscribers per chassis, which provides flexibility to meet various requirements in ultra bandwidth era. In addition, the ME60 provides unique BNG Pool solution using hot backup technology which ensures service always online. The Huawei ME0P08BASD70 ME60-X8 Basic Configuration includes ME60-X8 Chassis, 2+1 200G Redundant SRU/SFUI-200-C, 4 DC Power, without Software Charge and Document.
The ME60 provides a powerful session setup rate, which is up to 300 subscribers per second on each single slot, and up to 1200 subscribers per second on each single chassis. NAT session setup rate is up to 2M per second with CGN board, which delivers reliable non-stop services and excellent experience to subscribers. It also ensures smooth and reliable running of various services. Based on the solution with ME60, customers are able to construct a future-oriented and intelligent broadband IP network, which can greatly reduces the total cost of ownership of the network.
ME0P08BASD70 Specifications |
|
| Switching Capacity | 12.58 Tbit/s |
| Slots | 11 slots, including 2 SRUs (1:1 backup), 1 SFUs (2+1 backup), and 8 LPUs |
| Dimensions (W x D x H) | 442 mm x 650 mm x 620 mm (14U) |
| Maximum Power Consumption | 2,340W (120G) 4,100W (240G) |
| Full Configuration Weight | 119 kg (120G) 136 kg (240G) |
| Interface Types |
OC-192c/STM-64c POS OC-48c/STM-16c POS OC-3c/STM-1c POS OC-12c/STM-4c ATM OC-3c/STM-1c ATM 100GE-WAN/LAN 10GE-WAN/LAN GE/FE E3/CT3 CE1/CT1 |
| BRAS | User access protocol: PPPoE, PPPoEoA, IPoE, IPoEoA, and PPPoA 802.1X User authentication protocol: PAP, CHAP, MSCHAP, RADIUS, and HWTACACS User accounting protocol: RADIUS, HWTACACS, and COPS User authorization protocol: RADIUS, HWTACACS, and COPS Policy protocol: COPS and COA |
| L2TP |
Session number: up to 64K/per slot, up to 128K/per chassis Tunnel number: up to 16K/per slot, up to 12K/per chassis |
| IPv4 | Static routing protocol and dynamic routing protocols such as RIP, OSFP, IS-IS, and BGP-4 |
| IPv6 |
Various technologies for transition from IPv4 to IPv6: Manual tunnel configuration, automatic tunnel configurations, IPv6-to-IPv4(6-to-4) Tunneling, Generic Routing Encapsulation (GRE) tunneling, and Intra-Site Automatic Tunnel Addressing Protocol (ISATAP) tunneling IPv4 over IPv6 tunneling and IPv6 provider Edge Router (6PE). IPv6 static routing protocol IPv6 dynamic routing protocols such as RIP Next Generation (RIPng), OSPFv3, IS-ISv6, and BGP4+. IPv6 neighbor discovery and psth Maximum Transmission Unit (PMTU) discovery. Transmission Control Protocol Version 6(TCP6), ping IPv6, traceroute IPv6,socket IPv6, static IPv6 Domain Name System(DNS), specifying the IPv6 DNS server, Trivial File Transfer Protocol(TFTP) IPv6 dient, and IPv6 policy-based routing Internet Control Message Protocol Version 6(ICMPv6) Management Information Base (MIB),User Datagram Protocol Version 6(UDP6) MIB,ICP6 MIB, AND IPv6 MIB |
| MPLS |
LDP over TE, VPLS, H-VPLS, policy-based routing inVPN. MPLS L2VPNs in either Martini or Kompella mode. VLL/VPLS access L3VPNs. QinQ, MPLS/BGP L3VPN, and inter-AS VPN Option A/B/C. Asynchronous Transfer Mode(ATM)E1, Inverse Multiplexing over ATM(IMA), and Time-Division Multiplexing(TDM)PWE3. MPLS-TP. |
| Layer 2 feature |
IEEE802.1q, IEEE802.1p, IEEE802.3ad, and IEEE802.1ab. Spanning Tree Protocol(STP), Rapid Spanning Tree Protocol (RSTP),Multiple Spanning Tree Protocol (MSTP), RPPP, DHCP+ , VLAN switching, and user binding. |
| QoS | Weighted Random Early Detection (WRED), DS-TE capability with a maximum of eight CTs, five-level H-QoS scheduling, VLL/PWE3 QoS, and MPLS H-QoS. The last mile QoS. Multicast replication of IPoE access users |
| CGN |
NAT444,NAT64 Distributed deployment or integrated deployment Re-allocation or dynamic allocation of ports VPN NAT NAT ALG(TFP/ICMP/PPTP/RTSP/SIP) Port forwarding NAT server Web user’s anthentication DS-Lite L2-Aware NAT |
| DAA | ME60s support Destination Address Accounting (DAA), providing refined subscriber management with differentiated service and accounting in IP networks. |
