Product Details:
|
| Condition: | NIB And Used | Branch: | Cisco |
|---|---|---|---|
| Type: | Ethernet Switch | Switching Capacity (full Duplex): | Up To 240 Gbps |
| Forwarding Rate: | Up To 360 Mpps | PN: | C9500-16X-E |
| High Light: | poe ethernet switch,fiber optic network switch |
||

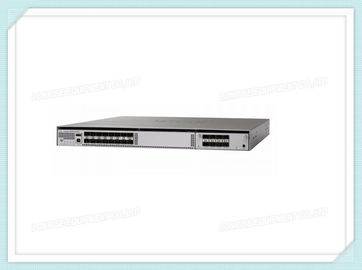

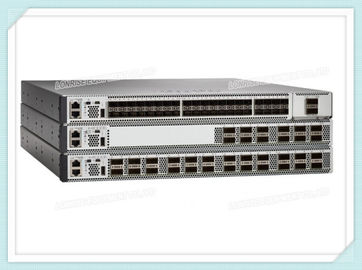

C9500-16X-E is a Cisco Catalyst 9500 16-port 10G switch, NW Ess. License. The Cisco Catalyst 9500 Series Switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Catalyst 9500 Series is Cisco's lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The Catalyst 9500 Series is the industry's first purpose-built 40 Gigabit Ethernet line of switches targeted for the enterprise campus.
C9500-16X-E Specification |
|
| Performance specifications | |
| Switching capacity | Up to 240 Gbps |
| Forwarding rate | Up to 360 Mpps |
| Total number of MAC addresses | Up to 64,000 |
| Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes) |
Up to 64,000 indirect Up to 80,000 host |
| Total number of IPv6 routes |
Up to 32,000 indirect Up to 40,000 host |
| QoS ACL scale | Up to 18000 |
| Security ACL scale | Up to 18000 |
| FNF entries | Up to 512,000 |
| DRAM | 16 GB |
| Flash | 16 GB |
| VLAN IDs | 4000 |
| Total Switched Virtual Interfaces (SVIs) | 4000 |
| Jumbo frame | 9198 bytes |
| Power supply specifications | |
| Power Supply Selection | PWR-C4-950WAC-R or PWR-C4-950WDC-R |
| Power max rating | 950 W |
| Dimensions, physical specifications, weight, and MTBF | |
| Dimensions (H x W x D) | 1.73 x 17.5 x 21.52 in |
| Rack units (RU) | 1 RU |
| Chassis with 2 power supplies and built-In fan | 23.6 lb (10.7 kg) |
| Input voltage | 90 to 264 VAC |
| Operating temperature | 32° to 104°F (0° to 40°C) |
| Storage temperature | -4° to 149°F (-20° to 65°C) |
| Relative humidity operating and nonoperating noncondensing |
Ambient (noncondensing) operating: 5% to 90% Ambient (noncondensing) nonoperating and storage: 5% to 95% |
| Altitude | Operation up to 6000 feet at 55°C and 13,000 feet at 45°C |
| MTBF (hours) | 315,790 |
