Product Details:
|
| Antennas: | Internal Antennas | Detail: | 802.11ac Wave 2 AP W/CleanAir, 4x4:3, Mod, |
|---|---|---|---|
| Interfaces: | 2 Ethernet Ports | Condition: | New Original |
| Warranty: | 1year Replacement Warranty | Shipment: | DHL,UPS,TNT, |
| High Light: | cisco poe wifi access point,cisco aironet access point |
||

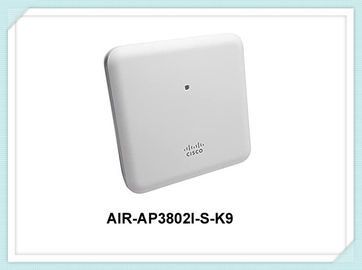

AIR-AP3802I-S-K9 Specifications |
|
| Detail | 802.11ac Wave 2 AP w/CleanAir, 4x4:3, Mod, Internal Antenna, mGig, S Regulatory Domain |
| Regulatory Domain |
S (S regulatory domain): - 2.412 to 2.472 GHz; 13 channels - 5.180 to 5.320 GHz; 8 channels - 5.500 to 5.700 GHz;, 11 channels - 5.745 to 5.825 GHz; 5 channels |
| Software and supported wireless LAN controllers |
Cisco Unified Wireless Network Software Release 8.2.MR1 or later Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller Cisco IOS XE Software Release 16.3 – Target Q3 CY2016 Cisco Catalyst 3850 Series and 3650 Series Switches |
| 802.11n version 2.0 (and related) capabilities |
4x4 MIMO with three spatial streams Maximal ratio combining (MRC) 802.11n and 802.11a/g beamforming 20- and 40-MHz channels PHY data rates up to 450 Mbps (40 MHz with 5 GHz). Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 dynamic frequency selection (DFS) Cyclic shift diversity (CSD) support |
| 802.11ac Wave 1 capabilities |
4x4 MIMO with three spatial streams MRC 802.11ac beamforming 20-, 40-, and 80-MHz channels PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 DFS CSD support |
| 802.11ac Wave 2 capabilities |
4x4 MU-MIMO with three spatial streams MRC 802.11ac beamforming 20-, 40-, 80, 160-MHz channels PHY data rates up to 5.2 Gbps Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 DFS CSD support |
| Integrated antenna |
Flexible radio (either 2.4 GHz or 5 GHz) 2.4 GHz, gain 4 dBi, internal antenna, omnidirectional in azimuth 5 GHz, gain 6 dBi, internal directional antenna, elevation plane beamwidth 90° Dedicated 5-GHz radio 5 GHz, gain 5 dBi, internal antenna, omnidirectional in azimuth |
| Interfaces |
◦ 2 Ethernet ports ◦ 100/1000/2500/5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz ◦ CAT 5e cabling ◦ Higher-quality 10GBASE-T (CAT 6/6a) cabling ◦ 100/1000BASE-T autosensing (RJ-45 - AUX port) ◦ Management console port (RJ-45) |
| Indicators | Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors |
| Dimensions (W x L x H) | 8.66 x 8.68 x 2.46 in. (22 x 22 x 6.25 cm), |
| Weight | 4.6 lb (2.09 kg) |
| Input power requirements |
802.3at PoE+, Cisco Universal Power over Ethernet (Cisco UPOE) 802.3at power injector (AIR-PWRINJ6=) 50W power supply (AIR-PWR-50=) |
| Power draw |
30W at the PSE with all features enabled except for the USB 2.0 port 34W at the PSE with the USB 2.0 port enabled |
| Environmental |
Cisco Aironet 3800i Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) Nonoperating (storage) altitude test: 25˚C, 15,000 ft. Operating temperature: 32° to 104°F (0° to 40°C) Operating humidity: 10% to 90% percent (noncondensing) Operating altitude test: 40˚C, 9843 ft. |
| System memory |
1024 MB DRAM 256 MB Flash |
| Warranty | Limited lifetime hardware warranty |
