Product Details:
|
| Brand: | HUAWEI | PN: | AR2504E-H |
|---|---|---|---|
| Fixed Ports: | 4 X GE Combo, 4 X GE RJ45 | Alarm Interface: | 1 DO |
| Level Of Protection: | IP30 | Condition: | New With 1Year Warranty |
| High Light: | cisco network router,cisco modular router |
||

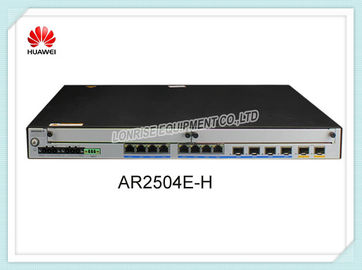

Huawei Router AR2504E-H IoT gateway 8*GE LAN , 1*USB, 2*WSIC, 60W, AC / DC
| 1 | USB interface | 2 |
ETH interface NOTE:
ETH is a management interface and is used to upgrade the router.
|
| 3 | Console interface | 4 | RESET button |
| 5 |
Ground point
NOTE:
The router must be reliably grounded using a ground cable to protect the router from lightning and electromagnetic interference.
|
6 | Two power sockets |
| 7 | Reserved DO interface | 8 | Four GE electrical interfaces |
| 9 | Four GE combo interfaces | 10 | LAN interface: Two 10GE optical interfaces |
| 11 | Two power module slots
Applicable power module: 60 W AC power module |
12 | Two WSIC slots |
| Product specifications | AR2504-H | AR2504E-H | AR2504-d-H |
|---|---|---|---|
| Fixed interface | 4 X Gigabit Combo , 4 X GE RJ45 | 2 X 10 GIVE, 4 X Gigabit Combo , and 4 X GE RJ45 | 4 X Gigabit Combo , 4X GE RJ45 |
| Alarm interface | 1 X DO (3- pin industrial terminal ) | ||
| Forwarding performance | 36 MPPS | 66 MPPS | 36 MPPS |
| Exchange capacity | 144 Gbit / s | ||
| Certification | North America : UL Germany : GS Worldwide : CB European Union : EC (2004/108/EC, EN 55022, EN55024, and EN 300386) United States : FCC (47 CFR Part 15) Canada : I Know ( ICES- 003) Australia : RCM ( formerly C-TICK : AS / NZS CIPSR22 ) Power : IEC61850-3 / IEEE1613 ( for substations ) National Grid : Class A |
||
| Ring network protocol | SEP, PTS, RSTP, and MSTP | ||
| power | Redundant power supply module AC: 100 V to 240 V , 50 Hz / 60 Hz (90 V to 264 V , 47 Hz 63 Hz) DC: 110 V to 250 V (88 V to 300 V ) Input undervoltage and overvoltage protection Output short circuit protection overheating Protection reverse connection protection |
Redundant power supply module DC: 24 V to 48V (18 V to 60V ) input undervoltage and overvoltage protection output short circuit protection overheat protection reverse connection protection |
|
| IP protection level | IP30 | ||
| Operating temperature | -40 ° C to 65 ° C in accordance with IEC60068-2-1-2007 and ETSI EN 300 019-2-3 V2.2.2 :2003, the router can operate reliably 24 hours in the temperature range of -40 ° C, 70 ° C |
-40 ° C to 60 ° C | |
| Dimensions (height x width x d) | 44 mm × 442 mm × 420 mm ( installation ear removal ) |
||
