Huawei Router AR1504-24S 4 X GE Combo 24 X FE SFP Agile Gateway Router Equipment

Large Image : Huawei Router AR1504-24S 4 X GE Combo 24 X FE SFP Agile Gateway Router Equipment

Product Details:

Place of Origin:	China
Brand Name:	HUAWEI
Certification:	CE
Model Number:	AR1504-24S

Payment & Shipping Terms:

Minimum Order Quantity:	1 UNIT
Price:	Negotiatable
Packaging Details:	NEW IN BOX
Delivery Time:	1-2 DAYS
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	100 PCS/MONTH

Contact Now

Huawei Router AR1504-24S 4 X GE Combo 24 X FE SFP Agile Gateway Router Equipment

Description

Brand:	HUAWEI	PN:	AR1504-24S
Fixed Ports:	4 X GE Combo, 24 X FE SFP	Looped Network Agreement:	SEP、STP、 RSTP、MSTP
Level Of Protection:	IP40	Condition:	New With 1Year Warranty
High Light:	cisco ethernet router , cisco modular router

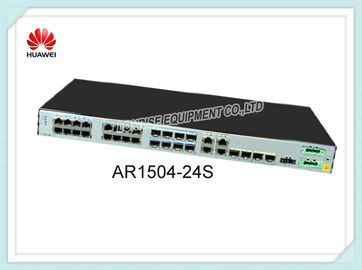

Huawei Router AR1504-24S 4 x GE combo, 24 x FE SFP,

AR1504-24S Overview

AR1500 series IOT can be applied to industrial automation such as power and transportation.

The AR1500 series is integrated with up to 28 high density ports, which is convenient for multi terminal access, and the industrial design can satisfy the network communication needs in the environment of bad temperature, humidity and electromagnetic interference.

AR1504-24S Specification

Huawei Router AR1504-24S 4 X GE Combo 24 X FE SFP Agile Gateway Router Equipment 0

1	24FE optical interface	2	4GE combo interface
3	Reserved DO interface	4	Two power sockets NOTE: Use a AC/DC power cables to connect the router to an external power source.
5	Ground point NOTE: To protect the router from lightning and interference, reliably ground the router using a Ground Cable.	6	Reset button NOTE: This button is used to reset the router. Resetting the system will interrupt services. Exercise caution when performing this operation.
7	USB interface	8	ETH interface NOTE: An ETH interface is a management interface used to upgrade the router.
9	Console interface	10	-

Specifications	AR1504-24T	AR1504-8S16T	AR1504-16S8T	AR1504-24S
Fixed Interfaces	4 x GE combo, 24 x FE RJ45	4 x GE combo, 8 x FE SFP	4 x GE combo, 16 x FE SF P	4 x GE combo, 24 x FE SFP
		16 x FE RJ45	8 x FE RJ45
Alarm Interface	1 x DO
Forwarding Performance	12.6 Mpps
Switching Capacity	24.8 Gbit/s
Certifications	CB (IEC 60950)
	NRTL (UL60950-1)
	EU CE (EN 55022, EN 55024, and EN 300386)
	American FCC (47 CFR Part 15)
	Canada IC (ICES-003)
	Australian A-Tick (AS/NZS CIPSR 22)
	Electric power standards of transformer substations (IEC61850-3/IEEE1613)
	Railway industry requirement (EN50155)
Ring Network Protocols	SEP, STP, RSTP, and MSTP
Power	Redundant power supply
	AC power supply: 100V to 240V AC, 50 Hz/60 Hz (90V to 264V AC, 47 Hz to 63 Hz)
	DC power supply: 110V to 250V DC (88V to 300V DC)
	Protection against undervoltage, overvoltage, short-circuit, over temperature, and reversed connection
IP Protection Level	IP40
Operating Temperature	–40°C to 65°C
Dimensions (H x W x D)	43.6 mm x 442 mm x 220 mm (with no mounting bracket installed)
	43.6 mm x 482 mm x 220 mm (with mounting brackets installed)
