Product Details:
|
| Brand: | Cisco | Parts Number: | N9K-C93180YC-EX |
|---|---|---|---|
| Dimensions (H X W X D): | 1.72 X 17.3 X 22.5 In | Downlink Supported Speeds: | 1/10/25-Gbps Speeds |
| High Light: | optical ethernet switch,poe ethernet switch |
||

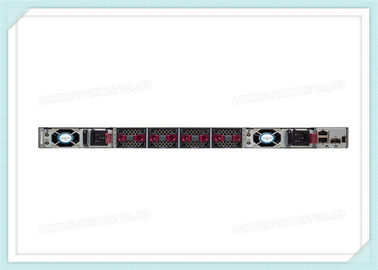

N9K-C93180YC-EX is one of the Cisco Nexus 9300-EX switches. Cisco Nexus 9300-EX platforms are the next generation of fixed Cisco Nexus 9000 Series Switches. The new platforms support cost-effective cloud-scale deployments, an increased number of endpoints, and cloud services with wire-rate security and telemetry. The platforms are built on modern system architecture designed to provide high performance and meet the evolving needs of highly scalable data centers and growing enterprises.
|
N9K-C93180YC-EX Specification |
|
|
Ports |
48 x 10/25-Gbps and 6 x 40/100-Gbps QSFP28 ports |
|
Downlink supported speeds |
1/10/25-Gbps speeds |
|
CPU |
4 cores |
|
System memory |
24 GB |
|
SSD drive |
64 GB |
|
System buffer |
40 MB |
|
Management ports |
2 ports: 1 RJ-45 and 1 SFP |
|
USB ports |
1 |
|
RS-232 serial ports |
1 |
|
Power supplies (up to 2) |
650W AC, 930W DC, or 1200W HVAC/HVDC |
|
Typical power (AC/DC) |
210W |
|
Maximum power (AC/DC) |
470W |
|
Input voltage (AC) |
100 to 240V |
|
Input voltage |
200 to 277V |
|
Input voltage (DC) |
–48 to –60V |
|
Input voltage |
–240 to –380V |
|
Frequency (AC) |
50 to 60 Hz |
|
Fans |
4 |
|
Airflow |
Port-side intake and exhaust |
|
Physical dimensions |
1.72 x 17.3 x 22.5 in. |
|
Acoustics |
48.5 dBA at 40% fan speed, 64.9 dBA at 70% fan speed, and 77.8 dBA at 100% fan speed |
|
RoHS compliance |
Yes |
|
MTBF |
390,330 hours |
|
Maximum number of Longest Prefix Match (LPM) routes |
896,000 |
|
Maximum number of IP host entries |
896,000 |
|
Maximum number of MAC address entries |
256,000 |
|
Maximum number of multicast routes |
32,000 |
|
Number of Interior Gateway Management Protocol (IGMP) snooping groups |
Shipping: 8,000 Maximum: 32,000 |
|
Maximum number of Cisco Nexus 2000 Series Fabric Extenders per switch |
16 |
