Product Details:
|
| Model: | Cisco891-K9 | Brand: | Cisco |
|---|---|---|---|
| Rack Units: | 1RU | WAN Ports: | 2 WAN Ports |
| LAN Ports: | 8-port 10/100 Ethernet Switch | DRAM / Flash Memory: | 512MB / 256MB |
| High Light: | cisco network router,cisco modular router |
||

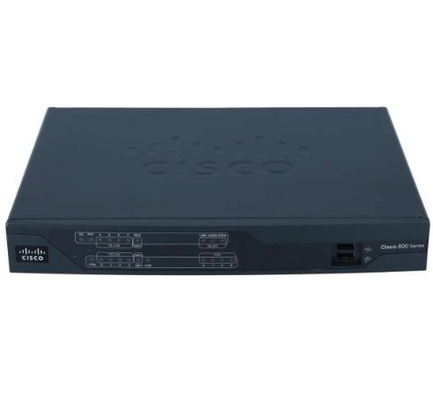

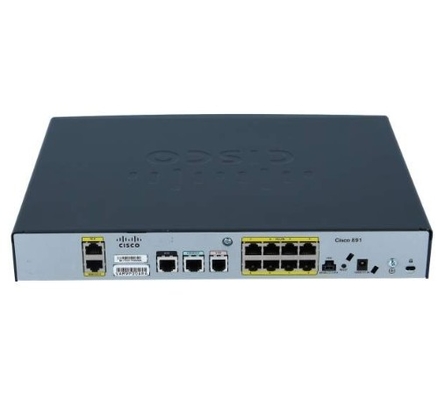

Router CISCO891-K9 Cisco 891 GigaE SecRouter,2 WAN Ports,8 x 10/100 LAN Ports
Cisco 890 Series Integrated Services Routers are designed to deliver highly secure broadband, Metro Ethernet, wireless LAN connectivity, and business continuity for enterprise small branch offices. The Cisco 891 model includes an integrated V.92 analog modem interface.
CISCO891-K9 Specifications |
|
| Product Description | Cisco 891 Gigabit Ethernet Security Router - router |
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | CISCO891-K9 |
| Product Type | Router + 8-port switch (integrated) |
| Form Factor | External |
| Dimensions (WxDxH) | 32.5 cm x 24.9 cm x 4.4 cm |
| DRAM Memory | 512 MB (installed) / 768 MB (max) - DDR2 SDRAM |
| Flash Memory | 256 MB (installed) / 256 MB (max) |
| Routing Protocol | OSPF, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, NHRP, GRE |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Network / Transport Protocol | L2TP, IPSec |
| Remote Management Protocol | Telnet, SNMP 3, HTTP, HTTPS, SSH |
| Features |
Cisco IOS Advanced IP services , VPN support, VLAN support, auto-uplink (auto MDI/MDI-X), Stateful Packet Inspection (SPI), MAC address filtering, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Fair Queuing (WFQ), Access Control List (ACL) support, Quality of Service (QoS), DHCP server, DNS proxy |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x |
| Power | AC 120/230 V ( 50/60 Hz ) |
shows the comparison between C881-K9 and C891F-K9.
| Models | C881-K9 | C891F-K9 |
| Interfaces |
- LAN: 4 x 10Base-T/100Base-TX - Management: 1 x console - WAN : 1 x 10Base-T/100Base-TX - USB : 1 x 4 PIN USB Type A |
- LAN: 8 x Gigabit ports; 1 x Fast Ethernet ports - Uplink: 1 x SFP ports - Management: 1 x console - USB : 1 x 4 PIN USB Type A |
| POE | 2 port integrated PoE | 4 POE ports |
| FAN | Fanless chassis | Fanless chassis |
Order Information
NE20E-M2F S6720S-26Q-EI-24S-AC S6720-30L-HI-24S-DC
S5720-50X-EI-46S-DC CE6850-48T4Q-EI CE6851-48S6Q-HI
CE6850U-48S6Q-HI S5700S-52P-LI-AC S2700-26TP-PWR-EI
