Product Details:
|
| Model: | AR2201-48FE | Brand: | Huawei |
|---|---|---|---|
| PN: | 02354244 | Memory & Flash: | All 512 MB |
| Expansion Card Slots: | 1 | Condition: | New With 1Year Warranty |
| High Light: | cisco ethernet router,cisco modular router |
||

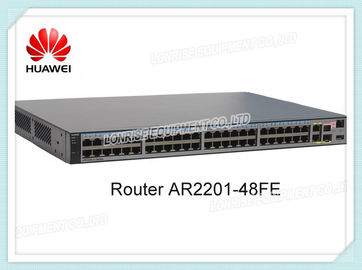

Huawei Router AR2201-48FE,2GE WAN(1GE Combo),1 USB,48FE LAN,60W AC Power
Huawei AR G3 AR2200 series router AR2201-48FE uses a multi-core CPU and non-blocking switching structure to provide industry-leading system performance and scalability to meet current and future business needs.
AR2201-48FE integrates 48 Fast Ethernet 10/100 ports, 2 Gigabit Ethernet ports (RJ-45 or SFP) and 1 expansion slot which can greatly meet the branch high-density Ethernet access requirements.
The routing and switching integration device can simultaneously achieve the functionality of the access switches and branch router combination. Moreover, it can reduce device failure point and network maintenance difficulty.
AR2201-48FE Specifications |
|
| Type | AR2201-48FE,2GE WAN(1GE Combo),1 USB,48FE LAN,60W AC Power |
| Software Version | V200R003C00 and later |
| Dimensions (W x D x H) | 442.0 mm x 314.9 mm x 43.6 mm |
| Memory | 512 MB |
| Flash | 512 MB |
| Hard disk | None |
| Service and Router Unit (SRU) | Not supported |
| Network data encryption (SM1/2/3/4) card | Not supported |
| Management interface | Supported |
| Console interface (RJ45) | Supported |
| Console interface (Mini USB) | Supported |
| USB 2.0 interface (host) | Supported |
| USB 2.0 interface (OTG) | None |
| Micro SD card (default) | Not supported |
| Antenna interfaces | None |
| Service interfaces (standard configuration) |
WAN interfaces: 1 GE electrical interface and 1 GE combo interface LAN interfaces: 48 10/100M auto-sensing Ethernet electrical interfaces |
| Interface number | LAN interfaces: FE0-FE47 |
| Extended slots | 1 |
| Power module type | Built-in AC power module |
| Rated voltage range | 100 V AC/240 V AC, 50 Hz/60 Hz |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| RPS150 | Supported |
| PoE | Not supported |
| Maximum PoE power for PDs | None |
| PoE+ interfaces | None |
| Weight | 4.5 kg (9.92 lb) |
| Mounting brackets | Standard configuration |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Operating altitude | 0-4000 m (0-13123 ft.) |
| Fan type | Built-in fans |
| Heat dissipation mode | Forcible air cooling |
| Installation mode | Rack mounting |
Order Information
NE20E-M2F S6720S-26Q-EI-24S-AC S6720-30L-HI-24S-DC
S5720-50X-EI-46S-DC CE6850-48T4Q-EI CE6851-48S6Q-HI
CE6850U-48S6Q-HI S5700S-52P-LI-AC S2700-26TP-PWR-EI
