Huawei NE20E Series Router CR2P2EBASD10 NE20E-S2E 2*10GE-SFP+ 24GE-SFP Fixed Interface 2*DC

Huawei NE20E Series Router CR2P2EBASD10 NE20E-S2E 2*10GE-SFP+ 24GE-SFP Fixed Interface 2*DC
Huawei NE20E Series Router CR2P2EBASD10 NE20E-S2E 2*10GE-SFP+ 24GE-SFP Fixed Interface 2*DC Huawei NE20E Series Router CR2P2EBASD10 NE20E-S2E 2*10GE-SFP+ 24GE-SFP Fixed Interface 2*DC

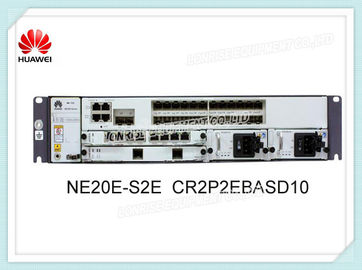

Large Image :  Huawei NE20E Series Router CR2P2EBASD10 NE20E-S2E 2*10GE-SFP+ 24GE-SFP Fixed Interface 2*DC

Product Details:
Place of Origin: CHINA
Brand Name: HUAWEI
Certification: CE
Model Number: NE20E-S2E
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: Negotiable
Packaging Details: NEW IN BOX
Delivery Time: 1-2 DAYS
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 100 UNITS/MONTH

Huawei NE20E Series Router CR2P2EBASD10 NE20E-S2E 2*10GE-SFP+ 24GE-SFP Fixed Interface 2*DC

Description
Model: NE20E-S2E Brand: Huawei
PN: CR2P2EBASD10 Fixed Ports: 2 X 10 GE (SFP+) And 24 X GE (SFP)
Number Of Slots: 2 PICs Condition: New With 1Year Warranty
High Light:

cisco network router

,

cisco modular router

Huawei NE20E Series Router NE20E-S2E, CR2P2EBASD10,








NE20E-S2E,​CR2P2EBASD10  Overview



Huawei CR2P2EBASD10 NetEngine NE20E-S Series Universal Service Router supports various interface types E1/CE1, POS, CPOS, GE, 10GE, and 40GE and high-density fixed ports to provide access and aggregation WAN services as well as Ethernet multi-service transmission platform (MSTP) aggregation services, satisfying various service requirements. The NE20E-S provides reliability protection at different levels, including the equipment level, network level, and service level. It can provide a multi-level reliability solution that completely meets carrier-class reliability. The NE20E-S lays the foundation for carrier-class services with a system availability of 99.999%.



The Huawei NE20E-S2E basic configuration includes NE20E-S2E Chassis,2 fixed 10GE-SFP+ ports, 24GE-SFP fixed interface, 2 * DC Power, Fan Box and Power cord. It also supports up to 320Gbps switching capacity, 70Mpps forwarding performance and 2 PICs slots. The NE20E-S supports IP FPM developed by Huawei to measure IP network performance. IP FPM directly measures IP service packets and monitors service changes online for fast fault locating. IP FPM provides highly-accurate measurements. It can be flexibly deployed and has no impact on services.







NE20E-S2E ,​CR2P2EBASD10​ Specification



CR2P2EBASD10 Specification

Switching Capacity 160 Gbit/s
Forwarding Performance 70 Mpps
Fixed Ports 2 x 10 GE (SFP+) and 24 x GE (SFP)
Number of Slots 2 PICs

Dimensions

(H x W x D)

3.5 in. x 17.4 in. x 8.6 in. = 2U

(89 mm x 442 mm x 220 mm = 2U)

Power consumption (in full configuration) 195W (DC)
Weight in Full Configuration 20.5 lb (9.3 kg) (DC)
Interface Types

40 GE

10 GE

GE/FE

OC-3c/STM-1c POS

OC-12c/STM-4c POS

Channelized OC-3/STM-1 POS

E1/CE1

Clock Synchronization Synchronous Ethernet and IEEE 1588v2
Layer 2 Features

IEEE 802.1q

IEEE 802.1p

IEEE 802.3ad

IEEE 802.1ab

STP/RSTP/MSTP

IPv4/IPv6 Routing Protocols

IPv4 static routes and dynamic routing protocols, such as RIP, OSPF, IS-IS, and BGP

IPv4/IPv6 dual stack

IPv4-to-IPv6 transition technologies, such as manual tunnel, 6-to-4 tunnel, and 6PE

IPv6 static routes and dynamic routing protocols, such as BGP4+, RIPng, OSPFv3, and IS-ISv6

IPv6 neighbor discovery, PMTU discovery, TCP6, ping IPv6, tracert IPv6, socket IPv6, and IPv6 policy-based routing

L2/L3 VPN

LDP over TE, VPLS, H-VPLS, and VPN policy-based routing

Martini MPLS L2VPN

VLL/VPLS accessing L3VPN

MPLS/BGP L3VPN and inter-AS VPN

Multicast

IGMPv1/v2/v3

IGMP snooping

IPv6 multicast

Static multicast routing

PIM-SM

PIM-SSM

MBGP

NG MVPN

QoS

WRED

Five-level HQoS

VLL/PWE3 QoS

Reliability

NSR for OSPF/RIP/LDP/RSVP-TE/PIM/MSDP/IGMP/ARP/L3VPN/IS-IS/BGP/VLL/VRRP

GR for BGP/OSPF/IS-IS/LDP/VLL/VPLS/RSVP/L3VPN/PIM

BFD for static route/fast reroute/VRRP/IS-IS/OSPF/BGP/PIM/LSP/IPv6

Fast convergence of BGP/IGP/multicast routes

IP/LDP FRR, TE FRR, VPN FRR, and VLL FRR

Ethernet OAM, Y.1731, and PWE3 E2E protection

ISSU and in-service patching for smooth software upgrades

Security


ACL-based packet filtering

AAA

SNMPv3 encryption and authentication

URPF, GTSM, DHCP snooping

ARP attack defense

SSHv2

Value-added Services NAT, IPSec, GRE, and NetStream
OAM Y.1731, IP FPM, MPLS OAM, 802.1ag, and 802.3ah
Operating Temperature 23°F to 147°F
(-5°C to 65°C)
Operating Relative Humidity 5% to 85%, non-condensing
Operating Altitude ≤ 9,842.5 ft. (3,000m)
