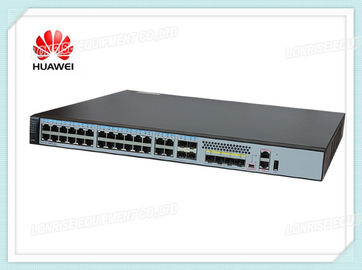

S5720-36PC-EI-AC Huawei Network Switches 28 X 10/100/1000 Ports 4 X Gig SFP With 150W AC

S5720-36PC-EI-AC Huawei Network Switches 28 X 10/100/1000 Ports 4 X Gig SFP With 150W AC
S5720-36PC-EI-AC Huawei Network Switches 28 X 10/100/1000 Ports 4 X Gig SFP With 150W AC S5720-36PC-EI-AC Huawei Network Switches 28 X 10/100/1000 Ports 4 X Gig SFP With 150W AC

Large Image :  S5720-36PC-EI-AC Huawei Network Switches 28 X 10/100/1000 Ports 4 X Gig SFP With 150W AC

Product Details:
Place of Origin: China
Brand Name: Huawei
Certification: CE
Model Number: S5720-36PC-EI-AC
Payment & Shipping Terms:
Minimum Order Quantity: 1 units
Price: Negotiable
Packaging Details: In original carton package
Delivery Time: 2-3 days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 50 units / months

S5720-36PC-EI-AC Huawei Network Switches 28 X 10/100/1000 Ports 4 X Gig SFP With 150W AC

Description
Branch: Huawei Model: S5720-36PC-EI-AC
Ports: 28 × Ethernet 10/100/1000 Ports 4 Of Which Are Dual-purpose 10/100/1000 Or SFP, 4 × Gig SFP Part Number: 02350BDQ
Switching Capacity: 598 Gbit/s Stack Ports: Supported
High Light:

gigabit network switch

,

huawei ethernet switches

Huawei Network Switches S5720-36PC-EI-AC




Overview

Huawei S5720-36PC-EI-AC supports twenty-eight Ethernet 10/100/1000 ports, 4 of which are dual-purpose 10/100/1000 or SFP. It also offers four Gig SFP ports and one interface slot. The interface slot supports optional cards.


Specifications

S5720-36PC-EI-AC Specification

Fixed Port

28 × Ethernet 10/100/1000 ports

4 of which are dual-purpose 10/100/1000 or SFP

4 × Gig SFP

MAC address table IEEE 802.1d compliance
MAC address learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses
MAC address entries: S5720-EI series - 64K
VLAN 4K VLANs
Guest VLAN and voice VLAN
GVRP
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN Mapping
SuperVLAN(supported by the S5700-SI/S5700-EI/S5700-HI series)
Ring protection RRPP ring topology and RRPP multi-instance
Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover
SEP
ERPS(G.8032)(supported by the S5700-LI/S5700-SI/S5700-EI/S5700-HI series)
STP, RSTP, and MSTP
BPDU protection, root protection, and loop protection
BPDU Tunnel
Reliability Ethernet OAM (IEEE 802.3ah and 802.1ag)
ITU-Y.1731
DLDP
LACP
E-Trunk(supported by the S5700-SI/S5700-EI/S5700-HI series)
BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM (supported by the S5700-EI/S5700-HI series)
MPLS features MPLS L3VPN
MPLS L2VPN(VPWS/VPLS)
MPLS-TE
MPLS QoS
Notes: supported by S5710-EI, S5700-HI and S5710-HI
IP routing Static routing
RIPv1, RIPv2 and RIPng,ECMP(supported by the S5700-SI/S5700-EI/S5700-HI series)
OSPF, OSPFv3, IS-IS, IS-ISv6, BGP and BGP4+ (supported by the S5700-EI/S5700-HI series)
IPv6 features Neighbor Discovery (ND)
Path MTU (PMTU)
IPv6 ping, IPv6 tracert, and IPv6 Telnet
ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type
MLD v1/v2 snooping
6to4 tunnel, ISATAP tunnel, and manually configured tunnel(supported by the S5700-SI/S5700-EI/S5700-HI series)
Multicast IGMP v1/v2/v3 snooping and IGMP fast leave
Multicast forwarding in a VLAN and multicast replication between VLANs
Multicast load balancing among member ports of a trunk
Controllable multicast
Port-based multicast traffic statistics
IGMP v1/v2/v3, PIM-SM, PIM-DM, PIM-SSM, MSDP (supported by the S5700-EI/S5700-HI series)
QoS/ACL Rate limiting on packets sent and received by an interface
Packet redirection
Port-based traffic policing and two-rate three-color CAR
Eight queues on each port
WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms
WRED (supported by the S5710-EI and S5700-HI)
Re-marking of the 802.1p priority and DSCP priority

Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination

MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID

Rate limiting in each queue and traffic shaping on ports
Security User privilege management and password protection
DoS attack defense, ARP attack defense, and ICMP attack defense
Binding of the IP address, MAC address, interface, and VLAN
Port isolation, port security, and sticky MAC
MFF
Blackhole MAC address entries
Limit on the number of learned MAC addresses
802.1x authentication and limit on the number of users on an interface
AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC
SSH v2.0
Hypertext Transfer Protocol Secure (HTTPS)
CPU defense
Blacklist and whitelist
Access Security DHCP Relay, DHCP Server, DHCP Snooping, DHCP Security
Management and maintenance Virtual cable test
Port mirroring and RSPAN (remote port mirroring)
Remote configuration and maintenance using Telnet
SNMP v1/v2c/v3
RMON
Web NMS
HGMP
System logs and alarms of different levels
802.3az EEE (supported by the S5700(S)-LI, S5710-EI, S5700-HI and S5710-HI)
Dying gasp (supported by the S5700-HI, S5710-HI and S5700(S)-LI(except battery LAN switches)
NetStream (supported by the S5710-EI, S5700-HI and S5710-HI)
sFlow(supported by the S5700(S)-LI/S5700-EI/S5700-HI series)
Interoperability Supports VBST (Compatible with PVST/PVST+/RPVST)
Supports LNP (Similar to DTP)
Supports VCMP (Similar to VTP)
Operating environment Operating temperature: 0℃–50℃
Relative humidity: 10%–90% (non-condensing)
Input voltage

AC:

Rated voltage range: 100 V to 240 V AC, 50/60 Hz

Maximum voltage range: 90 V to 264 V AC, 47/63 Hz

Dimensions (W x D x H) 44.2 cm x 42 cm x 4.44 cm
Power Consumption S5720-36PC-EI-AC < 74.6W



Shipping



S5720-36PC-EI-AC Huawei Network Switches 28 X 10/100/1000 Ports 4 X Gig SFP With 150W AC 0 S5720-36PC-EI-AC Huawei Network Switches 28 X 10/100/1000 Ports 4 X Gig SFP With 150W AC 1





Related Product



#No Product Description
1 S5720-12TP-LI-AC 24 Ethernet 10/100/1000 ports.4 10 Gig SFP+.AC 110/220V
2 S5720-28X-PWR-LI-AC 8 Ethernet 10/100/1000 ports.2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP.AC 110/220V
3 S5720-52X-LI-AC 48 Ethernet 10/100/1000 ports.4 10 Gig SFP+.AC 110/220V
4 S5720-52X-PWR-LI-AC 48 Ethernet 10/100/1000 ports.4 10 Gig SFP+.PoE+.370W POE AC 110/220V
5 S5720-28X-LI-24S-AC 24 Gig SFP.8 of which are dual-purpose 10/100/1000 or SFP.4 10 Gig SFP+.AC 110/220V.front access
6 S5720-28TP-PWR-LI-ACL 8 Ethernet 10/100/1000 PoE+.16 Ethernet 10/100/1000.2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP.124W POE AC.front access
