Product Details:
|
| Brand: | HUAWEI | Model: | ME0P03BASA31 |
|---|---|---|---|
| Slots: | 5 Slots, Including 2 MPUs (1:1 Backup) And 3 LPUs | Maximum Power Consumption: | 1,070W (AC) |
| High Light: | cisco ethernet router,cisco network router |
||

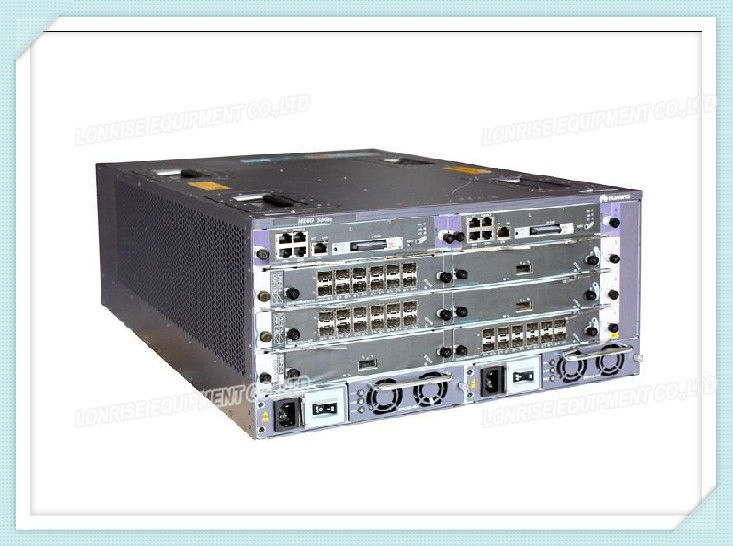

Huawei ME60 Series Multi-Service Control Gateways ME0P03BASA31 ME60-X3 Basic Configuration
Huawei ME60 series Multi-Service Control Gateways ME0P03BASA31 is perfect as service point of presence (SPOP) of IP/MPLS network, BRAS node of broadband service access, or core node of campus network, by delivering industry-leading performance, monetization capabilities and excellent service evolution to boost customers' service development. As the service management and offering platform with high performance, the ME60 meet various requirement for service operation mechanisms. The ME60 ensure smooth and reliable running of various services. Based on the solutions with ME60, customers are able to construct a future-oriented and intelligent broadband IP network, which can greatly reduces the total cost of ownership of the network. ME60-X3 Basic Configuration Include ME60-X3 Chassis, 2 MPUs, 2 AC Power(2200W), without Software Charge and Document. The ME60 provides various joint interface types including COA, Diameter, COPS etc. The ME60 platform supports various port types ranging from 65Kbps to 100Gbps, which provides the most flexibility to meet different requirements. It provides a convenient ALL-IP unified platform with evolutionary capability with various legacy ports. It also supports abundant IPv6 access technologies and large capacity CGN solution, which solves the issue that lacks of IPv4 addresses and provide comprehensive IPv4 to IPv6 smooth evolution solutions.
ME0P03BASA31 Specifications |
|
| Switching Capacity | 1.08 Tbit/s |
| Slots | 5 slots, including 2 MPUs (1:1 backup) and 3 LPUs |
| Dimensions (W x D x H) | 442 mm x 650 mm x 220 mm (AC 5U) |
| Maximum Power Consumption | 1,070W (AC) |
| Full Configuration Weight | 52 kg (AC) |
| Interface Types |
OC-192c/STM-64c POS OC-48c/STM-16c POS OC-3c/STM-1c POS OC-12c/STM-4c ATM OC-3c/STM-1c ATM 100GE-WAN/LAN 10GE-WAN/LAN GE/FE E3/CT3 CE1/CT1 |
| BRAS | User access protocol: PPPoE, PPPoEoA, IPoE, IPoEoA, and PPPoA 802.1X User authentication protocol: PAP, CHAP, MSCHAP, RADIUS, and HWTACACS User accounting protocol: RADIUS, HWTACACS, and COPS User authorization protocol: RADIUS, HWTACACS, and COPS Policy protocol: COPS and COA |
| L2TP |
Session number: up to 64K/per slot, up to 128K/per chassis Tunnel number: up to 16K/per slot, up to 12K/per chassis |
| IPv4 | Static routing protocol and dynamic routing protocols such as RIP, OSFP, IS-IS, and BGP-4 |
| IPv6 |
Various technologies for transition from IPv4 to IPv6: Manual tunnel configuration, automatic tunnel configurations, IPv6-to-IPv4(6-to-4) Tunneling, Generic Routing Encapsulation (GRE) tunneling, and Intra-Site Automatic Tunnel Addressing Protocol (ISATAP) tunneling IPv4 over IPv6 tunneling and IPv6 provider Edge Router (6PE). IPv6 static routing protocol IPv6 dynamic routing protocols such as RIP Next Generation (RIPng), OSPFv3, IS-ISv6, and BGP4+. IPv6 neighbor discovery and psth Maximum Transmission Unit (PMTU) discovery. Transmission Control Protocol Version 6(TCP6), ping IPv6, traceroute IPv6,socket IPv6, static IPv6 Domain Name System(DNS), specifying the IPv6 DNS server, Trivial File Transfer Protocol(TFTP) IPv6 dient, and IPv6 policy-based routing Internet Control Message Protocol Version 6(ICMPv6) Management Information Base (MIB),User Datagram Protocol Version 6(UDP6) MIB,ICP6 MIB, AND IPv6 MIB |
| MPLS |
LDP over TE, VPLS, H-VPLS, policy-based routing inVPN. MPLS L2VPNs in either Martini or Kompella mode. VLL/VPLS access L3VPNs. QinQ, MPLS/BGP L3VPN, and inter-AS VPN Option A/B/C. Asynchronous Transfer Mode(ATM)E1, Inverse Multiplexing over ATM(IMA), and Time-Division Multiplexing(TDM)PWE3. MPLS-TP. |
| Layer 2 feature |
IEEE802.1q, IEEE802.1p, IEEE802.3ad, and IEEE802.1ab. Spanning Tree Protocol(STP), Rapid Spanning Tree Protocol (RSTP),Multiple Spanning Tree Protocol (MSTP), RPPP, DHCP+ , VLAN switching, and user binding. |
| QoS | Weighted Random Early Detection (WRED), DS-TE capability with a maximum of eight CTs, five-level H-QoS scheduling, VLL/PWE3 QoS, and MPLS H-QoS. The last mile QoS. Multicast replication of IPoE access users |
| CGN |
NAT444,NAT64 Distributed deployment or integrated deployment Re-allocation or dynamic allocation of ports VPN NAT NAT ALG(TFP/ICMP/PPTP/RTSP/SIP) Port forwarding NAT server Web user’s anthentication DS-Lite L2-Aware NAT |
| DAA | ME60s support Destination Address Accounting (DAA), providing refined subscriber management with differentiated service and accounting in IP networks. |
