AR3260 Huawei AR3200 Series Integrated Enterprise Router Integrated Chassis Components

AR3260 Huawei AR3200 Series Integrated Enterprise Router Integrated Chassis Components
AR3260 Huawei AR3200 Series Integrated Enterprise Router Integrated Chassis Components AR3260 Huawei AR3200 Series Integrated Enterprise Router Integrated Chassis Components

Large Image :  AR3260 Huawei AR3200 Series Integrated Enterprise Router Integrated Chassis Components

Product Details:
Place of Origin: CHINA
Brand Name: HUAWEI
Certification: CE
Model Number: AR3260
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: Negotiable

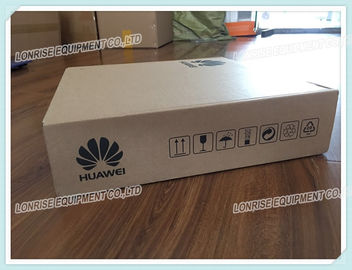

Packaging Details: NEW IN BOX
Delivery Time: 1-2 DYAS
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 50 UNITS/MONTH

AR3260 Huawei AR3200 Series Integrated Enterprise Router Integrated Chassis Components

Description
Brand: HUAWEI Model: AR3260
Extended Slots: 4 SIC Slots, 2 WSIC Slots, And 4 XSIC Slots Memory: Configured With SRU40/SRU60/SRU80/SRU100: 2 GB Configured With SRU200: 4 GB
High Light:

cisco ethernet router

,

cisco network router




Huawei AR3200 Series Integrated Enterprise Router AR3260 Integrated Chassis Components







AR3260 Overview



Huawei AR3260 router using embedded hardware encryption, support for voice digital signal processor (DSP) slot and Firewall support, call processing, voice mail and application services, the coverage of the industry's most extensive wired and wireless connection mode, such as E1 / T1, xDSL, CPOs, 3G and other.

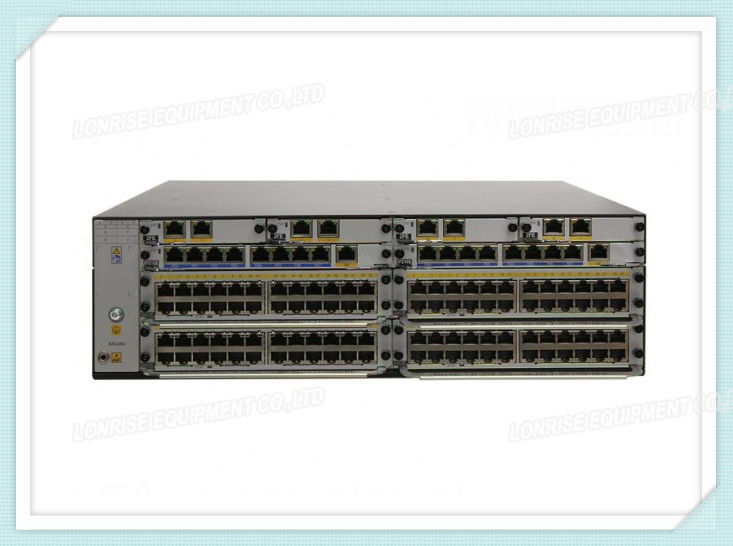

AR3260 Huawei AR3200 Series Integrated Enterprise Router Integrated Chassis Components 0

AR3260 Specification



AR3260 Specification

WAN Speed with Services *** 1 Gbit/s (SRU40), 2 Gbit/s (SRU80), 1 Gbit/s (SRU100E), 4.5 Gbit/s (SRU200), 5.5 Gbit/s (SRU400)
Firewall Performance (large packets) 5.5 Gbit/s (SRU40), 9.5 Gbit/s (SRU80), 10 Gbit/s (SRU100E), 15 Gbit/s (SRU200), 20 Gbit/s (SRU400)
Device Switching Capacity 160 Gbit/s
Slot Switching Bandwidth SIC slots: 2 Gbit/s
WSIC slots: 5 Gbit/s
XSIC & EXSIC slots: 20 Gbit/s
Number of recommended
users
2,000
Fixed WAN Ports

SRU40: 3 x GE (2 x Combo)

SRU80: 3 x GE (2 x Combo)

SRU100E: 4 x GE Combo+ 2 x GE SFP

SRU200: 4 x GE Combo+ 2 x 10 GE SFP+

SRU400: 4 x GE Combo+ 2 x 10 GE SFP+

SIC Slots 4
WSIC Slots 2
XSIC Slots (default/max**) 4/6
EXSIC Slots (shared with XSIC) 1
DSP Slots 0/3
USB 2.0 Ports 1/2
Mini-USB Ports 1
Console Ports 1
Memory 2 GB/4 GB
Flash (default/max**) 2 GB/8 GB
Maximum Power 350W (single power module)/700W (dual power module)
AC Power 100V to 240V
Frequency 50 Hz/60 Hz
DC Power -48V to -60V
Dimensions (H x W x D) 130.5 mm x 442 mm x 470 mm
Weight 11 kg (without power module and interface card)
Ambient Temperature 0°C to 45°C
Ambient Humidity 5% to 95% (non-condensing)
Basic Features DHCP server/client, PPPoE server/client, PPPoA client, PPPoEoA client, NAT, and sub-interface management
Voice RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP/conference call, BEST, DISA, and SBC
3G 3G Interface card (WCDMA)
LTE LTE Interface card (FDD LTE: Uplink: 50 Mbit/s; Downlink: 100 Mbit/s)
WLAN (AC) AP management (AC discovery/AP access/AP management), CAPWAP, WLAN user management, WLAN radio management 802.11a/b/g/n, WLAN QoS (WMM), and WLAN security (WEP/WPA/WPA2/Key management)
LAN IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, and MSTP
IPv4 Unicast Routing Routing policy, static route, RIP, OSPF, IS-IS, and BGP
IPv6 Unicast Routing Routing policy, static route, RIPng, OSPFv3, IS-ISv6, and BGP4+
Multicast IGMPv1/v2/v3, IGMP Snooping v1/v2/v3, PIM SM, PIM DM, and MSDP
MPLS LDP, MPLS L3 VPN, VLL, PWE3, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP, FRR, TE FRR
VPN IPSec VPN, GRE VPN, DSVPN, A2A VPN, L2TP VPN, Smart VPN
QoS DiffServ mode, MPLS QoS, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP WRED), congestion management (LAN interface: SP/WRR/SP+ WRRWAN interface: PQ/CBWFQ), MQC (traffic classifier, traffic behavior, traffic policy), hierarchical QoS, FR QoS, Smart Application Control (SAC), Hardware QoS
Security ACL, firewall, 802.1x authentication, MAC address authentication, Web authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, IP source guard, DHCP snooping, CPCAR, blacklist, and IP source tracing
Management and Maintenance Upgrade management, device management, web-based GUI, GTL, SNMPv1/v2c/v3, NTP, CWMP, auto-config, deployment using USB disk, NetConf, and CLI
