Product Details:
|
| Brand: | HUAWEI | Model: | AR2240C |
|---|---|---|---|
| Extended Slots: | 4 SIC Slots, 2 WSIC Slots, And 2 XSIC Slots | Power Module Type: | Pluggable Power Module |
| High Light: | cisco ethernet router,cisco network router |
||

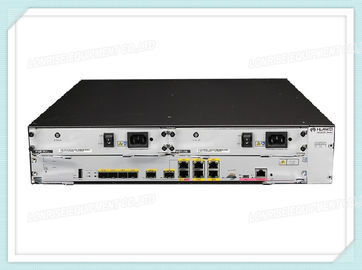

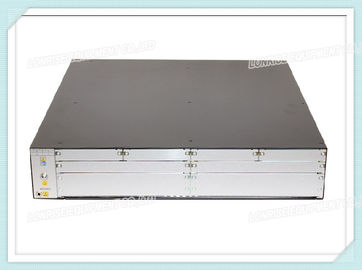

Huawei Industrial Ethernet Router AR2240C 4 SIC Slots 2 WSIC Slots 350W AC Power
AR2240C router reduces equipment and deployment costs due to integrated routing, switching, 3G, voice, and security functions in a single device. At the same time, the router provide enterprises with flexible access and rich interfaces to adapt to a variety of terminals.
AR2204C Specification |
|
| WAN Speed with Services | 1 Gbit/s |
| Firewall Performance (large packets) | 6 Gbit/s |
| Number of recommended users | 500 |
| Fixed WAN Ports | 4 x GE + 4 x GE SFP + 2 x GE Combo |
| SIC Slots | 4 |
| WSIC Slots (default/max**) | 2/4 |
| XSIC Slots (default/max**) | 2/4 |
| EXSIC Slot (shared with XSIC slots) | 1 |
| DSP Slots | 0 |
| USB 2.0 Ports | 1 |
| Mini-USB Ports | 1 |
| Console Port | 1 |
| Memory | 2 GB |
| Flash (default/max**) |
2 GB/8 GB |
| Maximum Power |
350W (Single Power Module) 700W (Dual Power Module) |
| Redundant Power Supply | Internal: AC, DC |
| AC Power | 100V to 240V |
| Frequency | 50 Hz/60 Hz |
| DC Power | - |
| Dimensions (height x width x depth) | 88.1 mm x 442 mm x 470 mm |
| Weight | 4.95 kg (without power module and interface card) |
| Ambient Temperature | 0°C to 45°C |
| Relative Humidity | 5% to 95% (non-condensing) |
