Product Details:
|
| Brand: | HUAWEI | Memory Size: | 256MB |
|---|---|---|---|
| Model: | AR121 | Interface Number: | LAN Interfaces: FE0-FE3 |
| Power Module Type: | External Power Adapter | Service Interfaces (standard Configuration): | WAN Interfaces: 1 10/100M Auto-sensing Ethernet Electrical Interface LAN Interfaces: 4 10/100M Auto-sensing Ethernet Electrical Interfaces |
| High Light: | cisco ethernet router,cisco modular router |
||

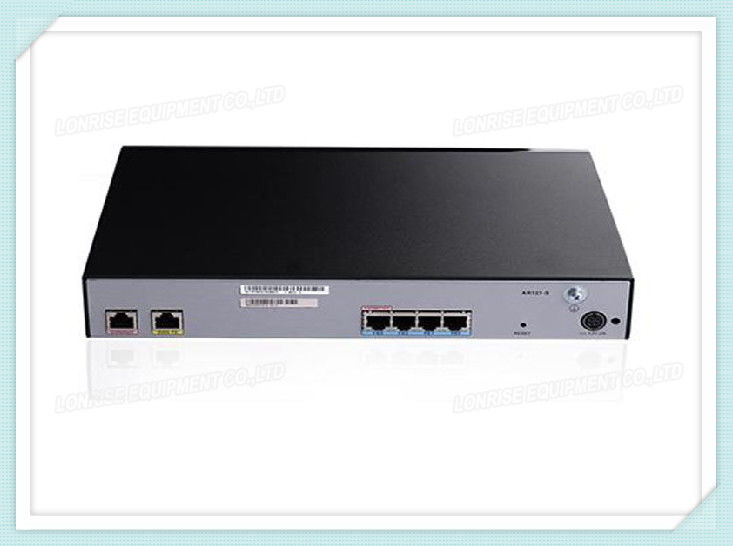

Huawei AR121 AR120 Series Router 2FE WAN 4FE LAN Ethernet Electrical Interface
Huawei AR120 series router AR121 targeted for small enterprise or remote office environment and comes with 1 fast Ethernet 10/100 WAN port, 4FE 10/100 LAN ports.
AR121 Specification |
|
| WAN speed with services* (IMIX) |
50 Mbit/s |
| Number of recommended users | 20 |
| Fixed WAN Ports | 1 x FE (the interface LAN 0 of which can be used as one WAN interface) |
| Fixed Ethernet Switching Ports | 4 x FE (can be configured as WAN interfaces) |
| Fixed Voice Ports | — |
| Integrated 3G | — |
| Wi-Fi | — |
| USB 2.0 Ports | 1 |
| Console Ports | 1 |
| Memory Size | 256 MB |
| Flash Memory | 256 MB |
| PoE Power | — |
| Maximum Power | 24W |
| Power Supply (AC) | 100V to 240V |
| Frequency | 50 Hz/60 Hz |
| Dimensions (H x W x D) | 44.5 mm x 300 mm x 220 mm (1.7 in. x 11.8 in. x 8.66 in.) |
| Operating Temperature | 0oC to 45oC |
| Relative Humidity | 5% to 95% (non-condensing) |
| Basic Features | ARP, PBR, DNS, DHCP, and NAT |
| WLAN (AC) | AP management (AC discovery/AP access/AP management), CAPWAP, WLAN user management, WLAN radio management (802.11a/b/g/n), WLAN QoS (WMM), and WLAN security (WEP/WPA/WPA2/key management) |
| LAN | IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, MSTP, etc. |
| IPv4 Routing | Static route, RIP, and BGP |
| IPv6 Routing | Static route, RIPng, and BGP4+ |
| Multicast | IGMP v1/v2/v3, MLD |
| VPN | IPSec VPN, GRE VPN, DSVPN, L2TP VPN, Smart VPN |
| QoS | MQC, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP WRED), congestion management (LAN interface: SP/WRR/SP + WRR WAN interface: PQ/CBWFQ), and MQC (traffic classification, traffic behavior, and traffic policy) |
| Security | ACL, firewall, 802.1x authentication, AAA authentication, RADIUS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, blacklist, IP source tracing, PKI, and HTTPS |
| Management and Maintenance | Upgrade management, device management, web-based GUI, SNMP v1/v2c/v3 (AR129CGVW-L only), RMON, NTP, CWMP, Auto-Config, site deployment using USB disk, CLI |
FAQ
1. Where do your products come from?
All of our products are from Cisco/Huawei distribution , Cisco/Huawei partner directly. We are Cisco partner at local, with cisco verified certification.
2. If all equioments I can buy service from local cisco ?
For all equipments you can buy service from local, because our goods are smart net free, all with clean serial number.
3. How to ship the goods?
Lonrise work with DHL,FEDEX,UPS and TNT. Your order will be dispatched by express delivery door to door.
4. What’s your payment term?
We always accept 10% advance payment. For long term cooperation, we can consider to apply credit accordingly.
