Product Details:
|
| Brand: | HUAWEI | Memory Size: | 256MB |
|---|---|---|---|
| Model: | AR101W-S | Fixed WAN Ports: | SRU40: 3 X GE (2 X Combo) SRU80: 3 X GE (2 X Combo) |
| IPv4 Routing: | Static Route, RIP | VPN: | IPSec VPN, GRE VPN, And L2TP Client |
| High Light: | cisco network router,cisco modular router |
||

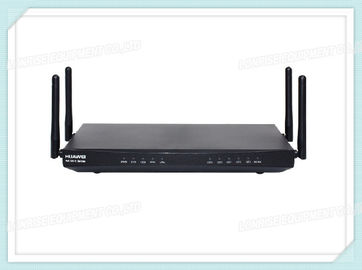

AR101W-S Huawei Enterprise Wireless Router 1 GE WAN 4 GE LAN
AR101W-S-Huawei Enterprise Wireless router, 1 GE WAN, 4 GE LAN.
AR101W-S Specification
AR101W-S Specification |
|
| WAN Speed with Services* (IMIX) |
200 Kpps |
| Number of Recommended Users | 40 Mbps |
| Fixed WAN Ports | 1*GE |
| Fixed Ethernet Switching Ports | 4*GE |
| Integrated LTE | None |
| Wi-Fi | 802.11b/g/n, 2.4GHz, 2 x 2 MIMO 802.11ac, 5GHz, 2 x 2MIMO |
| USB 2.0 Ports | 1 |
| Console Ports | 1 |
| Memory Size | 256MB |
| Flash Memory | 256MB |
| Maximum Power | 24W |
| Power Supply (AC) | 100~240V |
| Frequency | 50/60HZ |
| Dimensions (H x W x D) | 30 x 230 x 130 |
| Operating Temperature | 0～40°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Basic Features | ARP,PBR,NAT,DNS,DHCP |
| WLAN (AP) | AP management, WLAN QoS, WLAN security, WLAN radio channel management, and WLAN user management |
| LAN | IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, MSTP, etc. |
| IPv4 Routing | Static route, RIP |
| IPv6 Routing | Static route, RIPng |
| Multicast | IGMP v1/v2/v3 |
| VPN | IPSec VPN, GRE VPN, and L2TP Client |
| QoS | Priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP WRED), and congestion management (LAN interface: SP/WRR/SP + WRR; WAN interface: PQ/CBWFQ) |
| Security | ACL, firewall, AAA authentication, ICMP attack defense, URPF, and HTTPS |
| Management and Maintenance | Upgrade management, device management, web-based GUI, RMON, CWMP, Auto-Config, site deployment using USB disk, and CLI |
FAQ
1. Where do your products come from?
All of our products are from Cisco/Huawei distribution , Cisco/Huawei partner directly. We are Cisco partner at local, with cisco verified certification.
2. If all equioments I can buy service from local cisco ?
For all equipments you can buy service from local, because our goods are smart net free, all with clean serial number.
3. How to ship the goods?
Lonrise work with DHL,FEDEX,UPS and TNT. Your order will be dispatched by express delivery door to door.
4. What’s your payment term?
We always accept 10% advance payment. For long term cooperation, we can consider to apply credit accordingly.
