Product Details:
|
| Part Number: | 50082265 | Model: | H35M8242HEU1 |
|---|---|---|---|
| Product Category: | Huawei GPON | Ports: | 4 GE + 2 POTS + 1 CATV |
| Condition: | New With 1Year Warranty | Lead Time: | 1-2days |
| High Light: | fiber optic sfp module,sfp optical module |
||
H35M8242HEU1 Huawei HG8242H GPON Terminal SC/APC,CATV,European Plug Adapter, English
HG8242H Overview
H35M8242HEU1 is the Huawei HG8242H GPON Terminal SC/APC,CATV,European Plug Adapter, English

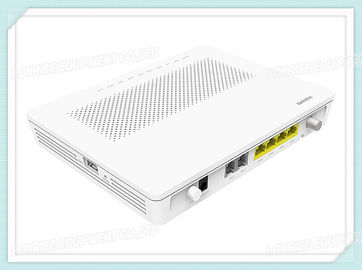

| No. | Port/Button |
| ① | ON/OFF button |
| ② | Power Connector |
| ③ | TEL1 - TEL2 Ports |
| ④ | LAN1 - LAN4 Ports |
| ⑤ | CATV Port |
H35M8242HEU1 Specifications |
|
| Type | EchoLife HG8242H,GPON Terminal, SC/APC, CATV, European Plug Adapter, English |
| Device Parameters | |
| Dimensions (H x W x D) | 220 mm x 160 mm x 32 mm |
| Weight | <500g |
| Operating temperature | 0°C to +40°C |
| Operating humidity | 5% RH to 95% RH (non-condensing) |
| Power adapter input | 100–240 V AC, 50–60 Hz |
| System power supply | 11–13 V DC, 2 A |
| Static power consumption | 5.5 W |
| Maximum power consumption | 14 W |
| Ports | 4GE + 2POTS + CATV |
| Indicators | POWER/PON/LOS/LAN/TEL/CATV |
| Interface Parameters | |
| GPON Port |
• Class B+ • Receiver sensitivity: -27dBm • Wavelengths: US 1310 nm, DS 1490 nm • Wavelength blocking filter (WBF) • Flexible mapping between GEM Port and TCONT • GPON: consistent with the SN or password authentication defined in G.984.3 • Bi-directional FEC • SR-DBA and NSR-DBA |
| Ethernet Port |
• Ethernet port-based VLAN tags and tag removal • 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission • QinQ VLAN • Limit on the number of learned MAC addresses • MAC address learning • Local switching/isolation based on Ethernet ports • Transparent transmission of IPv6 packets at Layer 2 |
| POTS Port | • Maximum REN: 4 • G.711A/μ, G.729a/b, and G.722 encoding/decoding • T.30/T.38/G.711 fax mode • DTMF • Emergency calls (with the SIP protocol) |
| CATV Port | • Bandwidth 54-870 MHz • Output resistance 75 ohms |
| Product Function | |
| Smart Service |
• Association of one account with two POTS ports • L2 forwarding: 1G uplink, 2G downlink |
| Smart interconnection | • SIP/H.248 auto-negotiation |
| QoS | • Ethernet port rate limitation • 802.1p priority • SP/WRR/SP+WRR • Broadcast packet rate limitation • Flow mapping based on the VLAN ID, port ID, or/and 802.1p |
| Security | • MAC address filtering |
| Power Saving | • Indicator power saving • Power consumption reduction of idle components in power-saving state • COCv4 |
| Smart O&M | • Variable-length OMCI messages • Active/Passive rogue ONT detection and isolation • PPPoE/DHCP simulation testing • Call emulation, and circuit test and loop-line test |
| Common O&M | • OMCI/Web UI • Dual-system software backup and rollback • 802.1ag Ethernet OAM • Optical link measurement and diagnosis • Loopback check |
| Multicast | • IGMP v2/v3 snooping • MLD v1/v2 snooping • Fast leave • VLAN tag translation, transparent transmission, and removal for downstream multicast packets • IGMP/MLD protocol packet rate limitation |
