Product Details:
|
| Brand: | CISCO | Model: | AR0M0036SA00 |
|---|---|---|---|
| Service And Router Units (SRUs): | SRU40 | WAN Speed With Services (IMIX): | 1 Gbit/s |
| Power Module Type: | Pluggable Power Module | Fan Type: | Built-in Fans |
| High Light: | cisco ethernet router,cisco modular router |
||

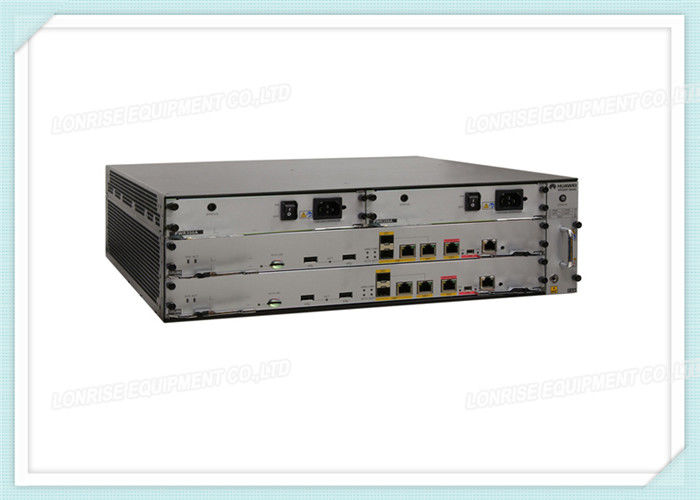

Huawei Integrated Enterprise Router AR0M0036SA00 350W AC Power 4 SIC 2 WSIC
Huawei AR0M0036SA00 is one of the Huawei AR3200 Series routers, which support SRU. These modular chassis allows customers to choose from two main control boards and nine interface cards that provide a wide array of service and performance options. The main control boards are called Service and Router Units (SRUs). AR0M0036SA00 is a Huawei AR3260 chassis with SRU40 offers up to 600Mbps system capacity, 5.5Gbps Firewall performance and 160Gbps switching capacity.
AR0M0036SA00 Specifications |
|
| Type | AR3260, Service and Router Unit 40, 4 SIC, 2 WSIC, 4 XSIC, 350W AC Power |
| Software Version | V200R001C00 and later |
| Dimensions (W x D x H) | 442.0 mm x 470.0 mm x 130.5 mm |
| Memory |
Configured with SRU40/SRU60/SRU80/SRU100: 2 GB Configured with SRU200: 4 GB |
| Flash | 16 MB |
| Hard disk | None |
| Service and Router Unit (SRU) | Supported |
| Network data encryption (SM1/2/3/4) card | Supported |
| Management interface | Supported |
| Console interface (RJ45) | Supported |
| Console interface (Mini USB) | Supported |
| USB 2.0 interface (host) | Supported |
| USB 2.0 interface (OTG) | None |
| Micro SD card (default) | Supported (2 GB) |
| Antenna interfaces | None |
| Service interfaces (standard configuration) |
WAN interfaces: Configured with SRU40/SRU60/SRU80/SRU100: 1 GE electrical interface and 2 GE combo interfaces Configured with SRU200: 2 10 GE optical interfaces and 4 GE combo interfaces LAN interfaces: none |
| Interface number | LAN interfaces: none |
| Extended slots | 4 SIC slots, 2 WSIC slots, and 4 XSIC slots |
| Power module type | Pluggable power module |
| Rated voltage range |
100 V AC/240 V AC, 50 Hz/60 Hz -48 V DC/-60 V DC |
| Maximum voltage range |
90 V AC to 264 V AC, 47 Hz to 63 Hz -38.4 V DC to -72 V DC |
| RPS150 | Not supported |
| PoE | Not supported |
| Maximum PoE power for PDs | None |
| PoE+ interfaces | None |
| Weight | 11 kg (24.2 lb) |
| Mounting brackets | Standard configuration |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Operating altitude | 0-4000 m (0-13123 ft.) |
| Fan type | Pluggable fan module |
| Heat dissipation mode | Forcible air cooling |
| Installation mode | Rack mounting |
