Product Details:
|
| Part Number: | AP8030DN | Brand: | Huawei |
|---|---|---|---|
| Power Input: | PoE: In Compliance With IEEE 802.3at | Operating Temperature: | −40°C To 65°C |
| Radio Protocols: | 802.11a/b/g/n/ac | Maximum Rate: | 1.75 Gbit/s |
| High Light: | cisco aironet access point,cisco wifi access point |
||

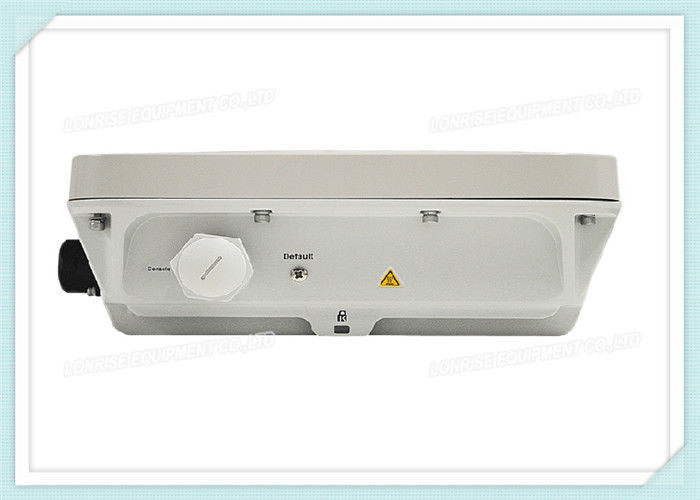

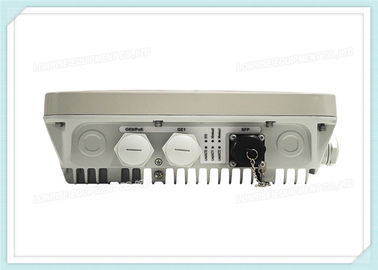

Huawei AP8030DN Access Point sets a new standard in outdoor networking with innovative RF optimization techniques that boosts data rates to 1.75 Gbit/s, nearly tripling the throughput of typical 802.11n APs. This 802.11ac APs offer simultaneous 2.4 GHz and 5 GHz connectivity for large outdoor environments including pedestrian/public areas and bridging, backhaul, and video surveillance scenarios. IEEE 802.11a/b/g/n/ac compatibility, flexible networking, and integrated quality controls ensure high performance, easy migration, and simple deployment.
AP8030DN Specifications |
|||||
| Technical | |||||
| Dimensions (H × W × D) | 39 in. x 10.2 in. x 11.4 in. (100 mm x 260 mm x 290 mm) | ||||
| Weight | 7.94 lb | ||||
| System memory |
256 MB DDR3 64 MB flash memory |
||||
| Power | |||||
| Power input | PoE: in compliance with IEEE 802.3at | ||||
| Maximum power consumption |
20.1W Note: Maximum power consumption depends on local laws and regulations |
||||
| Environment | |||||
| Operating temperature | -40oF to 140oF (-40oC to 60oC) | ||||
| Storage temperature | -40oF to 158oF (-40oC to 70oC) | ||||
| Humidity | 5% to 95% (Non-condensing) | ||||
| Waterproof grade | IP67 | ||||
| Altitude | 196.8 ft. to 16,404.1 ft. (-60m to 5,000m) | ||||
| Radio frequency specifications | |||||
| Antenna Type | Built-in | ||||
| Antenna Gain |
·2.4G: 2.5 dBi ·5G: 4 dBi |
||||
| Maximum Number of Users |
≤ 256 Note: The number of concurrent online users on each VAP or radio frequency cannot exceed 128 |
||||
| Maximum Transmit Power for each Radio Frequency |
2.4 GHz: 23 dBm 5 GHz: 21 dBm Note: The 2.4 GHz radio frequency does not support the 40M bandwidth in F.C.C. regions (including America). The actual transmit power depends on local laws and regulations. You can adjust the transmit power to the maximum transmit power of 15 dB in 1 dB steps |
||||
| Channel Rates |
802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s 802.11b: 1, 2, 5.5, and 11 Mbit/s 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbit/s 802.11n: 6.5 Mbit/s to 450 Mbit/s 802.11ac: 6.5 Mbit/s to 1,300 Mbit/s |
||||
| Receiver Sensitivity |
2.4 GHz 802.11b (CCK) -100 dBm @ 1 Mbit/s -90 dBm @ 11 Mbit/s |
2.4 GHz 802.11g (Non-HT20) -95 dBm @ 6 Mbit/s -82 dBm @ 54 Mbit/s |
2.4 GHz 802.11n (HT20) -95 dBm @ MCS0 -74 dBm @ MCS23 |
2.4 GHz 802.11n (HT40) -92 dBm @ MCS0 -71 dBm @ MCS23 |
|
|
5 GHz 802.11a (non-HT20) -96 dBm @ 6 Mbit/s -80 dBm @ 54 Mbit/s /s |
5 GHz 802.11n (5T20) -95 dBm @ MCS0 -74 dBm @ MCS23 |
5 GHz 802.11n (HT40) -92 dBm @ MCS0 -71 dBm @ MCS23 |
|||
|
5 GHz 802.11ac (VHT20) -95 dBm @ MCS0NSS1 -67 dBm @ MCS9NSS1 |
5 GHz 802.11ac (VHT40) -92 dBm @ MCS0NSS1 -63 dBm @ MCS9NSS3 |
5 GHz 802.11ac (VHT80) -90 dBm @ MCS0NSS1 -59 dBm @ MCS9NSS3 |
|||
