Product Details:
|
| Part Number: | AP6510DN-AGN | Brand: | HUAWEI |
|---|---|---|---|
| Power Input: | PoE: In Compliance With IEEE 802.3at | Operating Temperature: | −40°C To 60°C |
| Maximum Power Consumption: | 25.5W | MIMO: Spatial Streams: | 2 X 2:2 |
| High Light: | cisco aironet access point,cisco wifi access point |
||

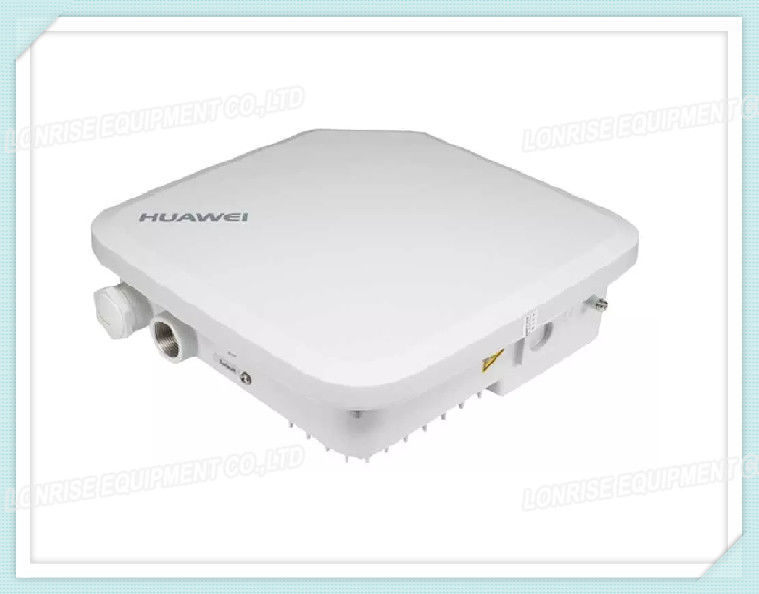

Huawei AP6510DN-AGN performance-enhanced 802.11n outdoor wireless AP provides dual-band connectivity for wireless throughput up to 600 Mbit/s. Industrial-grade protection includes a dustproof and waterproof hardened metal casing that is high- and low-temperature resistant. Huawei AP6510DN Access Point is designed for challenging outdoor or industrial high-demand/density environments, such as pedestrian areas and factories. They also work well in bridge and wireless backhaul applications for wireless harbor, video surveillance, and train or ground vehicle scenarios.
AP6510DN-AGN Specifications |
|||||||
| Technical | |||||||
| Dimensions (H × W × D) | 3.2 in. x 10 in. x 10 in. (83 mm x 255 mm x 255 mm) | ||||||
| Weight | 4.8 lb. (2.2 kg) | ||||||
| System memory |
128 MB DDR2 32 MB Flash |
||||||
| Power | |||||||
| Power input | PoE, in compliance with IEEE 802.3at | ||||||
| Maximum power consumption |
25.5W Note: Maximum power consumption depends on local laws |
||||||
| Environment | |||||||
| Operating temperature | -40oF to 140oF (-40oC to 60oC) | ||||||
| Storage temperature | -40oF to 158oF (-40oC to 70oC) | ||||||
| Humidity | 0% to 100% (Non-condensing) | ||||||
| Waterproof grade | IP67 | ||||||
| Altitude | 196.8 ft. to 16,404.1 ft. (-60m to 5,000m) | ||||||
| Radio | |||||||
| Antenna Type | Dual-polarization or common outdoor | ||||||
| Maximum Number of Concurrent Users | 128 | ||||||
| Maximum Transmit Power |
2.4 GHz: 26 dBm 5 GHz: 20 dBm You can adjust the transmit power to the maximum of 20 dB in 1 dB steps. Note: Actual transmit power depends on local laws and regulations. |
||||||
| Maximum Number of Non-overlapping Channels |
2.4 GHz 802.11b/g ·20 MHz: 3 802.11n ·20 MHz: 3 ·40 MHz: 1 5 GHz 802.11a ·20 MHz: 5 802.11n ·20 MHz: 5 ·40 MHz: 2 Note: The number of non-overlapping channels allowed varies in different countries. |
||||||
| Channel Rates | 802.11b: 1, 2, 5.5, and 11 Mbit/s | ||||||
| 802.11g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s | |||||||
| 802.11n data rate: (2.4 GHz and 5 GHz) | |||||||
| GI2 = 800 ns | GI = 400 ns | ||||||
| 20 MHz (Mbit/s) | 40 MHz (Mbit/s) | 20 MHz (Mbit/s) | 40 MHz (Mbit/s) | ||||
| 6.5 @ MCS10 | 13.5 @ MCS0 | 7.2 @ MCS0 | 15 @ MCS0 | ||||
| 13 @ MCS1 | 27 @ MCS1 | 14.4 @ MCS1 | 30 @ MCS1 | ||||
| 19.5 @ MCS2 | 40.5 @ MCS2 | 21.7 @ MCS2 | 45 @ MCS2 | ||||
| 26 @ MCS3 | 54 @ MCS3 | 28.9 @ MCS3 | 60 @ MCS3 | ||||
| 39 @ MCS4 | 81 @ MCS4 | 43.3 @ MCS4 | 90 @ MCS4 | ||||
| 52 @ MCS5 | 108 @ MCS5 | 57.8 @ MCS5 | 120 @ MCS5 | ||||
| 58.5 @ MCS6 | 121.5 @ MCS6 | 65 @ MCS6 | 135 @ MCS6 | ||||
| 65 @ MCS7 | 135 @ MCS7 | 72.2 @ MCS7 | 150 @ MCS7 | ||||
| 13 @ MCS8 | 27 @ MCS8 | 14.4 @ MCS8 | 30 @ MCS8 | ||||
| 26 @ MCS9 | 54 @ MCS9 | 28.9 @ MCS9 | 60 @ MCS9 | ||||
| 39 @ MCS10 | 81 @ MCS10 | 43.3 @ MCS10 | 90 @ MCS10 | ||||
| 52 @ MCS11 | 108 @ MCS11 | 57.8 @ MCS11 | 120 @ MCS11 | ||||
| 78 @ MCS12 | 162 @ MCS12 | 86.7 @ MCS12 | 180 @ MCS12 | ||||
| 104 @ MCS13 | 216 @ MCS13 | 115.6 @ MCS13 | 240 @ MCS13 | ||||
| 117 @ MCS14 | 243 @ MCS14 | 130 @ MCS14 | 270 @ MCS14 | ||||
| 130 @ MCS15 | 270 @ MCS15 | 144.4 @ MCS15 | 300 @ MCS15 | ||||
|
Note: Modulation Coding Scheme (MCS) index: Determines the spatial flow quantity, modulation, coding rate, and data rate GI Indicates the period in nanoseconds the radio listens between packets |
|||||||
| Receiver Sensitivity |
2.4 GHz 802.11b (CCK) ·-97 dBm @ 1 Mbit/s ·-92 dBm @ 2 Mbit/s ·-92 dBm @ 5.5 Mbit/s ·-90 dBm @ 11 Mbit/ss
5 GHz 802.11a (Non-HT20) ·-90 dBm @ 6 Mbit/s |
2.4 GHz 802.11g (Non-HT20) ·-92 dBm @ 6 Mbit/s ·-91 dBm @ 9 Mbit/s ·-90 dBm @ 12 Mbit/s ·-87 dBm @ 18 Mbit/s ·-83 dBm @ 24 Mbit/s ·-80 dBm @ 36 Mbit/s ·-76 dBm @ 48 Mbit/s ·-74 dBm @ 54 Mbit/s |
2.4 GHz 802.11n (HT20) ·-92 dBm @ MCS0/8 ·-89 dBm @ MCS1/9 ·-86 dBm @ MCS2/10 ·-82 dBm @ MCS3/11 ·-79 dBm @ MCS4/12 ·-74 dBm @ MCS5/13 ·-73 dBm @ MCS6/14 ·-71 dBm @ MCS7/15 |
2.4 GHz 802.11n (HT40) ·-89 dBm @ MCS0/8 ·-86 dBm @ MCS1/9 ·-83 dBm @ MCS2/10 ·-79 dBm @ MCS3/11 ·-76 dBm @ MCS4/12 ·-72 dBm @ MCS5/13 ·-70 dBm @ MCS6/14 ·-68 dBm @ MCS7/15 |
|||
|
5 GHz 802.11a (Non-HT20)
|
5 GHz 802.11n (HT20) ·-84 dBm @ MCS0/8 ·-81 dBm @ MCS1/9 ·-79 dBm @ MCS2/10 ·-76 dBm @ MCS3/11 ·-72 dBm @ MCS4/12 ·-68 dBm @ MCS5/13 ·-67 dBm @ MCS6/14 ·-67 dBm @ MCS7/15 |
5 GHz 802.11n (HT40) ·-81 dBm @ MCS0/8 ·-78 dBm @ MCS1/9 ·-76 dBm @ MCS2/10 ·-73 dBm @ MCS3/11 ·-69 dBm @ MCS4/12 ·-65 dBm @ MCS5/13 ·-64 dBm @ MCS6/14 ·-64 dBm @ MCS7/15 |
|||||
