Product Details:
|
| Product Name: | CISCO Wireless Controller | Product Model: | AIR-CT2504-5-K9 |
|---|---|---|---|
| License Qty: | 5 Access Points | Max Client Support: | 1000 |
| Ports: | 4 X 10/100/1000 Ports | Max WLANs / VLANs: | 16 / 16 |
| High Light: | cisco network controller,cisco wifi controller |
||
The Cisco 2500 series wireless controller enables system wide wireless functions in small to medium-sized enterprises and branch offices. Designed for 802.11n performance, Cisco 2500 series wireless controller is an entry-level controller that provides real-time communication between Cisco Aironet access points to simplify the deployment and operation of wireless networks.As a component of the Cisco unified wireless network, this controller delivers centralized security policies, wireless intrusion prevention system (wIPS) capabilities, RF management and quality of service (QoS) for voice and video. Delivering 802.11n performance and scalability the 2500 series provides low total cost of ownership and flexibility to scale as network requirements grow.
AIR-CT2504-5-K9 Specifications |
|
| Access points | 5 licenses include (75 licenses max) |
| Device Type | Wireless controller |
| Ports | 4 * 10/100/1000 ports |
| Console ports | 10/100/1000 RJ-45 |
| Wireless standards | 802.11a/b/g/d/e/h/k/n/r/u/w/ac |
| Access point License | ●1 AP licese: L-LIC-CT2504-1A ●5 AP licese: L-LIC-CT2504-5A ●25 AP licese: L-LIC-CT2504-25A |
| Security standards | ● Wi-Fi Protected Access (WPA) ● IEEE 802.11i (WPA2, RSN) ● RFC 1321 MD5 Message-Digest Algorithm ● RFC 1851 The ESP Triple DES Transform ● RFC 2104 HMAC: Keyed Hashing for Message Authentication ● RFC 2246 TLS Protocol Version 1.0 ● RFC 2401 Security Architecture for the Internet Protocol ● RFC 2403 HMAC-MD5-96 within ESP and AH ● RFC 2404 HMAC-SHA-1-96 within ESP and AH ● RFC 2405 ESP DES-CBC Cipher Algorithm with Explicit IV ● RFC 2406 IP Encapsulating Security Payload (ESP) ● RFC 2407 Interpretation for ISAKMP ● RFC 2408 ISAKMP ● RFC 2409 IKE ● RFC 2451 ESP CBC-Mode Cipher Algorithms ● RFC 3280 Internet X.509 PKI Certificate and CRL Profile ● RFC 3602 The AES-CBC Cipher Algorithm and Its Use with IPsec ● RFC 3686 Using AES Counter Mode with IPsec ESP ● RFC 4347 Datagram Transport Layer Security ● RFC 4346 TLS Protocol Version 1.1 |
| Encryption | ● WEP and Temporal Key Integrity Protocol-Message Integrity Check (TKIP-MIC): RC4 40, 104 and 128 bits (both static and shared keys) ● Advanced Encryption Standard (AES): CBC, CCM, Counter Mode with Cipher Block Chaining Message Authentication Code Protocol (CCMP) ● DES: DES-CBC, 3DES ● Secure Sockets Layer (SSL) and Transport Layer Security (TLS): RC4 128-bit and RSA 1024- and 2048-bit ● DTLS: AES-CBC |
| Authentication, Authorization, and Accounting (AAA) | ● IEEE 802.1X ● RFC 2548 Microsoft Vendor-Specific RADIUS Attributes ● RFC 2716 PPP EAP-TLS ● RFC 2865 RADIUS Authentication ● RFC 2866 RADIUS Accounting ● RFC 2867 RADIUS Tunnel Accounting ● RFC 3576 Dynamic Authorization Extensions to RADIUS ● RFC 3579 RADIUS Support for EAP ● RFC 3580 IEEE 802.1X RADIUS Guidelines ● RFC 3748 Extensible Authentication Protocol ● Web-based authentication ● TACACS support for management users |
| Limitation | ● Does not support wired guest access ● Cannot be configured as an auto anchor controller. However you can configure it as a foreign controller ● Supports only multicast-multicast mode ● Does not support bandwidth contract feature ● Does not support access points in direct connect mode ● Does not support service port ● Apple Talk Bridging ● LAG ● Wired Guest |

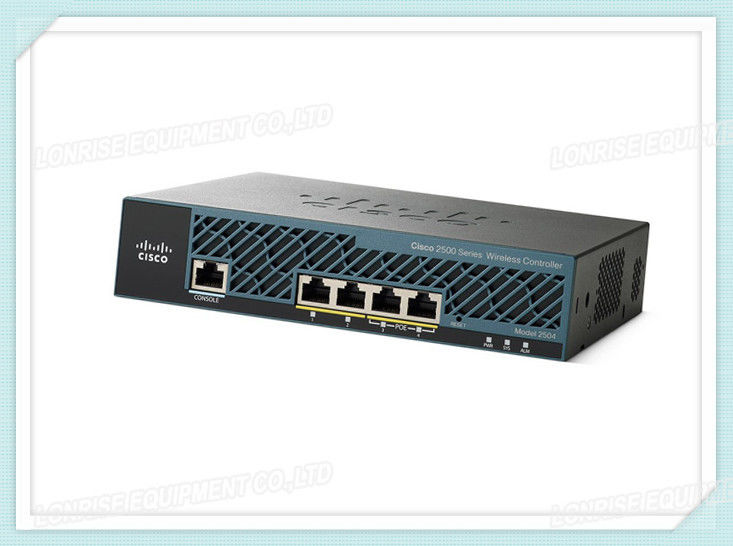

shows the front panel of AIR-CT2504-5-K9
| ① | CPU console port | ⑤ | Power LED |
| ② | 2 GigE ports | ⑥ | System LED |
| ③ | 2 GigE POE ports | ⑦ | Alarm LED |
| ④ | Reset button | ||
·
Do not connect a Power over Ethernet (PoE) cable to the console port. It will damage the controller.
shows the back panel of AIR-CT2504-5-K9.
| ① | POWER 48VDC | ② | Cable Lock slot |
shows some recommended licenses for this wireless controller.
| License | Description |
| AIR-CT2504-RMNT | Cisco 2500 Wireless Controller Accessory - AIR-CT2504-RMNT 2504 Wireless Controller Rack Mount Bracket for Cisco 2500 |
| L-LIC-CT2504-1A | Cisco 2500 Wireless Controller License - L-LIC-CT2504-1A 1 AP Adder Licenses for 2504 WLAN Controller for Cisco 2500 |
| L-LIC-CT2504-5A | Cisco 2500 Wireless Controller License - L-LIC-CT2504-5A 5 AP Adder Licenses for 2504 WLAN Controller (e-Delivery) for Cisco 2500 |
| L-LIC-CT2504-25A | Cisco 2500 Wireless Controller License - L-LIC-CT2504-25A 25 AP Adder Licenses for 2504 WLAN Controller (e-Delivery) for Cisco 2500 |
| Models | AIR-CT2504-5-K9 | AIR-CT2504-15-K9 | AIR-CT2504-25-K9 | AIR-CT2504-50-K9 |
| Access Points | 5 | 15 | 25 | 50 |
| Max Access Points | 75 | 75 | 75 | 75 |
| Max Client Support | 1000 | 1000 | 1000 | 1000 |
| Ports | 4 x 10/100/1000 ports | 4 x 10/100/1000 ports | 4 x 10/100/1000 ports |
4 x 10/100/1000 ports
|
