Product Details:
|
| Type: | Cisco Ethernet Network Switch | Model: | WS-C2960X-24TS-LL |
|---|---|---|---|
| Port Type: | 24 X Ethernet 10/100/1000 Gigabit Ports | Uplink Interfaces: | 2 X 1G SFP |
| Condition: | New And Original In The Box | Warranty: | 1 Year |
| High Light: | optical ethernet switch,poe ethernet switch |
||

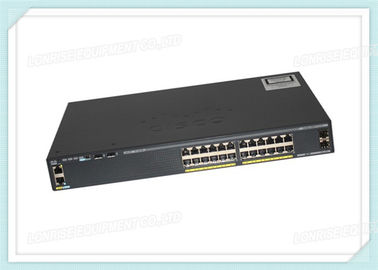

Cisco Catalyst 2960-X series switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications. Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations.
Table 1 shows the Quick Specs.
| Product Code | WS-C2960X-24TS-LL |
| Enclosure Type | Rack-mountable - 1U |
| Feature Set | LAN Lite |
| Uplink Interfaces | 2 x 1G SFP |
| Ports | 24 x Ethernet 10/100/1000 Gigabit ports |
| Forwarding Bandwidth | 50Gbps |
| Switching Bandwidth | 100Gbps |
| RAM | 256 MB |
| Flash Memory | 64 MB |
| Dimensions | 44.5 cm x 27.9 cm x 4.5 cm |
| Package Weight | 9.19 Kg |
| 1 | Ethernet management port | 2 | Mode button |
| 3 | Switch LEDs | 4 | USB mini-Type B (console) port |
| 5 | USB Type A ports | 6 | SFP module ports |
| 7 | 24*10/100/1000 ports SFP module ports | 8 | CONSOLE LED |
| 9 | MGMT LED | 10 | RJ-45 console port |
| 1 | Fan Exhaust | 2 | RPS Connector |
| 3 | AC power connector | ||
Table 2 shows some recommended
| Models | Description |
| GLC-LH-SMD | Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM |
| GLC-SX-MMD | 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
| CAB-CONSOLE-RJ45 | Console Cable 6ft with RJ45 and DB9F |
| CAB-CONSOLE-USB | Console Cable 6 ft with USB Type A and mini-B |
Table 3 shows the comparison between WS-C2960C-12PC-L and WS-C2960C-8PC-L.
| Models | WS-C2960C-12PC-L | WS-C2960C-8PC-L |
| Uplinks | 2 x 1G copper or 2 x 1G SFP | 2 x 1G copper or 2 x 1G SFP |
| Ports | 12 x 10/100 Fast Ethernet POE Ports | 8 x 10/100 Fast Ethernet POE Ports |
| Available POE Power | 124W | 124W |
| Feature set | LAN Base | LAN Base |
WS-C2960X-24TS-LL Specification |
|
| General | |
| model info: | WS-2960X-24TS-LL |
| enclosure type | Rack-mountable - 1U |
| Ports | 24 x 10/100/1000 + 2 x 1G SFP |
| Network management Interface | 10/100 Mbps Ethernet (RJ-45) |
| Available PoE Power | None |
| Forwarding bandwidth(Gbps) | 50Gbps |
| Maximum stacking number | None |
| Stack Bandwidth | None |
| Forwarding Performance | 68.5Mpps |
| Switching bandwidth | 100Gbps |
| Maximum active VLANs | 64 |
| MAC Address Table Size | 16K (default) |
| CPU | APM86392 600MHz dual core |
| RAM | 256 MB |
| Flash Memory | 64 MB |
| Status Indicators | Per-port status: Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex, PoE, and link speed |
| Expansion / Connectivity | |
| Console ports | USB (Type-B), Ethernet (RJ-45) |
| Stacking cable | None |
| Power Redundancy | Option (PWR-RPS2300) |
| Voltage range (Auto) | 110V-240V |
| Power Consumption Operational | 0.035KVA |
| Miscellaneous | |
| Width | 17.5 Inches (44.5 cm) |
| Depth | 11 Inches (27.9 cm) |
| Height | 1.75 Inches (4.5 cm) |
| Package Weight | 8.2 Pounds (9.19Kg) |
| Weight | 20.26 Pounds (3.7Kg) |
| Rack Mounting Kit | optional |
| MTBF in hours | 622,350 |
| Compliant Standards | IEEE 802.1D Spanning Tree Protocol ● IEEE 802.1p CoS Prioritization ● IEEE 802.1Q VLAN ● IEEE 802.1s ● IEEE 802.1w ● IEEE 802.1X ● IEEE 802.1ab (LLDP) ● IEEE 802.3ad ● IEEE 802.3af and IEEE 802.3at ● IEEE 802.3ah (100BASE-X single/multimode fiber only) ● IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports IEEE 802.3 10BASE-T ● IEEE 802.3u 100BASE-TX ● IEEE 802.3ab 1000BASE-T ● IEEE 802.3z 1000BASE-X ● RMON I and II standards ● SNMP v1, v2c, and v3 ● IEEE 802.3az ● IEEE 802.1ax |
| System software / license | |
| System software | IOS LAN Lite |
| license | NERGY-MGT-100-K9, EW-DO-100-DE |
| features |
● Jumbo Frames ● VLANS ●Voice Vlan ●VTPv2 ●CDPv2 ●LLDP ● 802.3ad LACP ● PVST/PVST+ ● 802.1W/802.1S ● Port Fast/Uplink Fast ● port CoS Trust and Override ● Scheduling ● Priority Queuing ● Configure CoS Priority Queues ● Weighted Tail Drop ● DSCP transparency |
| Network security |
● SSH, SSL and SCP ● RADIUS and TACACS+ ● SNMPv3 crypto ● 802.1x ● 802.1x Accounting / MIB ● 802.1x w/ port security ● 802.1x w/Voice VLAN ● 802.1x Guest VLAN ● 802.1x VLAN assignment ● 802.1x MAC-Auth Bypass ● BPDU/Root Guard ● Port Security ● Private VALN Edge ● Storm Control ● Block unknown unicast and multicast ● IGMP Snooping ● IGMP Filter/Throttle |
| Management and Troubleshooting |
● Auto-MDOX ●TDR ● UDLD ● IP SLA Responder ● layer 2 / IP Traceroute ● SPAN ● RSPAN ● Express Setup ● Device Manager ● Cisco Network Assistant ● Smartports + Advisor ● Troubleshooting Advisor ● Drag-and-drop Cisco IOS Upgrade ● IP Address DHCP ● Autoinstall with saved configuration ● Configuration Replace ● DHCP Auto Image Upgrade ● DHCP Port Based Allocation ● Error Disable MIB |
| Environmental Ranges | |
| Operating temperature up to 5000 ft (1500 m) | 23ºF to 113º |
| Operating temperature up to 10,000 ft (3000 m) | 23ºF to 104ºF |
| Short-term exception at sea level* | 23ºF to 131ºF |
| Short-term exception up to 5000 feet (1500 m)* | 23ºF to 122ºF |
| Short-term exception up to 10,000 feet (3000 m)* | 23ºF to 113ºF |
| Short-term exception up to 13,000 feet (4000 m)* | 23º to 104ºF |
| Storage temperature up to 15,000 feet (4573 m) | -13º to 158ºF |
| Operating altitude | Up to 10,000 feet |
| Storage altitude | Up to 13,000 feet |
| Operating relative humidity | 10% to 95% noncondensing |
| Storage relative humidity | 10% to 95% noncondensing |
