Product Details:
|
| Product Type:: | Huawei Access Point | Model: | AP6052DN |
|---|---|---|---|
| Built-in Bluetooth: | BLE4.1 | Antenna Gain: | 2.4G / 5G (switchable): 2 DBi/ 2.8 DBi 5G (non-switchable): 2.8 DBi |
| Radio Protocols: | 802.11a/b/g/n/ac/ac Wave 2 | Warranty: | New With 1 Year |
| High Light: | cisco poe wifi access point,cisco aironet access point |
||

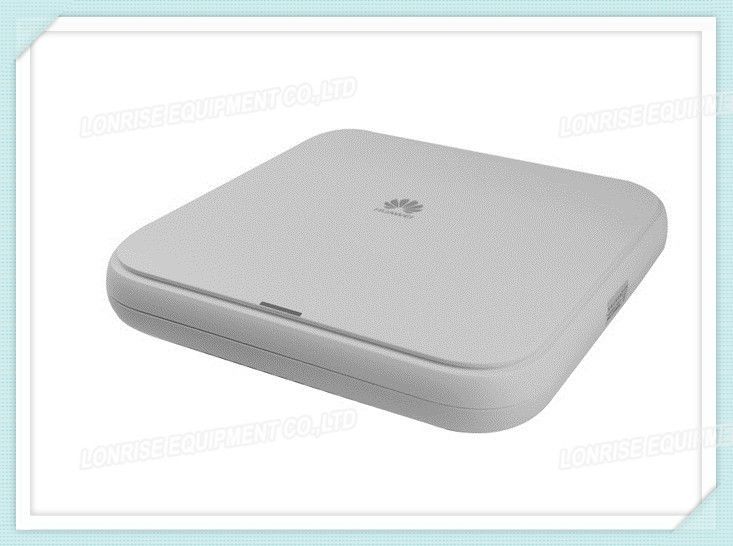

Huawei AP6052DN is the latest-generation technology-leading 802.11ac Wave 2 wireless access point (AP) that supports 4x4 MIMO four spatial streams, and 2.4G-to-5G switchover. In dual-5G mode, the device rate can reach up to 3.46 Gbit/s.
The AP has built-in omnidirectional antennas and supports smooth evolution from 802.11n to 802.11ac. It meets the bandwidth requirements of large-bandwidth services such as High Definition (HD) video streams, multimedia, and desktop cloud services, delivering smooth and high-quality wireless services to enterprise users. With industry-leading capabilities in terms of signal coverage, access density, and operation stability, the AP provides high-quality mobile cloud access services to help customers build the optimal wireless network. The AP6052DN complies with 802.11ac Wave 2 and provides the 5GE uplink port, easily eliminating uplink bandwidth bottlenecks. It is more intelligent, secure, and easier to use. The AP6052DN delivers industry-leading performance in a rugged, attractive enclosure and is ideal for indoor coverage scenarios, such as enterprise office and education scenarios.
ˉ 802.11ac Wave 2 compliance, MU-MIMO (4SU-3MU), delivering services simultaneously on 2.4G and 5G radios; 800 Mbit/s at 2.4 GHz; 1.73 Gbit/s at 5 GHz; and 2.53 Gbit/s for the device.
ˉ 2.4G-to-5G switchover. In dual-5G mode, the device rate can reach up to 3.46 Gbit/s.
ˉ 5GE uplink interface that can connect to a 100M/1000M/2.5G interface, to improve the service load capability.
ˉ Built-in Bluetooth (BLE4.1) to implement precise location with eSight.
ˉ USB interface used for external power supply and storage.
ˉ Supports the Fat, Fit, and cloud modes and enables Huawei cloud-based management platform to manage and operate APs and services on the APs, reducing network O&M costs
| Specifications | AP6052DN |
| Dimensions (H x W x D) | 52 mm x 220 mm x 220 mm |
| Power Input | DC: 42.5V to 57V PoE power supply: In compliance with IEEE 802.3at/bt; only the 2.5G/5G port supports PoE input |
| Maximum Power Consumption | DC/802.3bt power supply: 32W (excluding the output power of the USB port) 802.3at power supply: 25.5W (the USB function and the 5 Gbit/s mode of network ports are unavailable.) Note: The actual maximum power consumption depends on local laws and regulations |
| Operating Temperature | –10°C to 50°C |
| Antenna Type | Built-in antennas (horizontal beamwidth 360°) |
| Maximum Number of Concurrent Users | ≤ 512 |
| Maximum Transmit Power | 2.4G/5G (switchable): 26 dBm/21 dBm (combined power) 5G (non-switchable): 24 dBm (combined power) Note: The actual transmit power depends on local laws and regulations |
| MIMO: Spatial Streams | 4 x 4:4 |
| Radio Protocols | 802.11a/b/g/n/ac/ac Wave 2 |
| Maximum Rate | 3.46 Gbit/s |
3. Advantages
4 .Packaging and shiping
