Product Details:
|
| Part Number: | WS-C3850-12XS-S | Brand: | CISCO |
|---|---|---|---|
| Ports: | 12 X SFP+ Ports | Enclosure Type: | Rack-mountable - 1U |
| Stack Bandwidth: | 480Gbps | Forwarding Performance: | 227.28Mpps |
| High Light: | poe ethernet switch,fiber optic network switch |
||

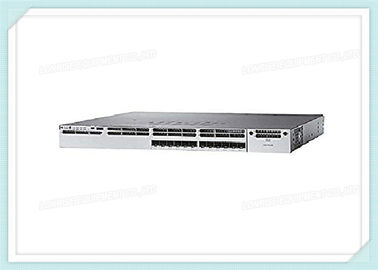

WS-C3850-12XS-S Overview
WS-C3850-12XS-S switch provides 12 ports 10Gbps SFP+ connection with upgradeable IP base image and build in wireless controller provide fully convergence between wired and wireless on a single platform. It only supports 4 × 10 Gigabit Ethernet network module uplinks option.
WS-C3850-12XS-S Specification |
|
| model info: | WS-C3850-12XS-S |
| enclosure type | Rack-mountable - 1U |
| Ports | 12 x SFP+ ports |
| Network management Interface | ● Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling ● Management console port: RJ-45-to-DB9 cable for PC connections |
| Available PoE Power | None |
| Switching Capacity | 320Gbps |
| Maximum stacking number | 9 |
| Stack Bandwidth | 480Gbps |
| Forwarding Performance | 227.28Mpps |
| FNF entries | 48,000 flows |
| Maximum VLANs IDs | 1,000 |
| MAC Address Table Size | 32K |
| CPU | Multicore CPU |
| RAM | 4 G |
| Flash Memory | 4 G |
| Wireless | |
| Number of AP per switch/stack | 100 |
| Number of wireless clients per switch/stack | 2000 |
| Total number of WLANs per switch | 64 |
| Wireless bandwidth per switch | up to 20Gbps |
| Supported Aironet AP series | 3600, 3500, 2600, 1600, 1260, 1140, 1040 |
| Expansion / Connectivity | |
| Console ports | USB (Type-B), Ethernet (RJ-45) |
| Expansion Slot(s) | 1 network module slot and 1 power redundant slot |
| Network Modules Selection | ● C3850-NM-4-1G: 4 x 1G uplinks network module ●C3850-NM-2-10G: 2 x 10G or 4 x 1G uplinks network module |
| Stacking cable | ●STACK-T1-50CM StackWise stacking cable with a 0.5 m length ●STACK-T1-1M StackWise stacking cable with a 1.0 m length ●STACK-T1-3M StackWise stacking cable with a 3.0 m length |
| Stack Power Cable (recommended) | ●CAB-SPWR-30CM stack power cable with a 30CM length ●CAB-SPWR-150CM stack power cable with a 150CM length |
| Power supply | PWR-C1-350WAC |
| Power Device | Power supply - redundant - plug-in module |
| Power Redundancy | optional |
| Voltage range (Auto) | 100V-240V |
| Power Consumption of standalone(in Watts) | 109.75 (Max) |
| Miscellaneous | |
| Width | 17.5 Inches (44.5 cm) |
| Depth | 17.7 Inches (45.0 cm) |
| Height | 1.75 Inches (4.45 cm) |
| Weight | 12.9 Pounds (5.8 Kg) |
| Rack Mounting Kit | optional |
| MTBF in hours | 371,440 |
| Compliant Standards |
● IEEE 802.1D Spanning Tree Protoco ● IEEE 802.3 10BASE-T |
| System software / license | |
| System software | IOS IP Base (Upgradable) |
| EnergyWise license | ENERGY-MGMT, ENERGY-MGT-100-K9 |
| Software license |
●C3850-12-S-E: IP Base to IP Services RTU paper license ●L-C3850-12-S-E: IP Base to IP Services RTU electronic license |
| Features |
●RPS Support ● Jumbo Frames ● VLANS ●Voice Vlan ●VTPv2 ●CDPv2 ●LLDP ● 802.3ad LACP and PAgP ● PVST/PVST+ ● 802.1W/802.1S ●Port Fast/Uplink Fast ●Dynamic Trunking Protocol (DTP) ● port CoS Trust and Override ● Trusted Boundary ● ACL Classification ●ingress Policing ● Auto QoS ● Per VLAN policies ● 802.1p queues ● Scheduling ● Priority Queuing ● Configure CoS Priority Queues ●Configure CoS Priority Queues ● Configure Queue Weights ● Configure Buffers and Thresholds ●Class & Policy Maps ● Modify CoS and DSCP Mapping ● Weighted Tail Drop ● IGMPv1,v2,v3 and MLDv1, v2 ● DHCP server ● DSCP transparency ● HSRP, VRRP, BLGP ● RIPv1, v2 EIGRP, PIM OSPF, OSPFv3, EIGRPv6, BGPv4, IS-ISv4 ● VRF-lite ● PIM-SM/DM, PIM sparse-dense mode, SSM ● Flexible Netflow |
| Advanced Network security | ● Port security ● DHCP snooping ●Dynamic ARP inspection (DAI) ● IP source guard ●The Unicast Reverse Path Forwarding (uRPF) ● Bidirectional data support on a SPAN ● User authentication ● Private VLAN ●Router and VLAN ACLs ● complete identity and security ● Multidomain authentication ● MAC address notification ● IGMP filtering ● Cisco security VLAN ACL ● Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3) ● Port-based ACLs ● TrustSec SXP ● IEEE 802.1ae ● TACACS+ and RADIUS authentication ● Cisco standard and extended IP security router ACLs ● Bridge protocol data unit (BPDU) Guard ● Spanning Tree Root Guard (STRG) ● Wireless end-to-end security |
| Technical Support and Services | ● Cisco SMARTnet Service ● Cisco Smart Foundation Service ● Cisco SP Base Service ● Cisco Focused Technical Support Services |
| Environmental Ranges | |
| With AC power supply Operating environment and altitude | |
| Operating temperature up to 5000 ft (1500 m) | 23ºF to 113ºF (-5ºC to +45ºC) |
| Operating temperature up to 10,000 ft (3000 m) | 23ºF to 104ºF (-5ºC to +40ºC) |
| Short-term exception at sealevel with single fan failure | 23ºF to 113ºF (-5ºC to +45ºC) |
| Short-term exception up to 5000 feet (1500 m) | 23ºF to 122ºF (-5ºC to 50ºC) |
| Short-term exception up to 10,000 feet (3000 m) | 23ºF to 113ºF (-5ºC to 45ºC) |
| With DC power supply Operating environment and altitude (NEBS) | |
| Operating temperature up to 6000 ft (1800 m) | 23ºF to 113ºF (-5ºC to +45ºC) |
| Operating temperature up to 10,000 ft (3000 m) | 23ºF to 104ºF (-5ºC to +40ºC) |
| Operating temperature up to 13,000 ft (4000m) | 23ºF to 95ºF (-5ºC to 35ºC) |
| Short-term exception up to 6,000 feet (1800 m) | 23ºF to 131ºF (-5ºC to +55ºC) |
| Short-term exception up to 10,000 feet (3000 m) | 23ºF to 122ºF (-5ºC to +50ºC) |
| Short-term exception up to 13,000 feet (4000 m) | 23ºF to 113ºF (-5ºC to +45ºC) |
| Short-term exception at sealevel with single fan failure | 23ºF to 113ºF (-5ºC to +45º) |
| Storage environment | -40ºF to 160ºF (-40ºC to 70ºC) |
| Operating altitude | Up to 13,000 Feet (Up to 4000 Meters) |
| Storage altitude | Up to 15,000 Feet (Up to 4573 Meters) |
| Operating relative humidity | 10% to 95% noncondensing |
| Storage relative humidity | 10% to 95% noncondensing |
FAQ
1. Where do your products come from?
All of our products are from Cisco/Huawei distribution , Cisco/Huawei partner directly. We are Cisco partner at local, with cisco verified certification.
2. If all equioments I can buy service from local cisco ?
For all equipments you can buy service from local, because our goods are smart net free, all with clean serial number.
3. How to ship the goods?
Lonrise work with DHL,FEDEX,UPS and TNT. Your order will be dispatched by express delivery door to door.
4. What’s your payment term?
We always accept 10% advance payment. For long term cooperation, we can consider to apply credit accordingly.
