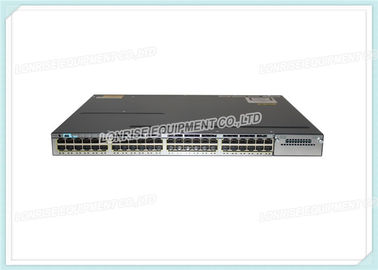

Cisco Fiber Optic Switch WS-C3750X-48PF-L Stackable 48 10/100/1000 Ethernet Full PoE Ports

Cisco Fiber Optic Switch WS-C3750X-48PF-L Stackable 48 10/100/1000 Ethernet Full PoE Ports
Cisco Fiber Optic Switch WS-C3750X-48PF-L Stackable 48 10/100/1000 Ethernet Full PoE Ports Cisco Fiber Optic Switch WS-C3750X-48PF-L Stackable 48 10/100/1000 Ethernet Full PoE Ports

Large Image :  Cisco Fiber Optic Switch WS-C3750X-48PF-L Stackable 48 10/100/1000 Ethernet Full PoE Ports

Product Details:
Place of Origin: CHINA
Brand Name: CISCO
Certification: CE
Model Number: WS-C3750X-48PF-L
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: Negotiable
Packaging Details: NEW IN BOX
Delivery Time: 1-2 DAYS
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 50 UNITS/MONTH

Cisco Fiber Optic Switch WS-C3750X-48PF-L Stackable 48 10/100/1000 Ethernet Full PoE Ports

Description
Part Number: WS-C3750X-48PF-L Brand: CISCO
Product Type: Switch - 48 Ports - Managed - Stackable Switch Port Density - Uplinks: 8 X 10/100/1000 Ethernet Ports
Form Factor: Fixed, Rack Mountable 1U, Stackable/Clustering Power Over Ethernet (PoE): Yes
High Light:

optical ethernet switch

,

fiber optic network switch





Cisco Fiber Optic Switch WS-C3750X-48PF-L Stackable 48 10/100/1000 Ethernet Full PoE ports





WS-C3750X-48PF-L Overview



Stackable 48 10/100/1000 Ethernet Full PoE ports

Four optional uplink network modules with GE or 10GE ports

Industry first PoE+ with 30W power on all ports in 1 rack unit (RU) form factor

Dual redundant, modular power supplies and fans

Media Access Control Security (MACsec) hardware-based encryption

Flexible NetFlow and switch-to-switch hardware encryption with the Service Module uplink

USB Type-A and Type-B ports for storage and console respectively and an out-of-band Ethernet management port

StackWise Plus

Cisco StackPowerTM technology: An innovative feature and industry first for sharing power among stack members

Cisco StackWise Plus technology for ease of use and resiliency with 64 Gbps of throughput

Investment protection with backward compatibility with all other models of Cisco Catalyst 3750 Series Switches









WS-C3750X-48PF-L Specification



WS-C3750X-48PF-L data sheet
Manufacturer Cisco Systems, Inc
Manufacturer Part Number WS-C3750X-48PF-L
Product Type Switch - 48 ports - Managed - stackable
Form Factor Fixed, Rack Mountable 1U, Stackable/Clustering
Switch Port density - Uplinks 48 x 10/100/1000 Ethernet Ports
Power Over Ethernet (PoE) Yes
Max Number of Stacks 9
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, FTP, TFTP, SSH, CLI
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Features Hot swap module replacement, Layer 2 switching, dynamic IP address assignment , DHCP support, power over Ethernet (PoE), auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), PoE+, Per-VLAN Spanning Tree Plus (PVST+)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
DRAM Memory 256 MB
Flash Memory 128 MB Flash
LED Status Lights Indicators Port status, link activity, port transmission speed, port duplex mode, power, system
Connectivity / Expansion Slots
Interfaces 48 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - PoE
USB : 1 x 4 PIN USB Type A
1 x console - mini-USB Type B - management
1 x RS-232 - RJ-45 - management
1 x 10Base-T/100Base-TX - RJ-45 - management
Network stack device : 2 x
Expansion Slots Total (Free) 1 ( 1 ) x Expansion Slot
Power Supply Specifications
Power Device Power supply - redundant - plug-in module
Installed Qty 1 (installed) / 2 (max)
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Voltage Required AC 120/230 V ( 50/60 Hz )
Features Redundant Power System (RPS) connector
Dimensions / Weight / Miscellaneous
Width 44.5 cm
Depth 49.5 cm
Height 4.5 cm
Weight 7.6 kg
Rack Mounting Kit Optional
MTBF 139,913 hour(s)
Compliant Standards CE, TUV GS, CISPR 22 Class A, GOST, cUL, NOM, VCCI Class A ITE, EN55022 Class A, CB, AS/NZS 60950-1, AS/NZ 3548 Class A, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, FCC Part 15 A, CSA C22.2 No. 60950-1
System Software
Software Included Cisco IOS LAN Base
Manufacturer Warranty
Service & Support Limited lifetime warranty
Service & Support Details Limited warranty - lifetime
Limited warranty - power supply and fans - 5 years
New releases update






FAQ




1. Where do your products come from?
All of our products are from Cisco/Huawei distribution , Cisco/Huawei partner directly. We are Cisco partner at local, with cisco verified certification.


2. If all equioments I can buy service from local cisco ?
For all equipments you can buy service from local, because our goods are smart net free, all with clean serial number.


3. How to ship the goods?
Lonrise work with DHL,FEDEX,UPS and TNT. Your order will be dispatched by express delivery door to door.


4. What’s your payment term?
We always accept 10% advance payment. For long term cooperation, we can consider to apply credit accordingly.
