Product Details:
|
| Part Number: | WS-C3560X-24T-S | Brand: | CISCO |
|---|---|---|---|
| Product Type: | Witch - 24 Ports - L3 - Managed | Form Factor: | 240W |
| Switch Ports: | 24 X 10/100/1000 Ethernet Ports | Performance: | Switching Capacity : 160 Gbps |
| Flash Memory: | 64 MB Flash | Memory DRAM: | 256 MB |
| High Light: | poe ethernet switch,fiber optic network switch |
||

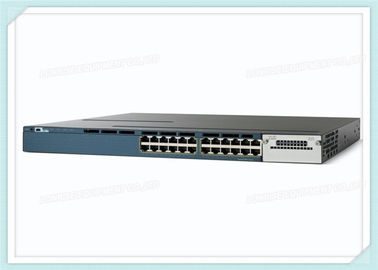

Cisco Catalyst WS-C3560X-24T-S is 24 Gigabit Ethernet ports standalone switch with no stacking option in IP base feature set. Four optional network modules and license-base software feature offer flexibility, scalability and feature extensibility in order to reduce the cost of development of business needs. IP base feature set provide up to 1005-Vlans and basic layer 3 routing features, advanced security features and management features. WS-C3560X-24T-S is designed for enterprise access/aggregation layer switching; however, customers can transparently upgrade the software feature to by purchasing IP services license to activity advanced layer 3 capability to fully support BGP, EIGRP, OSFP routing. WS-C3560X-24T-S switch comes with one default power supply module, customers can purchase additional power supply module insert into power supply bay 2 in order to power redundancy.
| WS-C3560X-24T-S data sheet | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | WS-C3560X-24T-S |
| Product Type | Switch - 24 ports - L3 - Managed |
| Form Factor | Rack mountable - 1U |
| Switch Ports | 24 x 10/100/1000 Ethernet Ports |
| Performance | Switching capacity : 160 Gbps |
| Routing Protocol | RIP-1, RIP-2, HSRP, static IP routing, RIPng |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
| Features | Hot swap module replacement, Layer 3 switching, Layer 2 switching, dynamic IP address assignment , DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), EIGRP Stub Routing |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae |
| DRAM Memory | 256 MB |
| Flash Memory | 64 MB Flash |
| Status Indicators | Port status, link activity, port transmission speed, port duplex mode, power, system |
| Connectivity Slots | |

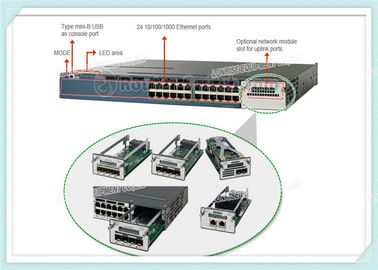

| Interfaces | 24 x 10Base-T/100Base-TX/1000Base-T - RJ-45 USB : 1 x 4 PIN USB Type A 1 x console - mini-USB Type B - management 1 x RS-232 - RJ-45 - management 1 x 10Base-T/100Base-TX - RJ-45 - management |
| Expansion Slot(s) | 1 (total) / 1 (free) x Expansion Slot |
| Power Supply | |

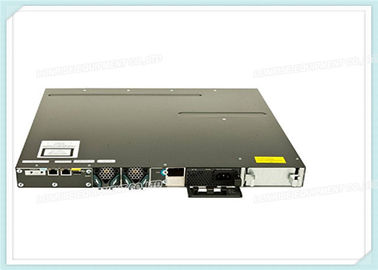

| Power Device | Power supply - redundant - plug-in module |
| Installed Qty | 1 (installed) / 2 (max) |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Features | Redundant Power System (RPS) connector |
| Dimensions / Weight / Miscellaneous | |
| Width | 44.5 cm |
| Depth | 46 cm |
| Height | 4.5 cm |
| Weight | 7 kg |
| Rack Mounting Kit | Optional |
| MTBF | 208,218 hour(s) |
| Compliant Standards | CE, TUV GS, CISPR 22 Class A, GOST, cUL, NOM, VCCI Class A ITE, EN55022 Class A, CB, AS/NZS 60950-1, AS/NZ 3548 Class A, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, FCC Part 15 A, CSA C22.2 No. 60950-1 |
| System Software | |
| Software Included | Cisco IOS IP Base |
FAQ
1. Where do your products come from?
All of our products are from Cisco/Huawei distribution , Cisco/Huawei partner directly. We are Cisco partner at local, with cisco verified certification.
2. If all equioments I can buy service from local cisco ?
For all equipments you can buy service from local, because our goods are smart net free, all with clean serial number.
3. How to ship the goods?
Lonrise work with DHL,FEDEX,UPS and TNT. Your order will be dispatched by express delivery door to door.
4. What’s your payment term?
We always accept 10% advance payment. For long term cooperation, we can consider to apply credit accordingly.
