Product Details:
|
| Part Number: | WS-C3560CX-12PD-S | Brand: | CISCO |
|---|---|---|---|
| PoE Output Ports: | 12 PoE+ | Available PoE Power: | 240W |
| Uplink Interfaces: | 2 X 1G Copper Plus 2 X 10G SFP+ | Ports: | 12 X 10/100/1000 Gigabit Ethernet |
| Flash Memory: | 128 MB | Memory DRAM: | 512 MB |
| High Light: | optical ethernet switch,poe ethernet switch |
||

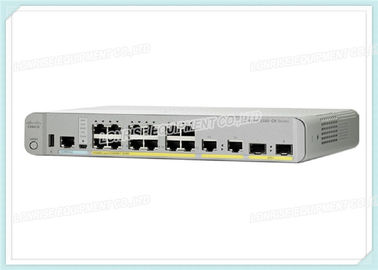

The Cisco Catalyst 3560-CX series WS-3560CX-12PD-S Gigabit Ethernet managed switches with quiet, fan-less design and compact footprint delivers flexible mounting options and shorter cable runs to eliminate the needs for expensive and inflexible cabling infrastructure.
WS-C3560CX-12PD-S Specification |
|
| Ethernet Ports | 12 x 10/100/1000 Gigabit Ethernet |
| PoE Output Ports |
12 PoE+ |
| Available PoE Power |
240W |
| Uplinks |
2 x 1G copper plus 2 x 10G SFP+ |
| Default Software | IP Base (IP Services with RTU License) |
| Powering Option | Internal power supply |
| Available PoE Power (W) | 240W |
| Can Switch Be Powered with Uplinks? | No |
| Forwarding Bandwidth | 34 Gbps |
| Switching Bandwidth (full-duplex capacity) | 68 Gbps |
| Flash memory | 128 MB |
| Memory DRAM | 512 MB |
| Max VLANs | 1023 |
| VLAN IDs | 4000 |
| Maximum transmission unit (MTU) | Up to 9000 bytes |
| Jumbo frames | 9198 bytes |
| Forwarding rate 64 Byte Packet | 50.6 mpps |
| Dimensions (H x W x D) |
1.75 x 10.6 x 9.4 in (4.44 x 26.9 x 23.8 cm) |
| Weight | 5.1 lb (2.31 Kg) |
| Operating* temperature up to 5000 ft (1524 m) | -5°C to +45°C (+23°F to +113°F) |
| Operating* temperature up to 10,000 ft (3048 m) | -5°C to +45°C (+23°F to +113°F) |
| Storage temperature up to 15,000 ft (4572 m) | -25°C to +70°C (-13°F to +158°F) |
| Operating altitude | Up to 3048 m (Up to 10,000 ft) |
| Storage altitude | Up to 4000 m (Up to 15,000 ft) |
| Operating relative humidity | 5% to 95% noncondensing |
| Storage relative humidity | 5% to 95% noncondensing |
| MTBF | 528,480 |
| Management |
● BRIDGE-MIB ● CISCO-CABLE-DIAG-MIB ● CISCO-CDP-MIB ● CISCO-CLUSTER-MIB ● CISCO-CONFIG-COPY-MIB ● CISCO-CONFIG-MAN-MIB ● CISCO-DHCP-SNOOPING-MIB ● CISCO-ENTITY-VENDORTYPE-OID-MIB ● CISCO-ENVMON-MIB ● CISCO-ERR-DISABLE-MIB ● CISCO-FLASH-MIB ● CISCO-FTP-CLIENT-MIB ● CISCO-IGMP-FILTER-MIB ● CISCO-IMAGE-MIB ● CISCO-IP-STAT-MIB ● CISCO-LAG-MIB ● CISCO-MAC-NOTIFICATION-MIB ● CISCO-MEMORY-POOL-MIB ● CISCO-PAGP-MIB ● CISCO-PING-MIB ● CISCO-POE-EXTENSIONS-MIB ● CISCO-PORT-QOS-MIB ● CISCO-PORT-SECURITY-MIB ● CISCO-PORT-STORM-CONTROL-MIB ● CISCO-PRODUCTS-MIB ● CISCO-PROCESS-MIB ● CISCO-RTTMON-MIB ● CISCO-SMI-MIB ● CISCO-STP-EXTENSIONS-MIB ● CISCO-SYSLOG-MIB ● CISCO-TC-MIB ● CISCO-TCP-MIB ● CISCO-UDLDP-MIB ● CISCO-VLAN-IFTABLE ● RELATIONSHIP-MIB ● CISCO-VLAN-MEMBERSHIP-MIB ● CISCO-VTP-MIB ● ENTITY-MIB ● ETHERLIKE-MIB ● IEEE8021-PAE-MIB ● IEEE8023-LAG-MIB ● IF-MIB ● INET-ADDRESS-MIB ● OLD-CISCO-CHASSIS-MIB ● OLD-CISCO-FLASH-MIB ● OLD-CISCO-INTERFACES-MIB ● OLD-CISCO-IP-MIB ● OLD-CISCO-SYS-MIB ● OLD-CISCO-TCP-MIB ● OLD-CISCO-TS-MIB ● RFC1213-MIB ● RMON-MIB ● RMON2-MIB ● SNMP-FRAMEWORK-MIB ● SNMP-MPD-MIB ● SNMP-NOTIFICATION-MIB ● SNMP-TARGET-MIB ● SNMPv2-MIB ● TCP-MIB ● UDP-MIB ● ePM MIB |
| Standards |
● IEEE 802.1D Spanning Tree Protocol ● IEEE 802.1p CoS Prioritization ● IEEE 802.1Q VLAN ● IEEE 802.1s ● IEEE 802.1w ● IEEE 802.1x ● IEEE 802.1AB (LLDP) ● IEEE 802.3ad ● IEEE 802.3af ● IEEE 802.3ah ● IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports ● IEEE 802.3 10BASE-T specification ● IEEE 802.3u 100BASE-TX specification ● IEEE 802.3ab 1000BASE-T specification ● IEEE 802.3z 1000BASE-X specification ● 100BASE-BX (SFP) ● 100BASE-FX (SFP) ● 100BASE-LX (SFP) ● 1000BASE-BX (SFP) ● 1000BASE-SX (SFP) ● 1000BASE-LX/LH (SFP) ● 1000BASE-ZX (SFP) ● 1000BASE-CWDM SFP 1470 nm ● 1000BASE-CWDM SFP 1490 nm ● 1000BASE-CWDM SFP 1510 nm ● 1000BASE-CWDM SFP 1530 nm ● 1000BASE-CWDM SFP 1550 nm ● 1000BASE-CWDM SFP 1570 nm ● 1000BASE-CWDM SFP 1590 nm ● 1000BASE-CWDM SFP 1610 nm ● RMON I and II standards ● SNMPv1, SNMPv2c, and SNMPv3 |
| RFC compliance |
● RFC 768: UDP ● RFC 783: TFTP ● RFC 791: IP ● RFC 792: ICMP ● RFC 793: TCP ● RFC 826: ARP ● RFC 854: Telnet ● RFC 951: Bootstrap Protocol ● RFC 1542: BOOTP Extensions ● RFC 959: FTP ● RFC 1058: RIP Routing ● RFC 1112: IP Multicast and IGMP ● RFC 1157: SNMPv1 ● RFC 1166: IP Addresses ● RFC 1253: OSPF Routing ● RFC 1256: ICMP Router Discovery ● RFC 1305: NTP ● RFC 1492: TACACS+ ● RFC 1493: Bridge MIB ● RFC 1542: Bootstrap Protocol ● RFC 1583: OSPFv2 ● RFC 1643: Ethernet Interface MIB ● RFC 1723: RIPv2 Routing ● RFC 1757: RMON ● RFC 1812: IP Routing ● RFC 1901: SNMPv2C ● RFC 1902-1907: SNMPv2 ● RFC 1981: MTU Path Discovery IPv6 ● FRC 2068: HTTP ● RFC 2080: RIP for IPv6 ● RFC 2131: DHCP ● RFC 2138: RADIUS ● RFC 2233: IF MIB ● RFC 2236: IP Multicast ● RFC 2328: OSPFv2 ● RFC 2273-2275: SNMPv3 ● RFC 2373: IPv6 Aggregatable Addrs ● RFC 2453: RIPv2 Routing ● RFC 2460: IPv6 protocol ● RFC 2461: IPv6 Neighbor Discovery ● RFC 2462: IPv6 Autoconfiguration ● RFC 2463: ICMP IPv6 ● RFC 2474: DiffServ Precedence ● RFC 2597: Assured Forwarding ● RFC 2598: Expedited Forwarding ● RFC 2571: SNMP Management ● RFC 2740: OSPF for IPv6 ● RFC 3046: DHCP Relay Agent Information Option ● RFC 3101, 1587: NSSAs ● RFC 3376: IGMPv3 ● RFC 3580: 802.1x RADIUS |
| Safety standards |
● UL 60950-1 ● CAN/CSA 22.2 No. 60950-1 ● EN 60950-1 ● IEC 60950-1 ● CE Marking ● GB 4943 ● IEC 60825
|
| Electromagnetic emissions certifications |
● FCC Part 15, CFR 47, Class A, North America ● EN/IEC 61000-4-5 ● EN 55022 (CISPR22) and EN 55024 (CISPR24), CE marking, European Union ● AS/NZS, Class A, CISPR22:2004 or EN55022, Australia and New Zealand ● VCCI Class A, V-3/2007.04, Japan ● KCC (Formerly MIC, GB17625.1-1998) Class A, KN24/KN22, Korea ● ANATEL, Brazil ● CCC, China ● GOST, Russia |
| Environmental | Reduction of Hazardous Substances (ROHS) 6 |
| Telco | Common Language Equipment Identifier (CLEI) code |
FAQ
1. Where do your products come from?
All of our products are from Cisco/Huawei distribution , Cisco/Huawei partner directly. We are Cisco partner at local, with cisco verified certification.
2. If all equioments I can buy service from local cisco ?
For all equipments you can buy service from local, because our goods are smart net free, all with clean serial number.
3. How to ship the goods?
Lonrise work with DHL,FEDEX,UPS and TNT. Your order will be dispatched by express delivery door to door.
4. What’s your payment term?
We always accept 10% advance payment. For long term cooperation, we can consider to apply credit accordingly.
