Product Details:
|
Branch: | CISCO | Part Number: | WS-C2960XR-48FPS-I |
---|---|---|---|
Type: | Ethernet Switch | Ports: | 48 X 10/100/1000 (PoE+) + 4 X 1G SFP+ |
RAM And Flash Memory: | 512MB And 128MB | Ethernet Technology: | Gigabit Ethernet |
High Light: | optical ethernet switch,poe ethernet switch |

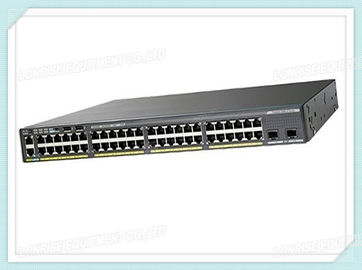

Cisco Switch WS-C2960XR-48FPS-I Catalyst 2960-XR 48 GigE PoE 740W. 4 x 1G SFP. IP Lite
Device Type | Switch - 48 ports - L3 - Managed - stackable |
Enclosure Type | Desktop, rack-mountable 1U |
Subtype | Gigabit Ethernet |
Ports | 48 x 10/100/1000 (PoE+) + 4 x 1G SFP+ |
Performance | Switching capacity:216 Gbps ¦ Forwarding performance: 130.9 Mpps |
Power Over Ethernet (PoE) | PoE+ |
Jumbo Frame Support | 9198 bytes |
Routing Protocol | HSRP, OSPF, PIM-DM, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng, VRRP |
Remote Management Protocol | CLI, HTTP, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2, SNMP 2c, SNMP 3, SSH, Telnet, TFTP |
Features | Access Control List (ACL) support, ARP support, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Broadcast Storm Control, Cisco EnergyWise technology, Cisco Fast EtherChannel, Cisco FlexStack Plus, Class of Service (CoS), DHCP snooping, Dynamic ARP Inspection (DAI), Dynamic Trunking Protocol (DTP) support, Energy Efficient Ethernet, Hot Standby Router Protocol (HSRP) support, IGMP snooping, Intrusion Detection System (IDS), IPv4 support, IPv6 support, Jumbo Frames support, Layer 2 switching, Layer 3 load balancing, Link Aggregation Control Protocol (LACP), MAC Address Notification, MLD snooping, Multicast Storm Control, Multicast VLAN Registration (MVR), Multiple Spanning Tree Protocol (MSTP) support, NetFlow, Per-VLAN Rapid Spanning Tree (PVRST), PoE+, Port Aggregation Protocol (PAgP) support, Power over Ethernet (PoE), Quality of Service (QoS), RADIUS support, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Rapid Spanning Tree Protocol (RSTP) support, Remote Switch Port Analyzer (RSPAN), Shaped Round Robin (SRR), SSH support, Strict Priority Queuing (SPQ), Trivial File Transfer Protocol (TFTP) support, Uni-Directional Link Detection (UDLD), Unicast Storm Control, VLAN support) |
General | |
Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, |
Device Type | Switch - 48 ports - L3 - Managed - stackable |
Enclosure Type | Desktop, rack-mountable 1U |
Flash Memory | 128 MB |
Performance | Switching capacity: 216 Gbps ¦ Forwarding performance: 130.9 Mpps |
Ram | 512 MB |
Remote Management Protocol | CLI, HTTP, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2, SNMP 2c, SNMP 3, SSH, Telnet, TFTP |
Status Indicators | Link/activity, PoE, Port duplex mode, Port status, Port transmission speed, RPS (Redundant Power Supply), System |
Dimensions & Weight | |
Depth | 40.8 cm |
Height | 4.45 cm |
Weight | 6.6 kg |
Width | 44.5 cm |
Environmental Parameters | |
Humidity Range Operating | 10 - 95% (non-condensing) |
Humidity Range Storage | 10 - 95% (non-condensing) |
Max Operating Temperature | 45 °C |
Max Storage Temperature | 70 °C |
Min Operating Temperature | -5 °C |
Min Storage Temperature | -25 °C |
Expansion / Connectivity | |
Expansion Slots | 1 (total) / 1 (free) x Stacking Module |
Interfaces | 48 x 1000Base-T 10Base-T/100Base-TX/1000Base-T - RJ-45 - RJ-45 - 24 ports (PoE+) / 48 ports (PoE) - 30 W ¦ 1 x console SFP (mini-GBIC) - RJ-45 ¦ 1 x mini-USB - Type B - management ¦ 2 x USB - Type A ¦ 1 x 1000Base-TX - RJ-45 - management ¦ 4 x - SFP - uplink |
Manufacturer Warranty | |
Service Support |
Limited warranty - advance parts replacement - lifetime - response time: next business day ¦ Technical support - consulting - 1Year |
Miscellaneous | |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, |
Mtbf | 230,860 hours |
