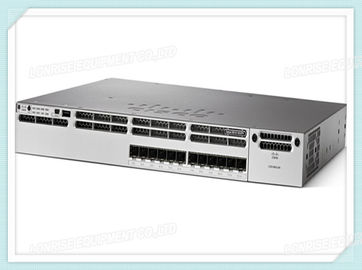

Cisco WS-C3850-12XS-E Catalyst 3850 12 Port 10G Fiber Switch IP Services

Large Image : Cisco WS-C3850-12XS-E Catalyst 3850 12 Port 10G Fiber Switch IP Services

Product Details:

Place of Origin:	CHINA
Brand Name:	Cisco
Certification:	CE
Model Number:	WS-C3850-12XS-E

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Negotiable
Packaging Details:	NEW IN BOX
Delivery Time:	1~2 days
Payment Terms:	T/T, Western Union, Paypal, Alipay, Wechat
Supply Ability:	50 units per month

Contact Now

Cisco WS-C3850-12XS-E Catalyst 3850 12 Port 10G Fiber Switch IP Services

Description

Brand:	Cisco	Model:	WS-C3850-12XS-E
Ports:	12 X 10/100/1000 10G SFP+ Optical Ports	DRAM:	4 GB
Flash Memory:	4 GB
High Light:	optical ethernet switch , poe ethernet switch

Cisco WS-C3850-12XS-E Catalyst 3850 12Port 10G Fiber Switch IP Services

Overview

The Cisco Catalyst 3850 Series Switches are the next generation of enterprise-class, stackable, access layer switches. They provide full convergence between wired and wireless networks on a single platform. This convergence is built on the resilience of the 480 Gbps Cisco StackWise and Cisco StackPower technologies.

Specifications

Cisco Catalyst 3850-12XS-E - switch - 12ports - Managed - desktop, rack-mountable
Device Type	Switch - 12 ports - Managed - stackable
Enclosure Type	Desktop, rack-mountable 1U
Subtype	Gigabit Ethernet
Ports	12x1 Gigabit / 10 Gigabit SFP+
Power Over Ethernet (PoE)	No
Performance	Switching capacity: 320Gbps ¦ Forwarding performance: 227 Mpps
Features	Layer 3 switching, ARP support, trunking, VLAN support, IGMP snooping, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support,

WS-C3850-12XS-E Extended Specification

General
Authentication Method	Kerberos, RADIUS, Secure Shell (SSH), TACACS+
Compliant Standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3u, IEEE 802.3x, IEEE 802.3
Device Type	Switch - 12 ports - Managed - stackable
Enclosure Type	Desktop, rack-mountable 1U
Flash Memory	2 GB
Mac Address Table Size	32000 entries
Performance	Switching capacity: 320Gbps ¦ Forwarding performance: 227 Mpps
Ram	4 GB
Remote Management Protocol	CLI, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet
Routing Protocol	BGP-4, EIGRP, EIGRP for IPv6, IGMP, IGMPv2, IGMPv3, IS-IS, MLD, MLDv2, OSPF, OSPFv3, PIM-DM, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng
Status Indicators	Active, Port duplex mode, Port transmission speed, Power, Status, System

Dimensions & Weight
Depth	44.8 cm
Height	4.4 cm
Weight	6.5 kg
Width	44.5 cm
Environmental Parameters
Humidity Range Operating	10 - 95% (non-condensing)
Max Operating Temperature	113 °F
Max Storage Temperature	158°F
Min Operating Temperature	23°F
Min Storage Temperature	-40 °F
