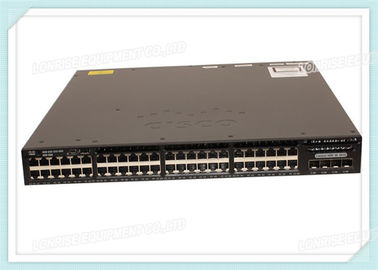

Product Details:
|
Part Number: | WS-C3650-48TS-L | Brand: | CISCO |
---|---|---|---|
Enclosure Type: | Rack-mountable - 1U | Uplink Interfaces: | 4 X 1G Uplinks |
Ports: | 48 X 10/100/1000 POE+ Ethernet Ports | Stack Bandwidth: | 160 Gpbs |
Feature Set: | IP Base | RAM: | 4 GB |
High Light: | poe ethernet switch,fiber optic network switch |
Device Type | Switch - 48 ports - Managed - stackable |
Enclosure Type | Desktop, rack-mountable 1U |
Subtype | Gigabit Ethernet |
Ports | 48 x 10/100/1000 + 4 x SFP |
Performance | Switching capacity: 176 Gbps ¦ Forwarding performance: 130.95 Mpps |
Features | Layer 2 switching, ARP support, trunking, VLAN support, IGMP snooping, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, |
WS-C3650-48TS-L Extended Specification
General | |
Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at |
Device Type | Switch - 48 ports - Managed - stackable |
Enclosure Type | Desktop, rack-mountable 1U |
Flash Memory | 2 GB |
Mac Address Table Size | 32000 entries |
Performance | Switching capacity: 176 Gbps ¦ Forwarding performance: 130.95 Mpps |
Ram | 4 GB |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI |
Status Indicators | Port transmission speed, port duplex mode, system, active, status |
Dimensions & Weight | |
Depth | 44.8 cm |
Height | 4.4 cm |
Weight | 7.21 kg |
Width | 44.5 cm |
Environmental Parameters | |
Humidity Range Operating | 5 - 96% (non-condensing) |
Max Operating Temperature | 45 °C |
Max Storage Temperature | 70 °C |
Min Operating Temperature | -5 °C |
Min Storage Temperature | -40 °C |
Expansion / Connectivity | |
Expansion Slots | 1 (total) / 1 (free) x Stacking Module |
Interfaces | 48 x 1000Base-T - RJ-45 ¦ 1 x USB - Type A ¦ 1 x serial (console) - RJ-45 - management ¦ 1 x management (Gigabit LAN) - RJ-45 - management ¦ 1 x management (mini-USB) - Type B - management ¦ 4 x 1000Base-X - SFP - uplink |
Manufacturer Warranty | |
Service Support | Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - phone consulting - 90 days |
Miscellaneous | |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at |
Mtbf | 527,580 hours |
Rack Mounting Kit | Included |
