WAN Access Cisco SPA Card , Hwic-2t Wan High Speed Interface Card

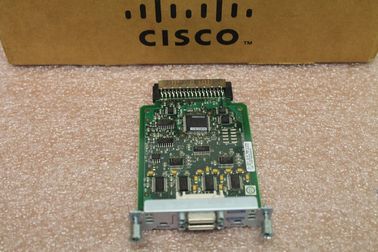

Large Image : WAN Access Cisco SPA Card , Hwic-2t Wan High Speed Interface Card

Product Details:

Place of Origin:	USA
Brand Name:	Cisco
Certification:	CE
Model Number:	HWIC-2T

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiatable
Packaging Details:	NEW IN BOX
Delivery Time:	In 1~2 days
Payment Terms:	T/T, Paypal, West union
Supply Ability:	100 per month

Contact Now

WAN Access Cisco SPA Card , Hwic-2t Wan High Speed Interface Card

Description

Brand:

Cisco

Parts Number:

HWIC-2T

Functionality:

WAN Interface

MPN:

HWIC-2T

High Light:

cisco router switch module

cisco service module

CISCO HWIC-2T= WAN INTERFACE CARD *NEW IN BOX*

1. Important applications:

• WAN access and aggregation

• Legacy protocol transport

• Dial access server

WAN Access and Aggregation

Serial interfaces can be used to provide WAN access for remote sites. With support for serial speeds up to 8 Mbps per port, the 2-port serial HWIC is ideal for low- and medium-density WAN aggregation (Figure 2).

The HWIC-1DSU-T1 also offers an integrated CSU/DSU, simplifying configuration and management. Integration allows management of the router and CSU/DSU as a single SNMP entity while also providing detailed troubleshooting capabilities. Troubleshooting features include self-test, loopbacks, CSU/DSU reset, alarm counters, and T1 statistics.

2. HWIC Signaling and Telecom Specifications


Specification	HWIC-1DSU-T1	HWIC-1T	HWIC-2T	HWIC-2A/S
Synchronous Support	Yes	Yes	Yes	Yes
Synchronous Maximum Speed (Per Port)	1.544 Mbps	8 Mbps	8 Mbps	128 kbps
Asynchronous Support	No	Yes	Yes	Yes
Asynchronous Maximum Speed (Per Port)	-	115.2 kbps	115.2 kbps	115.2 kbps
Bisync Support	No	Yes	Yes	Yes
Serial Protocols	-	EIA-232, EIA-449, EIA-530, EIA-530A, V.35, and X.21	EIA-232, EIA-449, EIA-530, EIA-530A, V.35, and X.21	EIA-232, EIA-449, EIA-530, EIA-530A, V.35, and X.21
Network Clock Synchronization	Yes	Yes	Yes	Yes
NEBS	Type 1/3	Type 2/4	Type 2/4	Type 2/4
TelecommPTT	• TIA-968-A • Industry Canada CS-03 Part II • JATE Digital • ID0002 • HK2017 • NEBS	• TBR1 and 2 • JATE Digital • NEBS	• TBR1 and 2 • JATE Digital • NEBS	• TBR1 and 2 • JATE Digital • NEBS

3. Homologation Specifications for HWIC-2T:


Specification	Data
Safety Approvals	• UL 60950 (United States) • CAN/CSA 22.2, CSA60950 (Canada) • GB 4943 (China) • AS/NZS 60950 (Australia/New Zealand) • EN60950 (Europe) • IEC 60950 (International)
Immunity	• EN300386 • CISPR24 • EN55024 • EN50082-1 • 61000-4-2/3/4/5/6/8/11
Emissions	• FCC Part 15 Class A • ICES-003 Class A • EN55022 Class A • CISPR22 Class A • AS/NZSCISPR22 Class A • VCCI Class A • EN 300386 • EN61000-3-2/3 • CNS13438
Physical Specifications	• Singlewide HWIC, no slot restrictions • Dimensions (H x W x D) 0.8 x 3.1 x 5.6 in. (2.1 x 7.9 x 14.2 cm)
Environmental Specifications	• Operating temperature: 32 to 104°F (0 to 40°C) • NEBS short-term operating temperature: 32 to 131°F (0 to 50°C) • Storage temperature: -4 to 149°F (-20 to 65°C) • Relative humidity: 10 to 90%, noncondensin
